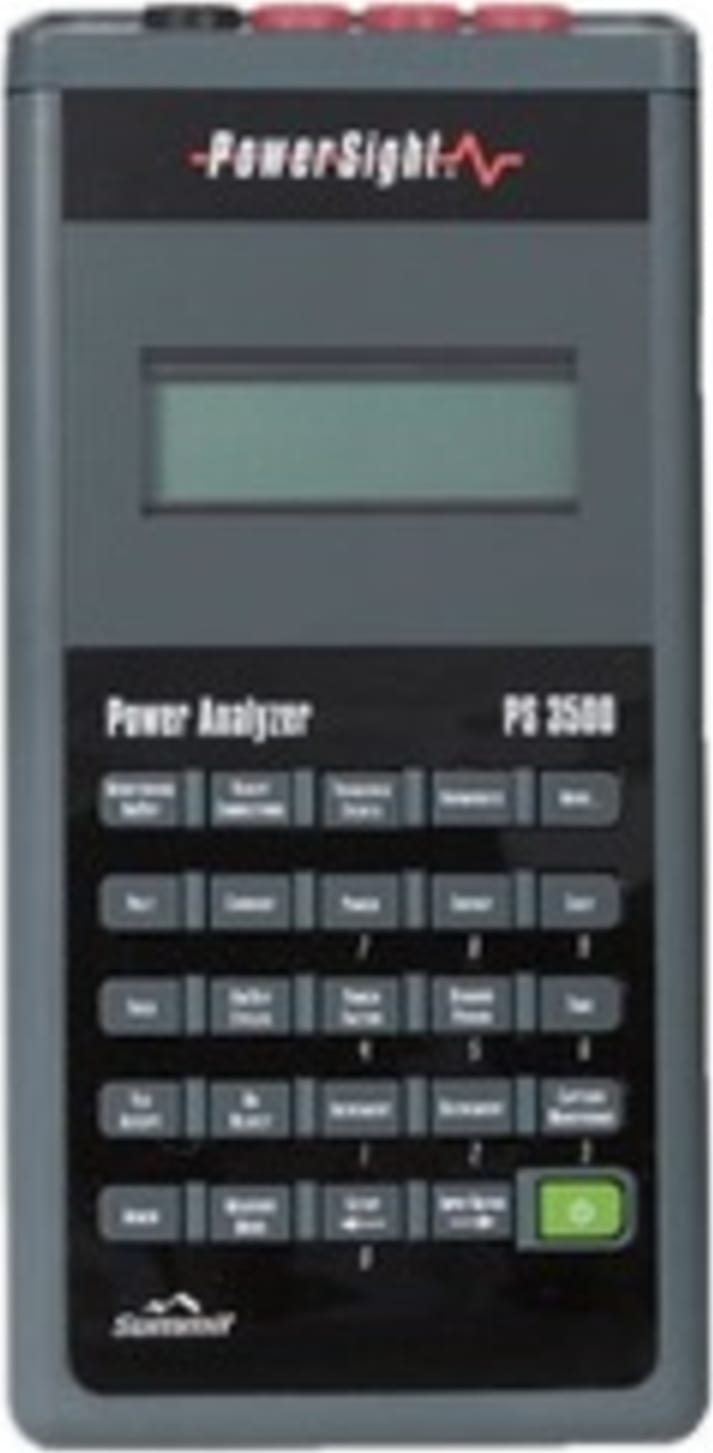

Summit Technology PS3500 Power Analyzer with Bluetooth and SD Memory Card Slot

Name: Summit Technology PS3500 Power Analyzer with Bluetooth and SD Memory Card Slot
Brand: Summit Technology
SKU: Summit TechnologyPS3500
Price: 2370.25 USD
Availability: InStock

0 reviews | Model: Summit Technology PS3500

Compare

PS3500 comes equipped with Deluxe Voltage leads, PowerSight Manager Software, AC-to-DC charging unit, and operating manual. Communications are via Bluetooth technology. Just add current probes and the carrying case of your choice to have a complete system.

12 Voltage Measurements
16 Current Measurements
True Power Factor
Displacement Power Factor
Phase lag angles
KW, KVA, KVAR (phase & total)
Delta & Wye configurations
DC volt, amps, power
Frequency
Harmonics (to 50th)
THD voltages & K-Factor
Crest Factor
KWH (Elapsed & Estimated)
Cost (Elapsed & Estimated)
Adjustable Utility Rates
Peak Demand Period
Basic Disturbance analysis
Logging intervals from 1 sec to 99 min.
Waveform Capture
Input Ratios
Duty and Power Cycles
Real Time Clock
SureStart

View Product Details

List Price: $2,495.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Summit Technology PS3500

Summit Technology CHG1 Plugs into standard European 50Hz outlet to supply 12VDC @...

Catalog: CHG1

(0)

In Stock!

Add to Cart

Summit Technology CAS3 Hard Shell Carrying Case Molded plastic case with positive...

Catalog: CAS3

(0)

In Stock!

Add to Cart

Summit Technology CASW Pelican Weather-Resistant Operating Case. Foam insert has...

Catalog: CASW

(0)

In Stock!

Add to Cart

Summit Technology DC600 DC/AC 600/400 amp Probe 5 to 400 amps AC/DC, 400 to 600 amps...

Catalog: DC600

(0)

In Stock!

Add to Cart

Summit Technology DFV Deluxe Fused Voltage Lead Set Set of 4 color coded barrel fused...

Catalog: DFV

(0)

In Stock!

Add to Cart

Summit Technology DFVupg Fused leads to insert into DXV set to make them DFV

Catalog: DFVupg

(0)

In Stock!

Add to Cart

Summit Technology DXV Set of 4 color coded safety leads, 7 feet long, with jumbo...

Catalog: DXV

(0)

In Stock!

Add to Cart

Summit Technology FAO Frequency Analysis Option Power-line spectrum analysis from 3kHz...

Catalog: FAO

(0)

In Stock!

Add to Cart

Summit Technology HA100 Clamp-on 100 amp Probe0.1 to 100 Arms AC. 2% +/- 2LSDs. Inside...

Catalog: HA100

(0)

In Stock!

Add to Cart

Summit Technology HA1000 Clamp-on 1000 amp Probe 1 to 1000 amps AC. 0.5%+/-2LSD s....

Catalog: HA1000

(0)

In Stock!

Add to Cart

Summit Technology HA5 Clamp-on 5 amp Probe 0.02 to 5 Arms AC. 2% /- 2LSDs. Inside...

Catalog: HA5

(0)

In Stock!

Add to Cart

Summit Technology LDC4 Line-to-DC Converter converts any line power of 120 to 600V to...

Catalog: LDC4

(0)

In Stock!

Add to Cart

Summit Technology STKS Hot sticks for use with the 15KVP. One set of sticks required...

Catalog: STKS

(0)

In Stock!

Add to Cart

Summit Technology 15KVP 15KV voltage probe for direct connection to 600 to 15kv rms AC...

Catalog: 15KVP

(0)

In Stock!

Add to Cart

Summit Technology 15KVPSet Set of 3 15KV voltage probes with hot sticks for direct...

Catalog: 15KVPSet

(0)

In Stock!

Add to Cart

Summit Technology 5KVP 5KV voltage probe for direct connection to 600 to 5kv rms AC or...

Catalog: 5KVP

(0)

In Stock!

Add to Cart

Summit Technology BTA PowerSight BTA Bluetooth USB Adapter

Catalog: BTA

(0)

In Stock!

Add to Cart

PS3500 Power Analyzer (with Bluetooth and SD memory card slot)

OUR MOST POPULAR ENERGY ANALYZER REINVENTED!
Get complete power/energy/cost analysis in a compact, rugged package. The PS3500 measures voltage, current, KW, KVA, KVAR, true power factor, displacement power factor, KWh, Hz, elapsed and estimated cost, duty cycle. Long term logging for up to months at a time. Manual waveform capture ability. Real time meter display of present values.
THE HANDS-ON CHOICE!
It's rubberized contoured case and rugged construction make the PS3500 ideal for field work. It's easy-to-use too. Clearly labeled buttons display related power measurements on a back-lit LCD window for quickly making spot measurements at panels and equipment.
SAFETY FIRST! CAT-IV Rated.
CAT IV is the most stringent safety rating for hand-held test equipment. It means that it can withstand a 10,000 V surge at a 600 V service so you can feel confident in the meter's safety wherever power studies are performed at 600 V or below.
MEASURES AND LOGS 140 PARAMETERS
Complete power/energy/cost analysis in a compact, rugged package. Measures voltage, current, KW, KVA, KVAR, true power factor, displacement power factor, energy in KWh, Hz and (optionally) total harmonic distortion THD. Manual waveform capture ability.
The PS3500 has 4 current and 3 voltage channels to measure all phases and neutral for single, two-phase, three-phase, split delta, 2PT/2CT, DC, 45-66 Hz, and 360-440 Hz applications as well as DC. Log minimums, maximums, averages, and present values. Individual phases and total.
SUCCESSFUL STUDIES!
Our patented SureStart feature automatically checks for wrong connections on three phase connections before you begin monitoring to ensure a successful power study every time. If there is a mis-connection SureStart will display the error in the meter window.
ACCURATE READINGS
Uses SureSense for automatic current probe identification to set the input of the PS3500 to match each current probe in use. This makes sure that the current probe readings are accurate and correct.
THE LONGEST LOGGING CAPACITY
Long term logging for up to months at a time. The meter’s operation is backed up by rechargeable batteries and has an option to power it directly from the voltage being monitored. Current probes that normally require batteries (flexible AC probes and DC probes) get their power from the PS3500. This guarantees that the PS3500 will log power as long as you need it . Unlike other loggers, it never goes into "sleep" mode. This guarantees that you will have a true view of all of the data when the job is done.
CLEAR DISPLAY FOR QUICK SPOT CHECKS
You can view voltage, current, true power, apparent power, and true power factor present values in the meter window- just like a multimeter!
SMART!
It comes with the latest Bluetooth technology to download data to your PC wirelessly. Plus a removable SD memory card slot allows you to store more power survey data and share the data with others.
What are the benefits of the SD card?
1) high data integrity, data is always saved – since data is always simultaneously logged to the meter’s memory AND the card if present
2) you can store more surveys – more survey data – up to 2GB
3) SD cards are inexpensive - carry several!
4) SD cards offer a method of sharing data
5) surveys can be archived on SD cards
6) SD cards are another method of downloading to a PC

With SD cards you could perform several studies in the field and save each survey separately to the card, and then later download several surveys to a PC. Or, for long term monitoring, you can pause the monitor, swap the card with a fresh one, and take the other card back to a PC later. The benefit here is that you don't need to always carry a PC to get data, or you can send someone else to swap the card - they won't need a PC either!
What are the benefits of Bluetooth wireless communications?
1) no need to be tethered to a PC by a cable any more
2) no need to carry a communications cable (cables can get lost too!)
3) remote control from a few feet away – a cool feature that enhances safety by keeping you a distance away from high voltages
4) faster downloads than compared to serial cable

Comparison Chart

	Meter Display Values	RMS Volts and Amps	DC VOlts and Amps	50Hz, 60Hz and 400Hz	Energy Demand and Power	Harmonics and THD	Sag and Swell Events	Transients (Impulses)	High Freq. Noise	Motor Diagnostics
PS4500/ PS4000	•	•	•	•	•	•	•	•
PS3500/ PS3000	•	•	•	•	•	•
PS2500/ PS2000	•	•	•	•	•

Meter Selection Guide (pdf)

PowerSight Applications Library
Solutions to power studies, examples of measurements and reports. Click on an image to view it at its maximum resolution.

RMS Voltage Logs
All PowerSight models are excellent tools for logging voltage, current, and power parameters. Log graphs of RMS values can be displayed on your PC with PSM software (supplied with every PowerSight) and pasted into a Word document with a mouse click. Note that PSM allows you to zoom, expand, export to Excel and annotate with labels to highlight events or behavior.
View real-time waveforms, harmonics, phasors in scope mode
The oscilloscope features in all PowerSight meters allow you to view voltage and current waveforms, see the harmonic spectrum on any phase and get phasor diagrams.
Harmonic Spectra
All PowerSight meters measure harmonics to the 50th harmonic. (Note: For the PS250 and PS2500 loggers harmonics measurement is an option.
Harmonic table of magnitudes and phase angles
All PowerSight meters measure harmonics to the 50th harmonic and can display both the harmonic spectra for voltage or current, and a harmonic magnitude and phase angle table. (Note: For the PS250 and PS2500 loggers harmonics measurement is an option)
Phasors
View phasor diagrams with any PowerSight model. Check connections and imbalance. Observe on a PC or PDA safely away from high voltages using Bluetooth communications with Bluetooth-enabled PowerSight meters.
Find the answer to your application in our library of power logs and events.
All PowerSight models are excellent tools for logging voltage, current, and power parameters. Log graphs of RMS values can be displayed on your PC with PSM software (supplied with every PowerSight) and pasted into a Word document with a mouse click. Note that PSM allows you to zoom, expand, export to Excel and annotate with labels to highlight events or behavior.
Power Direction
PowerSight meters can report direction of power flow, and whether power is being consumed or exported.
Power and Energy Studies - True Power Watts
All PowerSight models measure and record power (watts, VA, VAR, PF) and energy in KWh.
Power and Energy Studies - kWh Report
All PowerSight models measure and record power (watts, VA, VAR, PF) and energy in KWh.
Out of Harms Way! PowerSight in SCAS2 Case
Thanks go to Bruce Lonie of PowerCet (a consulting and training company) who sent us this excellent picture of a PowerSight monitoring power to large walk-in food coolers in a commercial kitchen. He cleverly used the soft case SCAS2 to hang the meter out of harms way, and in a safe way.
View Real-Time Meters Locally / Remotely.
The meter window in every PowerSight meter displays real time values just like a multimeter for spot checks and ensuring you have good signal connections. Additionally, the Remote Control function in PSM software mimicks the front panel on your your PC or Netbook so you can operate and control Bluetooth enabled PowerSight meters remotely. Thus from a safe distance, up to 25 feet away, you can view meter values, waveforms and more.
PowerSight Meters: Best For Safety - Compliance with NFPA 70E
Be Comfortable. Be Safe. PowerSight meters / analyzers with Bluetooth wireless communications allow you to: Remove protective gear in a safe area and get away from high voltages after installing probes. Remotely perform power monitoring and electrical testing (up to 25 feet away) via a PC or PDA.
Bluetooth for Safety via PC or PDA
Be safer, be more comfortable! Get relief from wearing PPE. After installing probes move to safe distance and remove hoods or visors and thick-fingered gloves. Use a PC, netbook, or PDA and communicate wirelessly to a Powersight via Bluetooth, up to 25 feet away. Perform set-up, download data, check connections etc. away from high voltages. PSM software for the PC allows remote operation via any PC or netbook equipped with Bluetooth.
