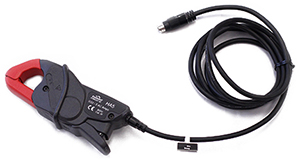

Summit Technology / PowerSight HA5 - High Accuracy Current Probe Clamp-on 5A

Name: Summit Technology / PowerSight HA5 - High Accuracy Current Probe Clamp-on 5A
Brand: Summit Technology
SKU: Summit TechnologyHA5
Price: 261.25 USD
Availability: InStock

0 reviews | Model: Summit Technology HA5

Compare

Clamp-on 5 amp Probe 0.02 to 5 Arms AC. 2% /- 2LSDs. Inside diameter of 0.8" (20mm). Outside dimensions of 5.25 x 2.06 x 1.35"

The compact size of the HA5 allows it to be used in very confined spaces
The light weight and special measurement range of the HA5 makes it a great choice for a second set of current measurement probes for your analyzer
Designed to monitor permanently mounted CTs (Current Transformers)
The range from 20 milliamps to 5 amps is a great choice for accurate high-resolution monitoring of small 3 phase loads

View Product Details

List Price: $275.00

Your Price: $261.25

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Summit Technology HA5 Clamp-on 5 amp Probe 0.02 to 5 Arms AC. 2% /- 2LSDs. Inside diameter ...	Summit Technology HA100 Clamp-on 100 amp Probe0.1 to 100 Arms AC. 2% +/- 2LSDs. Inside dia ...	Summit Technology HA-GFD 5ma to 1 amps AC 1% +/- 2ma and 1 to 200 amps AC 1% +/-0.2A, 4.5" ...	Summit Technology HA1000 Clamp-on 1000 amp Probe 1 to 1000 amps AC. 0.5%+/-2LSD s. Inside ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

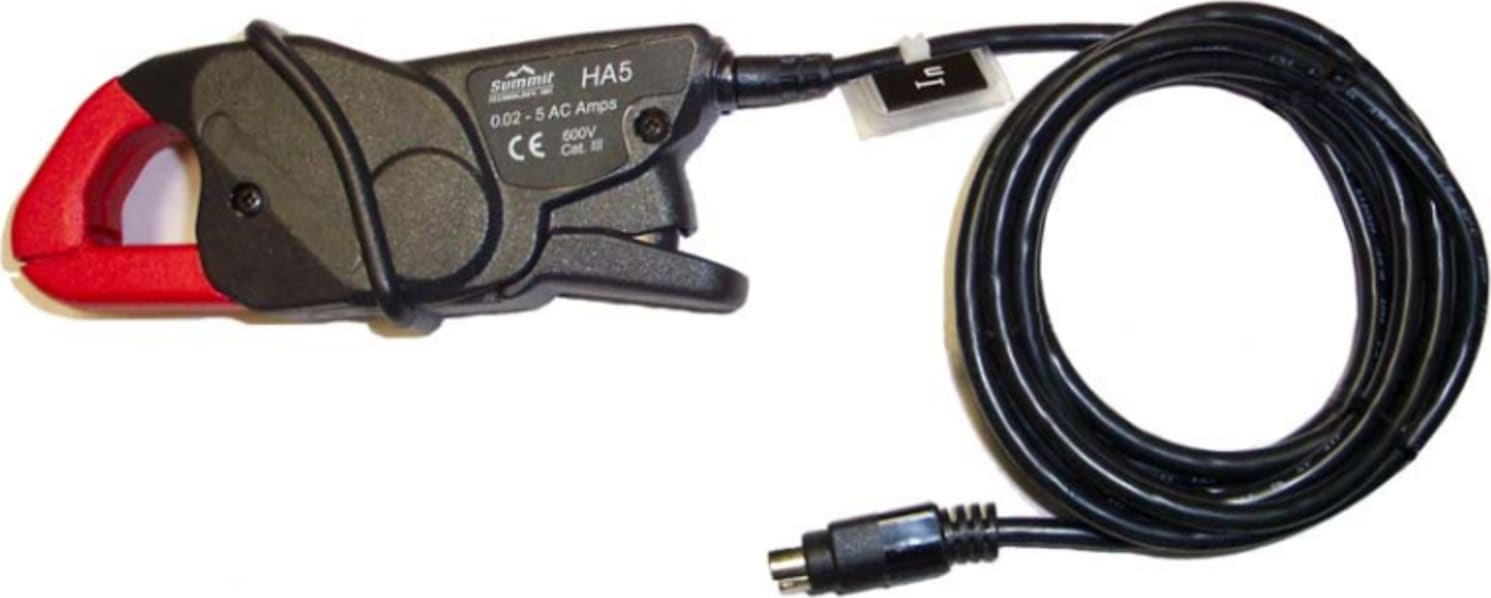

Summit Technology / PowerSight HA5 - High Accuracy Current Probe Clamp-on 5A

Measures from 0.02 ARMS to 5 ARMS AC in a small form factor
20 milliamp to 5 Amps AC Current measurement
+/- 2% of reading +/- 0.02 ARMS
Measuring very small loads

5 Amp High Accuracy Current Probe

The HA5 Current Probe is the best choice for measuring very small loads and the outputs of Current Transformer (CT) step-down circuits. HA5 Current Probe covers the measurement range from 20 milliamps to 5 amps, making it the best choice for measuring very small loads and the outputs of CT (Current Transformer) step-down circuits.

NOTE: For high accuracy non-intrusive testing of single phase loads, use the 120ADP accessory, for high accuracy of very small loads (down to 2 milliamps) use the HA-GFD

Measurement Range:	20 milliamps to 5 Amps AC
Accuracy/Linearity:	+/- 1% of reading +/- 0.002 amps over measurement range
Frequency Response:	+/- 1% from 50Hz to 3000Hz
Dimensions:
Inside diameter:	0.8 inch diameter
Outside dimensions:	5.25 x 2.1 x 1.35 inches
Cable length:	2 meters (6 feet).
Voltage Rating:	600V CAT III
Power Requirements:	no external power required

Test Equipment General Attributes
Product Height	8.00 IN
Product Length	14.00 IN
Product Width	10.00 IN
HTS/Schedule B Number	9030.90.8961
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	8.00 IN
Shipping Length	14.00 IN
Shipping Width	10.00 IN
