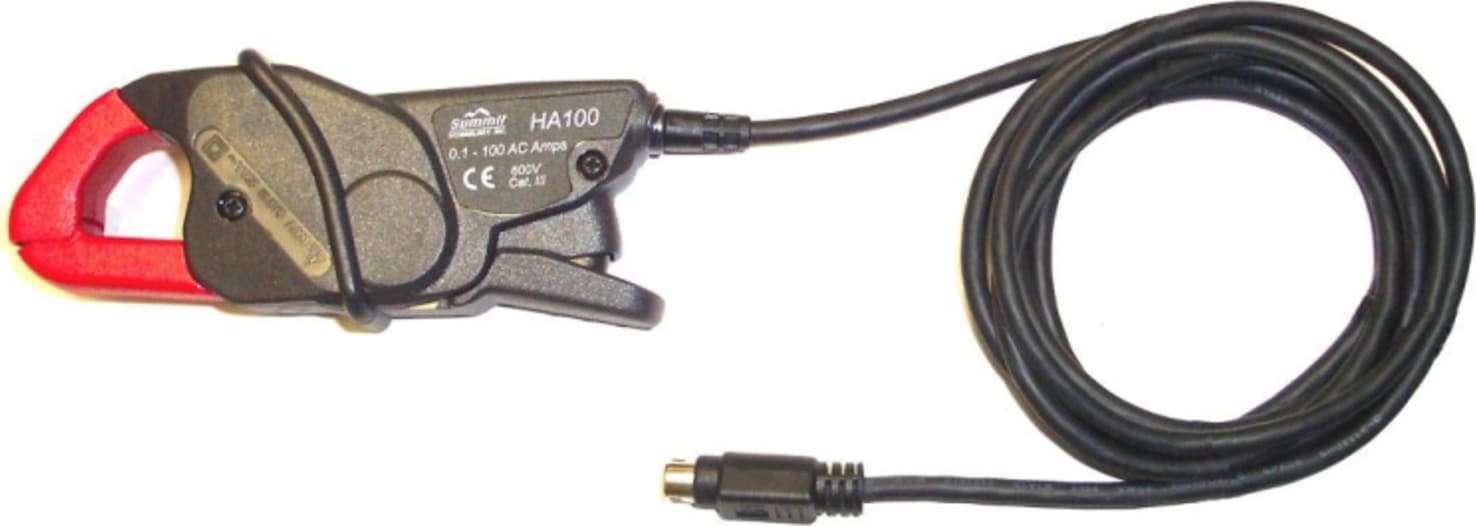

Summit Technology / PowerSight HA100 - High Accuracy Current Probe with Clamp-on 100A

Name: Summit Technology / PowerSight HA100 - High Accuracy Current Probe with Clamp-on 100A
Brand: Summit Technology
SKU: Summit TechnologyHA100
Price: 261.25 USD
Availability: InStock

0 reviews | Model: Summit Technology HA100

Compare

Clamp-on 100 amp Probe0.1 to 100 Arms AC. 2% +/- 2LSDs. Inside diameter of 0.8" (20mm). Outside dimensions of 5.25 x 2.06 x 1.35"

Measuring down to 0.1 amp, it has a measurement advantage over the HA1000 for very small loads
Its compact design allows it to work in many situations where the HA1000 cannot fit, such as in small electrical panels and boxes
A good choice for smaller currents, measuring between 0.1 and 100 amps AC
Measuring up to 100 amps, it greatly exceeds the measurement capacity of the HA5 when you need a compact probe becasue space is very limited

View Product Details

List Price: $275.00

Your Price: $261.25

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Summit Technology HA100 Clamp-on 100 amp Probe0.1 to 100 Arms AC. 2% +/- 2LSDs. Inside dia ...	Summit Technology HA5 Clamp-on 5 amp Probe 0.02 to 5 Arms AC. 2% /- 2LSDs. Inside diameter ...	Summit Technology HA-GFD 5ma to 1 amps AC 1% +/- 2ma and 1 to 200 amps AC 1% +/-0.2A, 4.5" ...	Summit Technology HA1000 Clamp-on 1000 amp Probe 1 to 1000 amps AC. 0.5%+/-2LSD s. Inside ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Summit Technology / PowerSight HA100 - High Accuracy Current Probe with Clamp-on 100A

0.1 to 100 Amps AC Current measurement
+/- 2% of reading +/- 0.2 ARMS
Measures from 0.1 ARMS to 100 ARMS AC in a small form factor
Achieves a special spot in this range of current measurements

High Accuracy 100 amp Current Probe

The HA100 is a compact clamp-on current probe for smaller loads where compact size is important. Its measurement range is from 0.1 to 100 amps AC and is very small which is ideal for locking inside a crowded electrical panel during monitoring. HA100 Current Probe is a compact clamp-on current probe for smaller loads where compact size is important. It measures from 0.1 to 100 amps AC.

Measurement Range:	0.1 to 100 amps AC
Accuracy/Linearity:	+/- 2% of reading +/- 0.2 A
Inside Diameter:	0.8 inch diameter
Outside dimensions:	5.25 x 2.1 x 1.35 inches
Cable length:	2 meters (6 feet).
Power Requirements:	No external power required
Voltage Rating:	600V CAT III (per IEC 61010)
