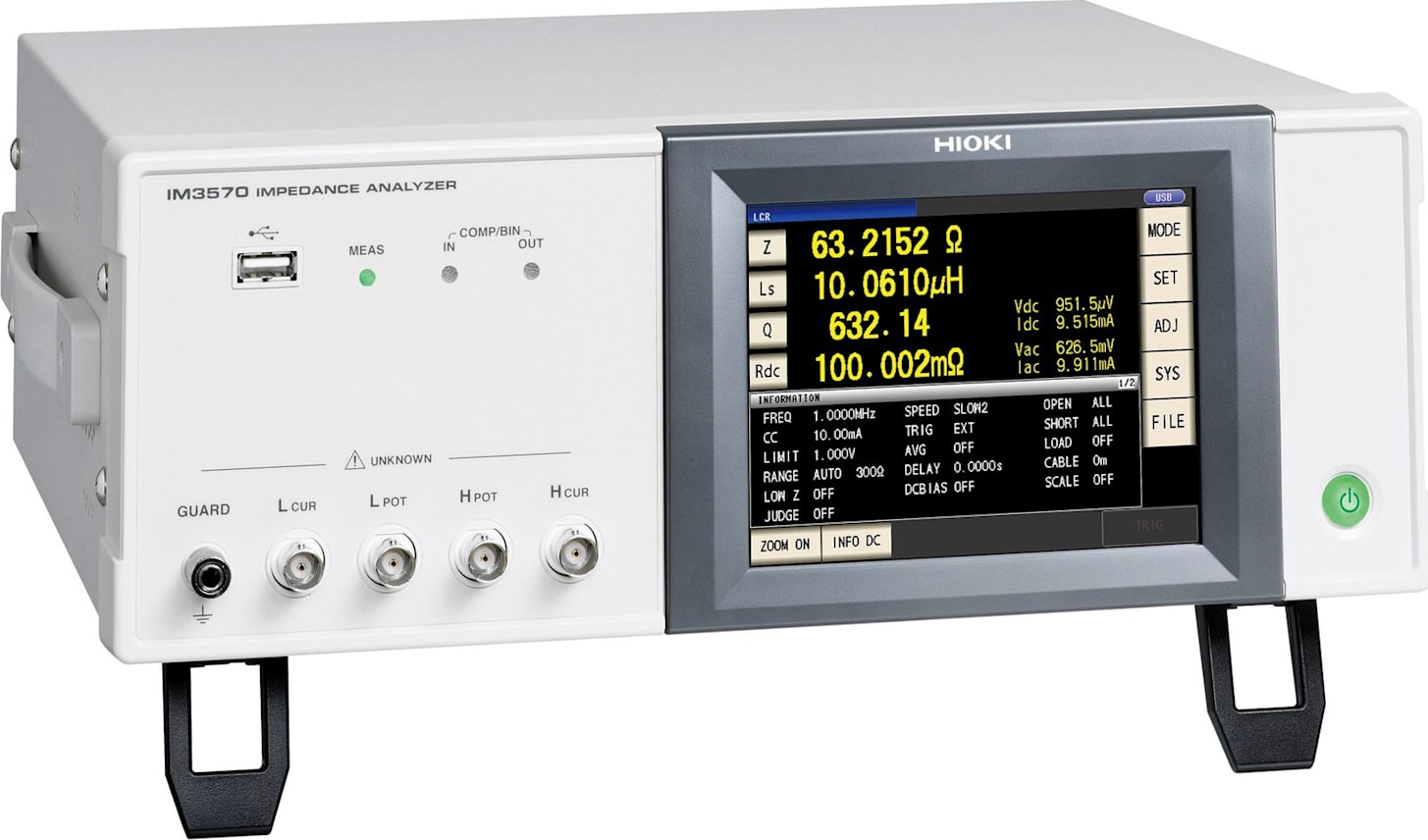

| Measurement modes |
LCR mode: Measurement under single set of conditions
Analyzer mode: Sweep through measurement frequencies and measurement levels (Measurement points: 1 to 801; sweep methods: normal sweep or segmented sweep; display: list display or graph display)
Continuous measurement mode: Continuous measurement under saved conditions (of which up to 32 sets can be saved) |
| Measurement Parameters |
Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tan õ), Q |
| Measurement ranges |
100 mΩ to 100 MΩ, 12 ranges (all parameters are defined using Z) |
| Basic accuracy |
Z: ±0.08% rdg
θ: ±0.05° |
| Measurement frequencies |
4 Hz to 5 MHz (in 10 mHz to 100 Hz steps) |
| Measurement signal levels |
Normal mode: V mode, CV mode: 5 mV to 5 Vrms (up to 1 MHz), 10 mV to 1 Vrms (1 MHz to 5 MHz), 1 mVrms steps
CC mode: 10 µA to 50 mArms (up to 1 MHz), 10 µA to 10 mArms (1 MHz to 5 MHz), 10 µArms steps
Low-impedance high-precision mode: V mode, CV mode: 5 mV to 1 Vrms (up to 100 kHz), 1 mVrms steps CC mode: 10 µA to 100 mArms (100 mΩ and 1 Ω ranges up to 100 kHz), 10 µArms steps |
| Output impedance |
Normal mode: 100 Ω
Low-impedance high-precision mode: 10 Ω |
| Display: |
5.7-inch color TFT, on/off switchable |
| No. of display digits setting |
Number of display digits can be set from 3 to 7; default setting: 6 digits |
| Measurement time |
0.5 ms (100 kHz, FAST, display off, representative value) |
| Measurement speeds |
FAST/MED/SLOW/SLOW2 |
| DC bias measurement |
Normal mode: 0 to 2.50 V DC (10 mV steps)
Low-impedance high-precision mode: 0 to 1.00 V DC (10 mV steps) |
| DC resistance measurement |
Normal mode: Measurement signal level of 100 mV to 2.5 V DC (10 mV steps)
Low-impedance high-precision mode: Measurement signal level of 100 mV to 1.00 V DC (10 mV steps) |
| Comparator |
LCR mode: Hi/IN/Lo for first and third values
Analyzer mode: Area judgment (Hi/IN/Lo for each point), peak judgment (Hi/IN/Lo for maximum and minimum frequencies and absolute values) |
| Memory function |
Storage of 32,000 data points in the instrument’s internal memory |
| Interfaces |
EXT I/O (handler)
RS-232C
GP-IB
USB (Hi-speed/Full-speed)
USB memory
LAN (10Base-T/100Base-TX) |
| Power supply |
90 to 264 V AC, 50/60 Hz, 150 VA max. |
| Dimensions and weight |
Approx. 330 (W) × 119 (H) × 307 (D) mm, approx. 5.8 kg |
