Hioki 9699 Test Fixture (SMD)

Name: Hioki 9699 Test Fixture (SMD)
Brand: Hioki
SKU: Hioki9699
Price: 1799.00 USD
Availability: InStock
Rating: 3.00 (1 reviews)

3 (1 Review) | Model: Hioki 9699

Compare

Test Fixture (SMD)

Test Fixture (SMD
For SMD there is a electrode on the bottom
Direct connection type
DC ~ 120MHz, sample size: width 1.0 ~ 4.0mm, the following height 1.5mm

View Product Details

Your Price: $1,799.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Hioki 9699 - LCR Test Fixture (SMD)

Electrode on the bottom
Width: 1.0 ~ 4.0mm
Height: 1.5mm

The HIOKI 9699 SMD TEST FIXTURE can be directly connected to the measurement terminals (UNKNOWN) of the HIOKI LCR HiTESTERs for testing an SMD component.

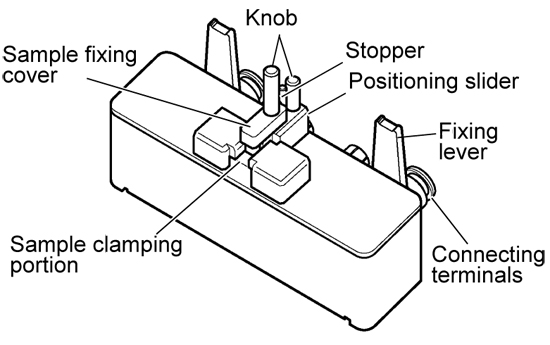

Parts Names

Connecting the Test Fixture

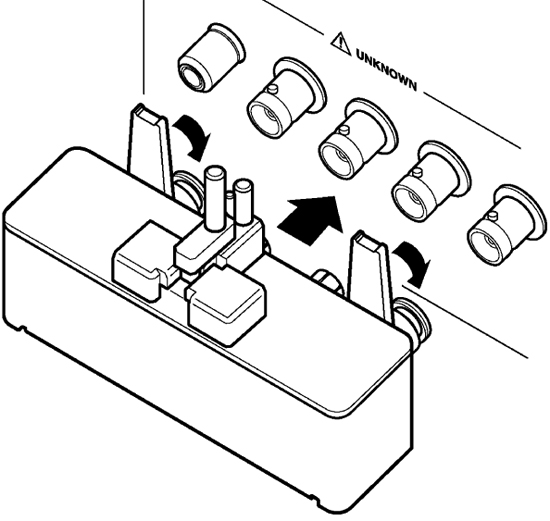

Plug the fixture into the measurement terminals (UNKNOWN) of the tester, with the product name up. Fasten it in place with the left and right fixing levers.

Fixing the Samples

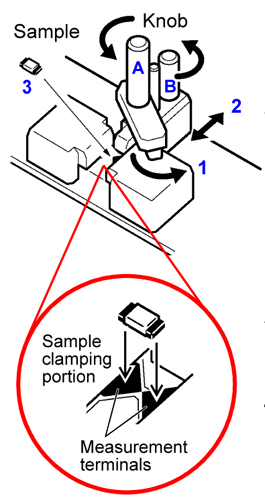

Rotate knob A to loosen it, and then open the sample fixing cover.
Adjust the depth of the sample clamping portion, if necessary. (Adjusting Procedure) Loosen knob B and move the slider forward or backward into position. Tighten knob B to fix the slider.
Place a sample in the center of the sample clamping portion.
Replace the sample fixing cover. Rotate knob A to fix the sample.

Measurement frequency range	DC to 120 MHz
Maximum apply voltage	±40 VDC
Dimensions of sample to be tested	Width: 1 mm to 4 mm (0.04” to 0.16”) Height: 1.5 mm (0.06”) or less
Residual resistance
Short-circuited	100 mΩ max. (at 100 Hz)
Floating capacitance between terminals	2 pF max. (at 1 MHz)
Dimensions and Mass	Approx.100.5W x 28.6H x 40D mm (3.96”W x 1.13”H x 1.57”D) (excluding protrusions),Approx.125 g (4.4 oz.)
Operating temperature and humidity range	0 to 40°C (32 to 104°F), 80%RH or less (with no condensation)
Storage temperature and humidity range	-10°C to 55°C (14 to 131°F), 80%RH or less (with no condensation)
Operating environment	Indoors, altitude up to 2000 m (6562-ft.)
Accessories	Instruction Manual, short bar
