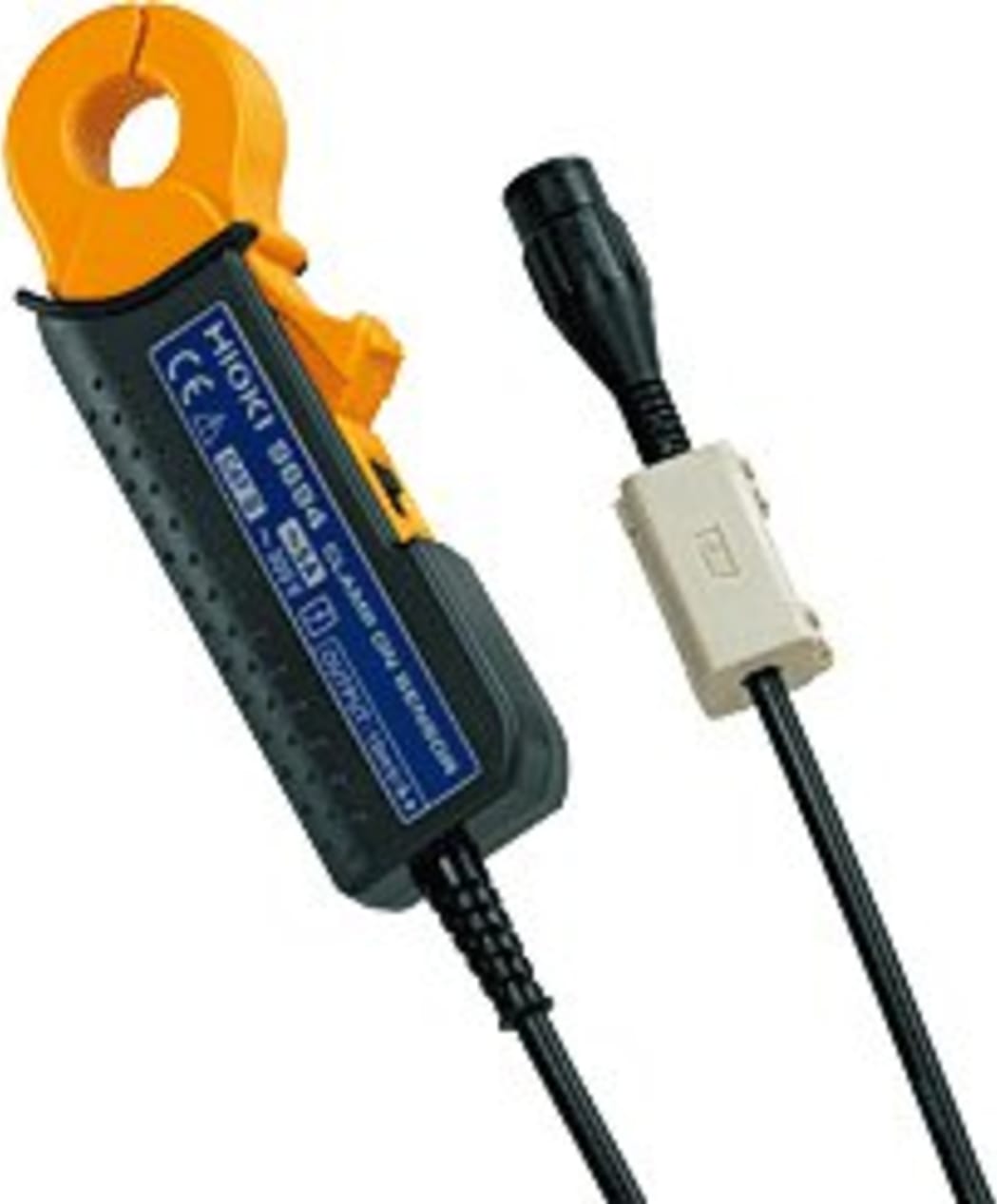

Hioki 9694 Clamp Sensor 5A AC

Name: Hioki 9694 Clamp Sensor 5A AC
Brand: Hioki
SKU: Hioki9694
Price: 432.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Model: Hioki 9694

Compare

Clamp Sensor 5A (3169, 3196, 3197)

Clamp Sensor 5A AC

View Product Details

Your Price: $432.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Hioki 9694 Clamp Sensor 5A (3169, 3196, 3197)	Hioki 9660 Clamp On Sensor 100A (3169, 3198, 3197)	Hioki 9669 Clamp Sensor 1000A (3169, 3196, 3197)	Hioki 9661 Clamp On Sensor 500A (3169, 3198, 3197)
Price
In Stock
Type (Current Clamp Adaptors	CT	CT	CT	CT
Maximum Current AC	5 A	100 A	1000 A	100 A
Maximum Conductor Size	0.59 IN	0.59 IN	3.15 IN	1.81 IN
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hioki 9694 Accessories

Choose a Category

Line Splitters

for the Hioki 9694

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Clamp Sensor 5A AC

Clamp-on Sensors for the POWER QUALITY ANALYZER 3196 and CLAMP ON POWER HiTESTER 3169
For input of 5A CT, select our Model 9694, This sensor is designed with a safety barrier to protect the user from being in direct contact with live conductors and completely meet all CE marking requirements.

Rated input current	5 A AC
Rated output current	50 mV AC
Accuracy (at 45 to 66 Hz)	Amplitude: ±0.3 % rdg. ±0.02 % f.s. , Full scale (f.s.) is the 3196 range value, Phase: ±2° or less
Frequency characteristics	66 Hz to 5 kHz (±1 % or less from accuracy)
Max. allowable input	continuous 50 A rms (45 to 66 Hz)
Max. circuit voltage	300 V AC rms (insulated wire)
Core jaw dia.	Ø15 mm(0.59 in)
Dimensions, mass	46 mm(1.81 in)W × 135 mm(5.31 in)H × 21 mm(0.83 in)D, 230 g (8.1 oz), cord length: 3 m(9.84 ft)

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	5 A
Maximum Conductor Size	0.59 IN
Test Equipment General Attributes
Product Weight	230 GRAMS (0.5071 LBS)
Product Height	5.31 IN
Product Length	0.83 IN
Product Width	1.81 IN
HTS/Schedule B Number	9030.33.3400
ECCN Number	3A992
Country of Origin	Japan
Shipping Height	2.25 IN
Shipping Length	9.30 IN
Shipping Width	5.50 IN
