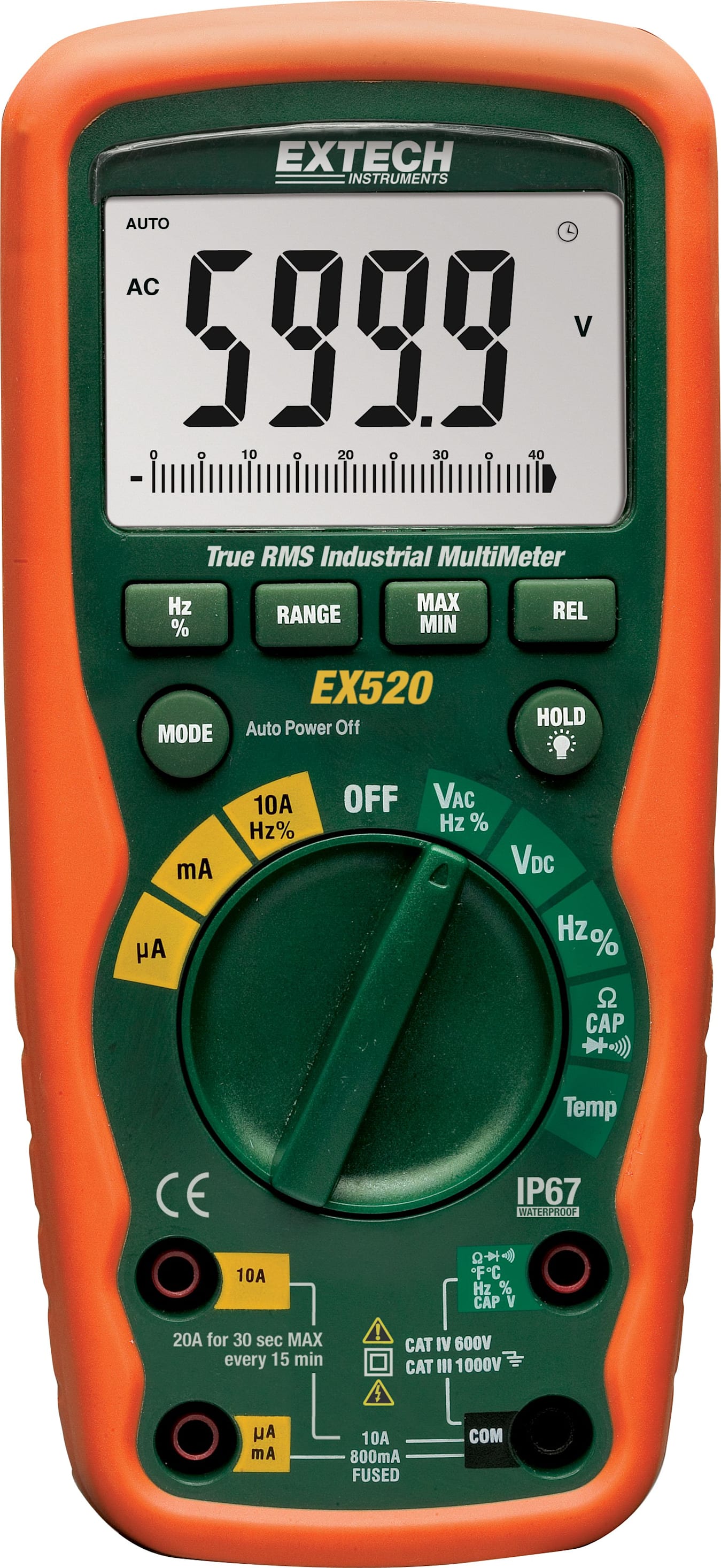

True RMS DMM with 6,000 count large LCD display, temperature function and waterproof housing
Designed to withstand harsh environments and usage, the meter's rugged, double-molded housing is IP67-rated (waterproof and dustproof) and drop-tested to 6 ft. The large, illuminated LCD displays 4-digit readout (to 6,000 counts). The EX520 offers various must-have measurements. The meter features 0.09 percent accuracy and a CAT IV 600-volt safety rating, protecting users even on outdoor wiring. Product includes a 3 year warranty, double molded test leads, 9V battery, magnetic hanging strap, temperature probe and a carrying case.
The Extech EX520 was designed specifically for industrial, plant maintenance, MRO, electrical and other professionals like you who demand a meter as tough as you. The waterproof and drop-proof EX520 Industrial MultiMeter delivers every multimeter function you need along with high accuracy and True RMS precision.
Features Overview
Designed to withstand harsh environments and usage, the meter's rugged, double-molded housing is IP67-rated (waterproof and dustproof) and drop-tested to 6 feet. The large, illuminated LCD displays a 4-digit readout (to 6,000 counts). The EX520 offers various must-have measurements, including capacitance, frequency (dual sensitivity for electrical and electronic applications), diode and continuity functions. The meter features 0.09 percent accuracy and a CAT IV 600-volt safety rating, protecting users even on outdoor wiring.
True RMS Compensates for Distortion from Electronic Devices
The Extech is a True RMS DMM. It can be very difficult to make accurate current and voltage readings in industrial and commercial applications when electronic devices are present. Fluorescent lights, motor drives, computer power supplies, and other electronic systems can distort the AC waveform, making it hard for averaging meters to get an accurate read. True RMS uses a more advanced formula to adjust for this kind of distortion. Powered by a 9-volt battery, the EX520 has Auto Power Off (with disabled) to conserve battery life.
Marine-Ready
As a waterproof tool, the EX520 is popular among marine technicians and boat mechanics who risk dropping the meter off a boat, pier or dock, into water. Since the meter is waterproof and floats, it's easy to recover and is ready to resume working once retrieved.
Other Functions
Users also enjoy convenient, one-button access to frequently used functions: Min/Max, Average, Hold, and Relative Hold as well as selectable auto-ranging or manual-ranging. To avoid fussing with selecting the right measurement range when working on a variety of components from small electronics to main electrical sources, the meter automatically adjusts with auto-ranging. Besides electrical and electronic diagnostics, you can also take temperature measurements using the Type K bead wire probe included.
