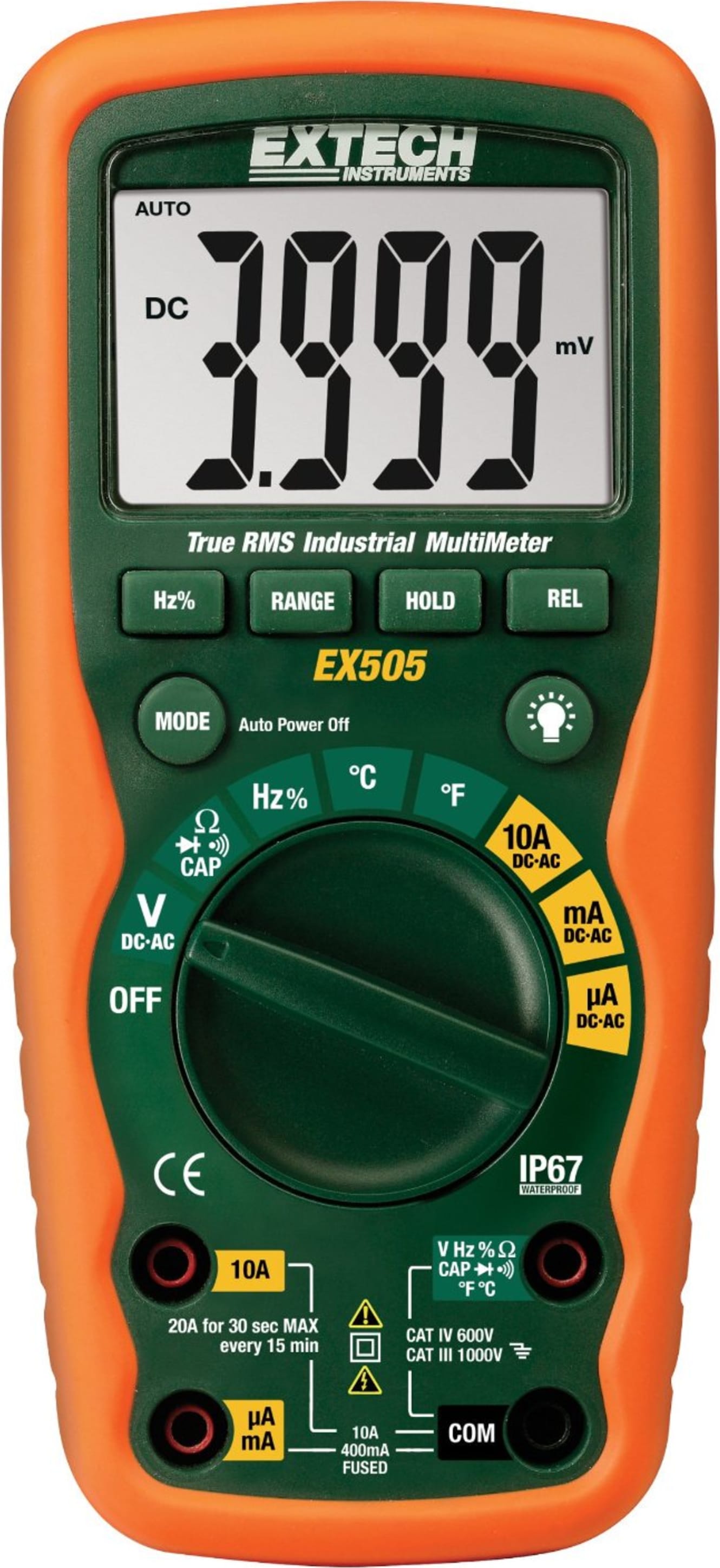

Extech EX505-NIST 11 Function Heavy Duty True RMS Industrial MultiMeter (4000 count) with NIST

Name: Extech EX505-NIST 11 Function Heavy Duty True RMS Industrial MultiMeter (4000 count) with NIST
Brand: Extech
SKU: ExtechEX505-NIST
Price: 177.99 USD
Availability: InStock

0 reviews | UPC: 793950395158 | Model: Extech EX505-NIST

Compare

Multimeter W/NIST, EX505- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

1000V input protection on all functions
Dual sensitivity frequency functions
Large backlit LCD
Diode open circuit voltage of 2.8V DC
Auto power off with disable feature
4,000 count
0.5% accuracy
Data Hold and Relative
10A max current

View Product Details

List Price: $199.99

Your Price: $177.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Extech EX505-NIST Multimeter W/NIST, EX505- PLEASE NOTE: If not in stock: NIST calibration ...	Extech EX530-NIST Multimeter W/NIST, EX530- PLEASE NOTE: If not in stock: NIST calibration ...	Extech EX520 Multimeter, Heavy Duty Waterproof, TRMS/Temp	Extech EX520-NIST Multimeter W/NIST EX520- PLEASE NOTE: If not in stock: NIST calibration ...	Extech EX530 Multimeter, HD, Waterproof 40000 Ct/TRMS/Temp	Extech EX503-NIST Multimeter W/NIST, EX503- PLEASE NOTE: If not in stock: NIST calibration ...	Extech EX505 Multimeter, Heavy Duty, Waterproof/TRMS	Extech EX503 Multimeter, Heavy Duty, Waterproof
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech EX505-NIST Accessories

Choose a Category

for the Extech EX505-NIST

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Extech HG500 Hanging Strap For 500 Series

Catalog: HG500

(0)

In Stock!

Add to Cart

Cal Test CT2700 HV DMM Probe, 40KV DC - 1.0m, 4mm Shth P

Catalog: CT2700

(1)

In Stock!

Add to Cart

Extech TL810 Electrical Test Lead Kit

Catalog: TL810

(2)

In Stock!

Add to Cart

Extech TP200 Probe, Temperature, Pipe Clamp 200F

Catalog: TP200

(4)

In Stock!

Add to Cart

Extech EX505 is a 11 Function Heavy Duty True RMS Industrial MultiMeter that averages DMM with 4,000 count large LCD display and waterproof housing. It is part of the EX500 Series of Heavy Duty Industrial Multimeters. This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode Test, and Continuity plus Thermocouple Temperature.

Model	EX503	EX505	EX510	EX520	EX530
Display Counts	4,000 count	4,000 count	6,000 count	6,000 count	40,000 count
Averaging/True RMS	Averaging	True RMS	Averaging	True RMS	True RMS
Basic Accuracy	0.5%	0.5%	0.09%	0.09%	0.06%
DC/AC Voltage	0.1mV to 1000VDC	0.1mV to 1000VDC	0.1mV to 1000VDC	0.1mV to 1000VDC	0.01mV to 1000VDC
	0.1mV to 1000VAC	0.1mV to 1000VAC	1mV to 1000VAC	1mV to 1000VAC	0.01mV to 1000VAC
DC/AC Current	0.1μA to 10A	0.1μA to 10A	0.1μA to 20A	0.1μA to 20A	0.01μA to 20A
Resistance	0.1Ω to 40MΩ	0.1Ω to 40MΩ	0.1Ω to 60MΩ	0.1Ω to 60MΩ	0.01Ω to 40MΩ
Capacitance	0.01nF to 100μF	0.01nF to 100μF	—	0.01nF to 1000μF	0.001nF to 40mF
Frequency (electrical)	5Hz to 1kHz	5Hz to 1kHz	10Hz to 400Hz	10Hz to 400Hz	40Hz to 400Hz
Frequency (electronic)	0.001Hz to 10 MHz	0.001Hz to 10 MHz	0.001Hz to 40 MHz	0.001Hz to 40 MHz	0.001Hz to 100 MHz
Temperature	—	-4 to 1382°F	—	-50 to 1382°F	-50 to 1382°F
		(-20 to 750°C)		(-45 to 750°C)	(-45 to 750°C)
Duty Cycle	0.1 to 99.9%	0.1 to 99.9%	0.1 to 99.9%	0.1 to 99.9%	0.1 to 99.9%
Diode/Continuity	Yes	Yes	Yes	Yes	Yes
Dimensions	7.25x3.25x2.25" (184x83x57mm)	7.25x3.25x2.25" (184x83x57mm)	7.25x3.25x2.25" (184x83x57mm)	7.25x3.25x2.25" (184x83x57mm)	7.25x3.25x2.25" (184x83x57mm)
Weight	12.3oz (349g)	12.3oz (349g)	12.3oz (349g)	12.3oz (349g)	12.3oz (349g)
