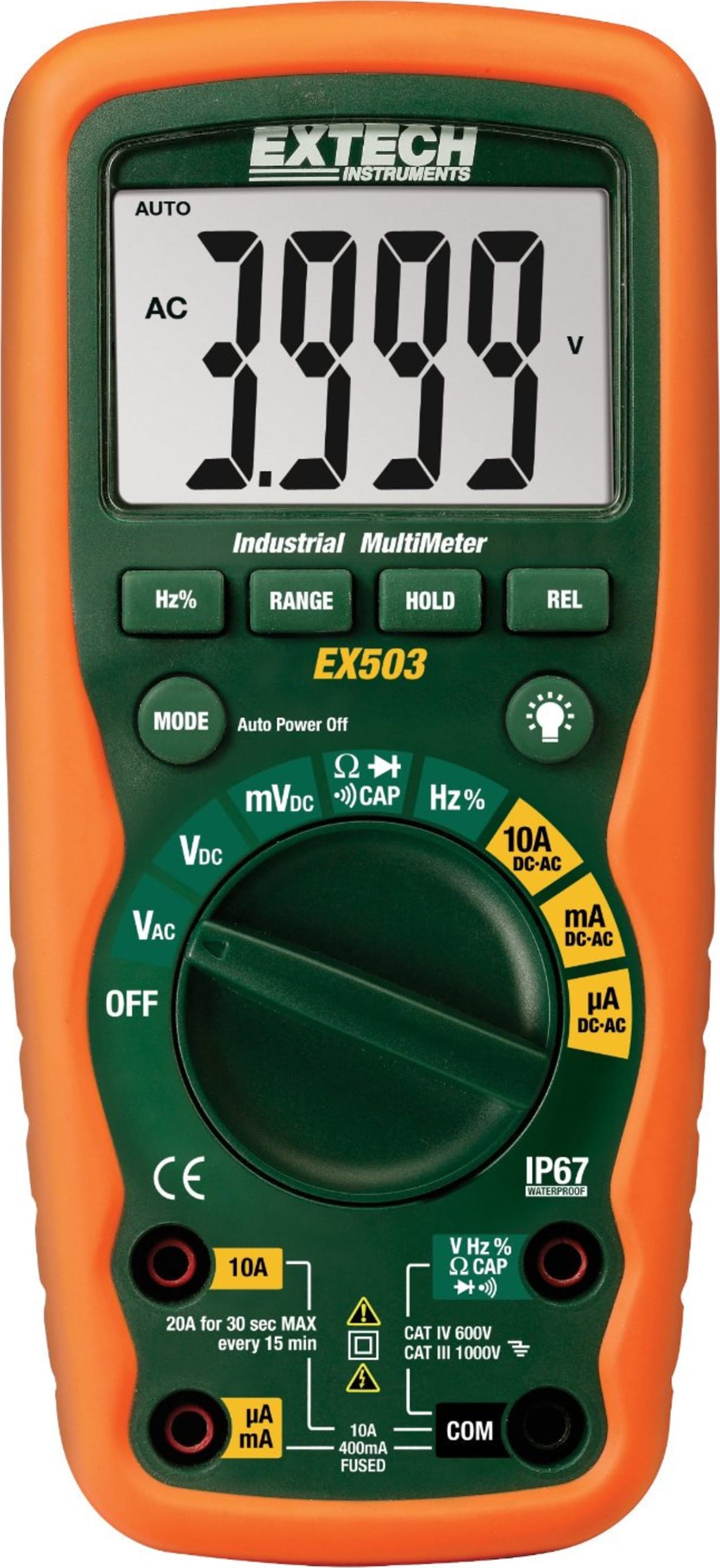

Extech EX503-NIST 10 Function Heavy Duty Industrial MultiMeter (4000 count) with NIST

Name: Extech EX503-NIST 10 Function Heavy Duty Industrial MultiMeter (4000 count) with NIST
Brand: Extech
SKU: ExtechEX503-NIST
Price: 162.08 USD
Availability: InStock

0 reviews | UPC: 793950395134 | Model: Extech EX503-NIST

Compare

Multimeter W/NIST, EX503- <span style="color:gray;">PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.</span>

Averaging DMM with 10 functions and 0.5% basic accuracy
AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode/Continuity
Dual sensitivity frequency functions (electrical/electronic)
1000V input protection on all functions
10A max Current
Data hold, Relative, Auto power off
4,000 count large backlit LCD
Double molded housing for waterproof protection
Complete with double molded test leads, magnetic hanging strap, carrying case and 9V battery

View Product Details

List Price: $181.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits
Temperature Probes

for the Extech EX503-NIST

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Extech TP200 Probe, Temperature, Pipe Clamp 200F

Catalog: TP200

(4)

In Stock!

Add to Cart

Extech EX503 is a 10 Function Heavy Duty Industrial MultiMeter that averages DMM with 4,000 count large LCD display and waterproof housing. It is part of the EX500 Series of Heavy Duty Industrial Multimeters. This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode Test, and Continuity plus Thermocouple Temperature.

Model	EX503	EX505	EX510	EX520	EX530
Display Counts	4,000 count	4,000 count	6,000 count	6,000 count	40,000 count
Averaging/True RMS	Averaging	True RMS	Averaging	True RMS	True RMS
Basic Accuracy	0.5%	0.5%	0.09%	0.09%	0.06%
DC/AC Voltage	0.1mV to 1000VDC	0.1mV to 1000VDC	0.1mV to 1000VDC	0.1mV to 1000VDC	0.01mV to 1000VDC
	0.1mV to 1000VAC	0.1mV to 1000VAC	1mV to 1000VAC	1mV to 1000VAC	0.01mV to 1000VAC
DC/AC Current	0.1μA to 10A	0.1μA to 10A	0.1μA to 20A	0.1μA to 20A	0.01μA to 20A
Resistance	0.1Ω to 40MΩ	0.1Ω to 40MΩ	0.1Ω to 60MΩ	0.1Ω to 60MΩ	0.01Ω to 40MΩ
Capacitance	0.01nF to 100μF	0.01nF to 100μF	—	0.01nF to 1000μF	0.001nF to 40mF
Frequency (electrical)	5Hz to 1kHz	5Hz to 1kHz	10Hz to 400Hz	10Hz to 400Hz	40Hz to 400Hz
Frequency (electronic)	0.001Hz to 10 MHz	0.001Hz to 10 MHz	0.001Hz to 40 MHz	0.001Hz to 40 MHz	0.001Hz to 100 MHz
Temperature	—	-4 to 1382°F	—	-50 to 1382°F	-50 to 1382°F
		(-20 to 750°C)		(-45 to 750°C)	(-45 to 750°C)
Duty Cycle	0.1 to 99.9%	0.1 to 99.9%	0.1 to 99.9%	0.1 to 99.9%	0.1 to 99.9%
Diode/Continuity	Yes	Yes	Yes	Yes	Yes
Dimensions	7.25x3.25x2.25" (184x83x57mm)	7.25x3.25x2.25" (184x83x57mm)	7.25x3.25x2.25" (184x83x57mm)	7.25x3.25x2.25" (184x83x57mm)	7.25x3.25x2.25" (184x83x57mm)
Weight	12.3oz (349g)	12.3oz (349g)	12.3oz (349g)	12.3oz (349g)	12.3oz (349g)
