• Measurement range of 1mA to 1200AAC
• Large jaw opening accommodates conductors up to two 500MCM conductors
• Ergonomic design and easy operation
• Conforms to EN 61010, 600V Cat. III safety standard
• Low phase shift for power measurements

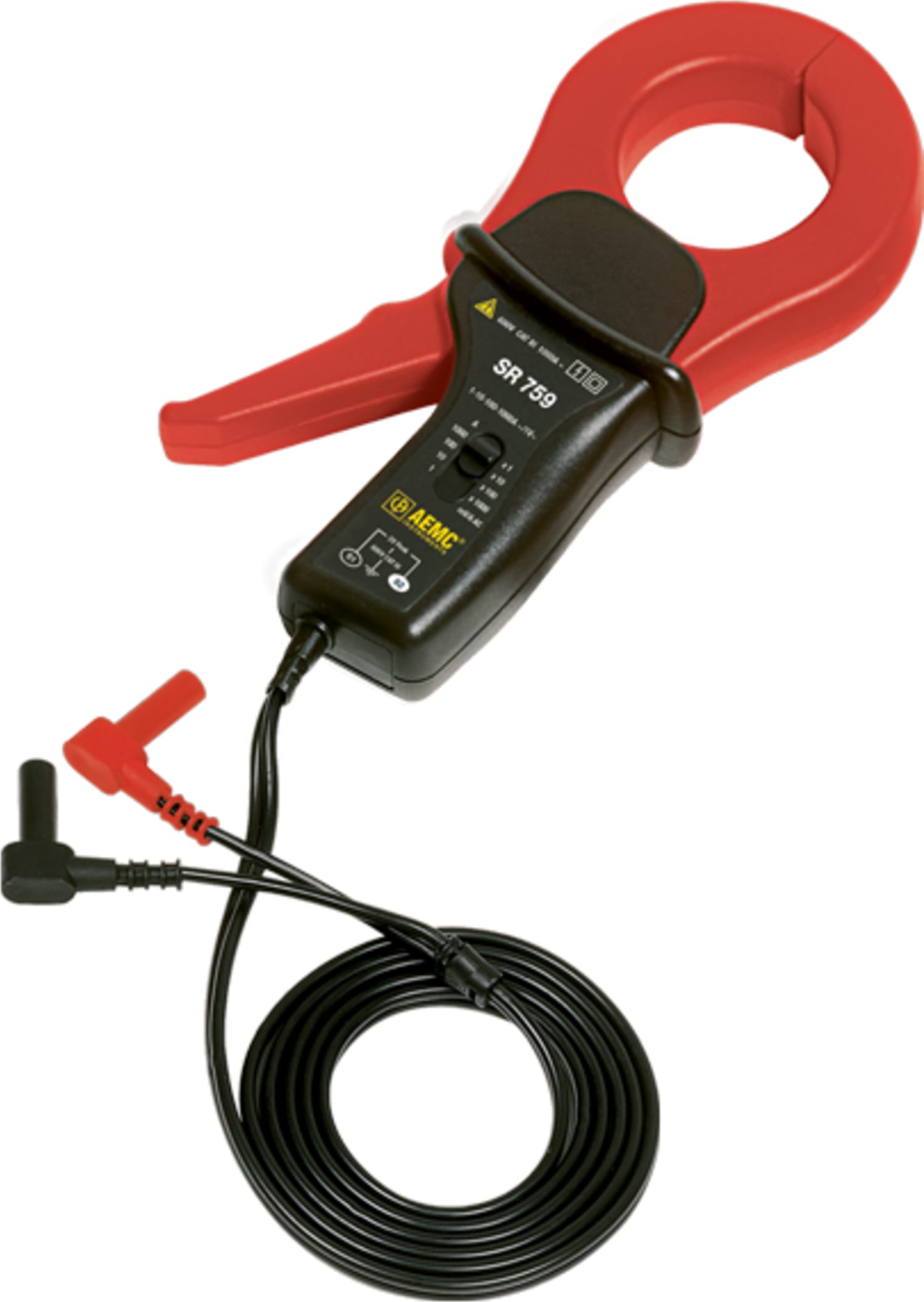

The SR759 probe is a range selectable probe that offers four switch selectable ranges: 1, 10, 100, or 1000A. This probe has a voltage output proportional to the current measured in the jaw of the probe. The SR759 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs compatible with DMMs and other instruments. The high accuracy, high sensitivity, and low phase shift make this probe an excellent choice for use in a wide range of power quality applications, including very low or leakage current measurements.

The Model SR759 is designed for use in industrial and utility environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is built to the highest safety and performance standards including the CE Mark and is UL approved.

Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current for power and power quality measurements. The high-quality magnetic cores and uniform windings provide sensitivity for very low-level current measurements, as well as measurements up to 1200AAC. The Model SR759 provides an accurate voltage of 1mV to 1000mV/A. This voltage output enables instruments without current ranges to measure, display and log currents through an AC voltage range or measure very low AC.

Applications

• Power quality measuring
• Low industrial loads
• Measuring around cable bundles
• Power load monitoring
• Waveform analysis
