AC General Purpose Probe (Lead - 1mA/A - 1000A max)

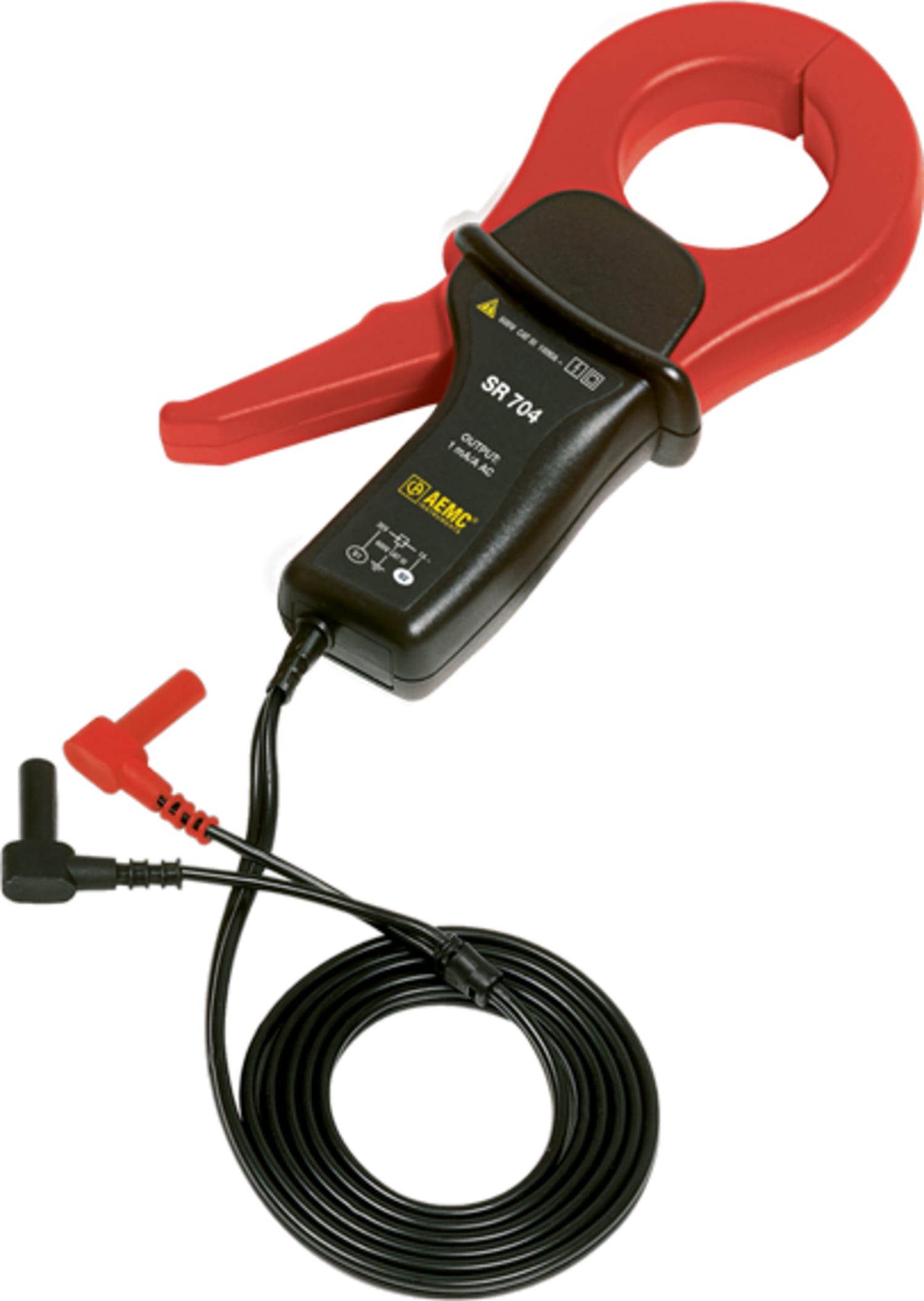

The SR704 is a general-purpose 1000AAC current probe designed for use with DMMs, loggers, and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp measured in the jaw. The SR704 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift and wide frequency response are important.
The Model SR704 is designed for use in industrial and utility environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is built to the highest safety and performance standards including the CE Mark and is UL approved.
Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current for power and power quality measurements. The high-quality magnetic cores and uniform windings provide sensitivity for very low-level current measurements, as well as measurements up to 1200AAC. The Model SR704 works as a traditional current transformer (with a ratio of 1000:1) and provides current outputs in mA/A for use on DMMs, power and harmonic meters, data loggers, recorders, or instruments with current ranges. The Model SR704 uses a custom Nickel Cove to improve accuracy and phase shift on the low end of the measurement range
Applications
- Power quality measuring
- Low industrial loads
- Measuring around cable bundles
- Power load monitoring
- Waveform analysis
