AC Current Probe (Lead - 1mA/A - 240A max)

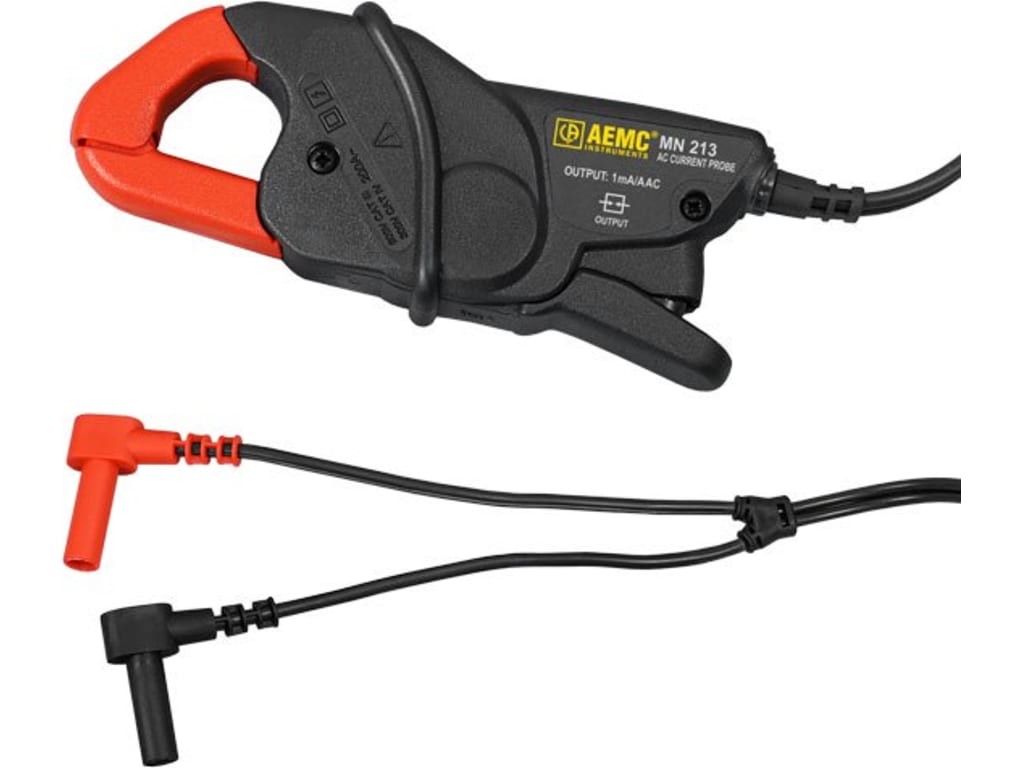

The MN213 is a general-purpose AC current probe, which is designed for DMMs and other measuring instruments with current input. It has a 1000:1 ratio and an output of 1mA per Amp in the primary (inside the jaw). The MN213 has integral 5 ft (1.5m) leads terminated by shrouded banana plugs. The MN213 has protective diodes across the output that limit the voltage in the case if the open secondary.
The Model MN213 is the latest in compact AC current probes. It is designed to meet the most stringent demands in industry and electrical contracting. Model MN213 meets EN 61010, 600V, Cat. III safety standards and is CE Marked and UL approved.
The Model MN213 has a 0.78" (20mm) jaw opening and can accommodate conductors up to 250MCM. The unique hooked jaw design facilitates clamping and hooking onto conductors. Polycarbonate materials and ultrasonic welding are used throughout to ensure ruggedness and overall lasting reliability.
The Model MN213 uses tape-wound cores to further improve its high and low-end performance. Rated at 200Arms it has a measurement range to 240Arms.
Applications
- Measuring in breaker panels
- Industrial loads
- HVAC
- Residential and commercial sites
- 5A secondary current transformers (CTs) monitoring
- Data logging/recording
