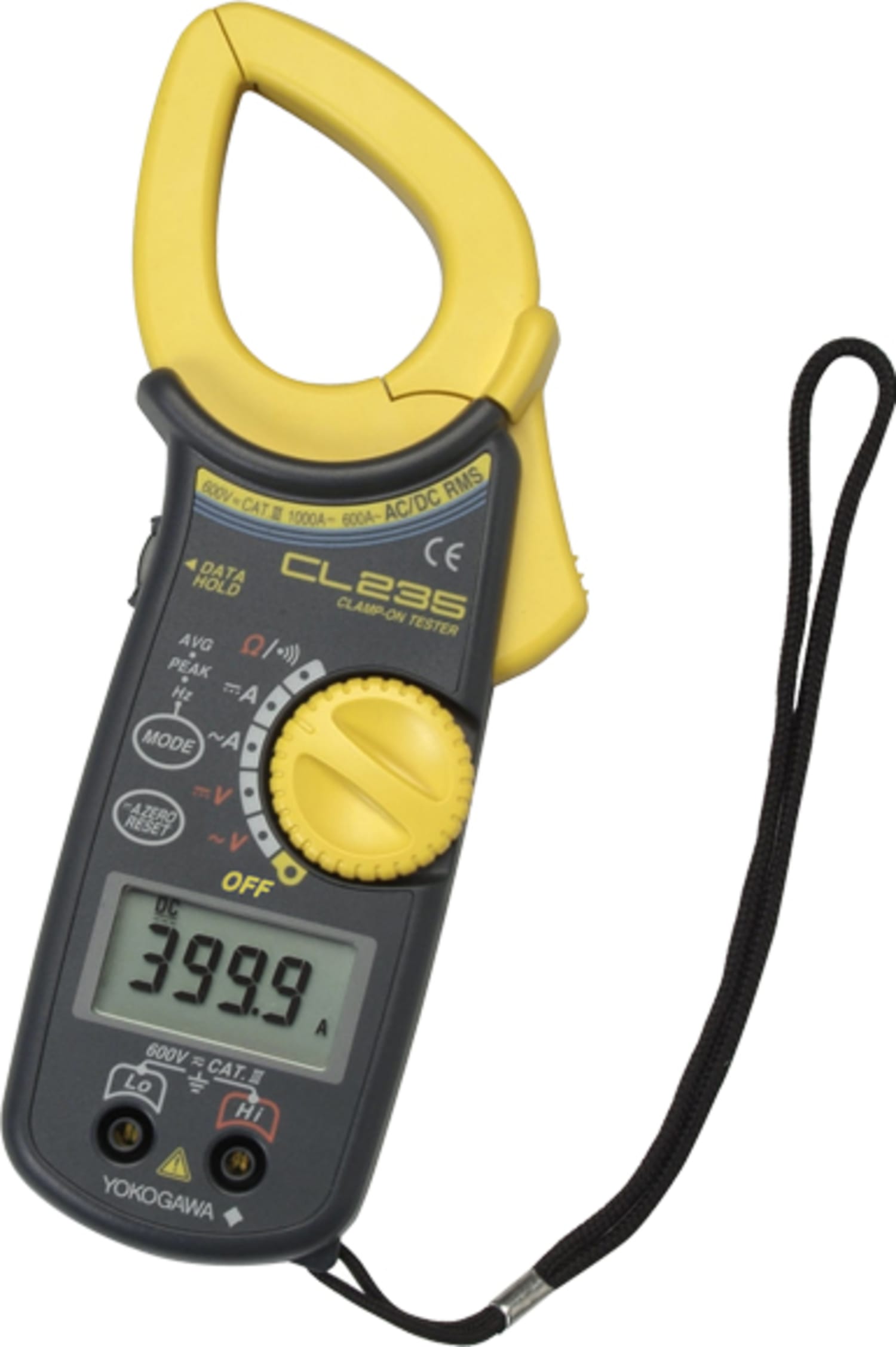

Yokogawa CL235 - Clamp-on Tester True RMS (600 A AC/1000 A DC)

Name: Yokogawa CL235 - Clamp-on Tester True RMS (600 A AC/1000 A DC)
Brand: Yokogawa
SKU: YokogawaCL235
Price: 540.00 USD
Availability: InStock

0 reviews | Model: Yokogawa CL235

Compare

True RMS ACA, ACV, DCA, DCV

Maximum AC current = 600 A
Maximum DC current = 1000 A
Maximum AC voltage = 600 V
Maximum DC voltage = 600 V
True RMS = Yes
1.3 inch diameter of measurable conductor
AC/DC voltage, resistance, and frequency measurements
True RMS display detection method
Rated for use Cat. III - 600 V
Approved to safety standards EN61010-1, EN61010-2-032, EN61010-2-031

View Product Details

In Stock:

View Payment Options

Call Us

Request Quote

Items in This Series



Product	Yokogawa CL235 True RMS ACA, ACV, DCA, DCV	Yokogawa CL120	Yokogawa CL155 AC True RMS	Yokogawa CL220 AC/DC Mini Clamp-on	Yokogawa CL250 ACA, DCA, ACV, DCV, OHM, Freq. Degrees C Continuity Check	Yokogawa CL255 True RMS ACA, DCA, ACV, DCV	Yokogawa CL320 Leakage current mini clamp on	Yokogawa CL360 Leakage current clamp on AC 1000A	Yokogawa CL340 Leakage Current Mini Clamp-on	Yokogawa CL150 ACA, ACV, DCV, OHM, Continuity Check	Yokogawa CL345 AC LEAKAGE	Yokogawa CL420 Clamp-on Process Meter
Price
In Stock
True RMS	Yes	No	Yes	No	No	Yes	No	No	No	No	Yes	No
Maximum Current AC	600 A	200 A	2000 A	300 A	2000 A	2000 A	200 A	1000 A	400 A	2000 A	400 A
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Yokogawa CL235 Accessories

Choose a Category

General Accessories
Line Splitters

for the Yokogawa CL235

Yokogawa 93032 For CL130, CL135, CL235; Carrying Case Soft Type

Catalog: 93032

(0)

In Stock! Contact us for price

Call Us

Yokogawa 98010 Replaced by 98071

Catalog: 98010

(0)

In Stock! Contact us for price

Call Us

Yokogawa 99025 Clamp Adaptor (Tokuchu)

Catalog: 99025

(0)

In Stock! Contact us for price

Call Us

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Yokogawa CL235 - Clamp-on Tester True RMS (600 A AC/1000 A DC)

Maximum AC current = 600 A
Maximum DC current = 1000 A
Maximum AC voltage = 600 V
Maximum DC voltage = 600 V
True RMS = Yes

The Yokogawa CL Series of clamp-on testers consists of AC, AC/DC, DC and leakage current clamps with various ranges and dimensions. There are multiple options for the CL Series including RMS, Mean, Temperature, frequency, and recorder output.

CL Series Features:

Lightweight, compact design
Data hold on all ranges
True RMS or Mean value detection method
Approximately 2 second response time
Auto-off or sleep function after 10 minutes
Approved for conformity to safety standards

Please click here for CL Series Selection Guide

The chart below provides a brief breakdown of the characteristics and measurement functions of the CL Series Testers for AC/DC Current:

For AC/DC Current	CL220	CL235	CL250	CL255
Diameter of conductor	1 inch	1.3 inch	2.2 inch	2.2 inch
Detection Method	Mean value	True RMS	Mean value	True RMS
Frequency	20Hz to 1kHz	40Hz to 1kHz	40Hz to 1kHz	30Hz to 1kHz
AC Current	40/300A	400/600A	400/2000A	400/2000A
DC Current	40/300A	400/600A	400/2000A	400/2000A
AC Voltage		✔	✔	✔
DC Voltage		✔	✔	✔
Continuity check		✔	✔	✔
Frequency measurement		✔		✔
Data hold	✔	✔	✔	✔
Peak hold		✔		✔
Recorder output			✔	✔
Waveform monitor output

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	600 A
Maximum Current DC	1000 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Conductor Size	1.3 IN
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Auto Ranging
In-Rush Current	No
Test Equipment General Attributes
Warranty	12 MONTHS (1 YEARS)
Product Weight	450 GRAMS (0.992 LBS)
Product Height	40 MM (1.57 IN)
Product Length	91 MM (3.58 IN)
Product Width	210 MM (8.27 IN)
Shipping Weight	1.35 LBS
Data Logging	No
HTS/Schedule B Number	9030.33.0040
ECCN Number	EAR 99
Calibration Included	Factory Calibration
Country of Origin	Japan
Shipping Height	2.50 IN
Shipping Length	9.50 IN
Shipping Width	4.75 IN
