| Model Number |
DHS85XL |

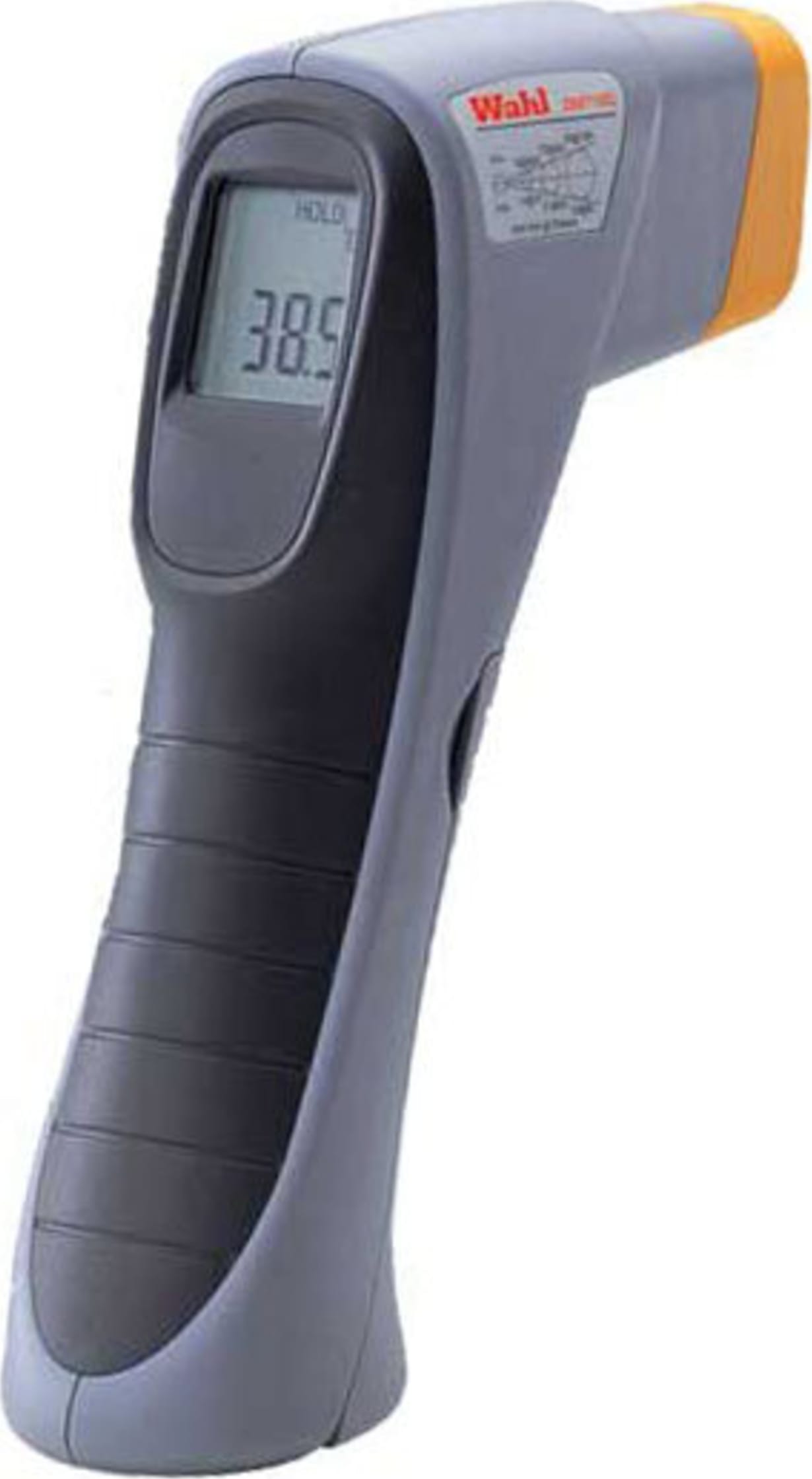

DHS115XL |
DHS115XEL |
DHS135XEL |
DHS215XEL |

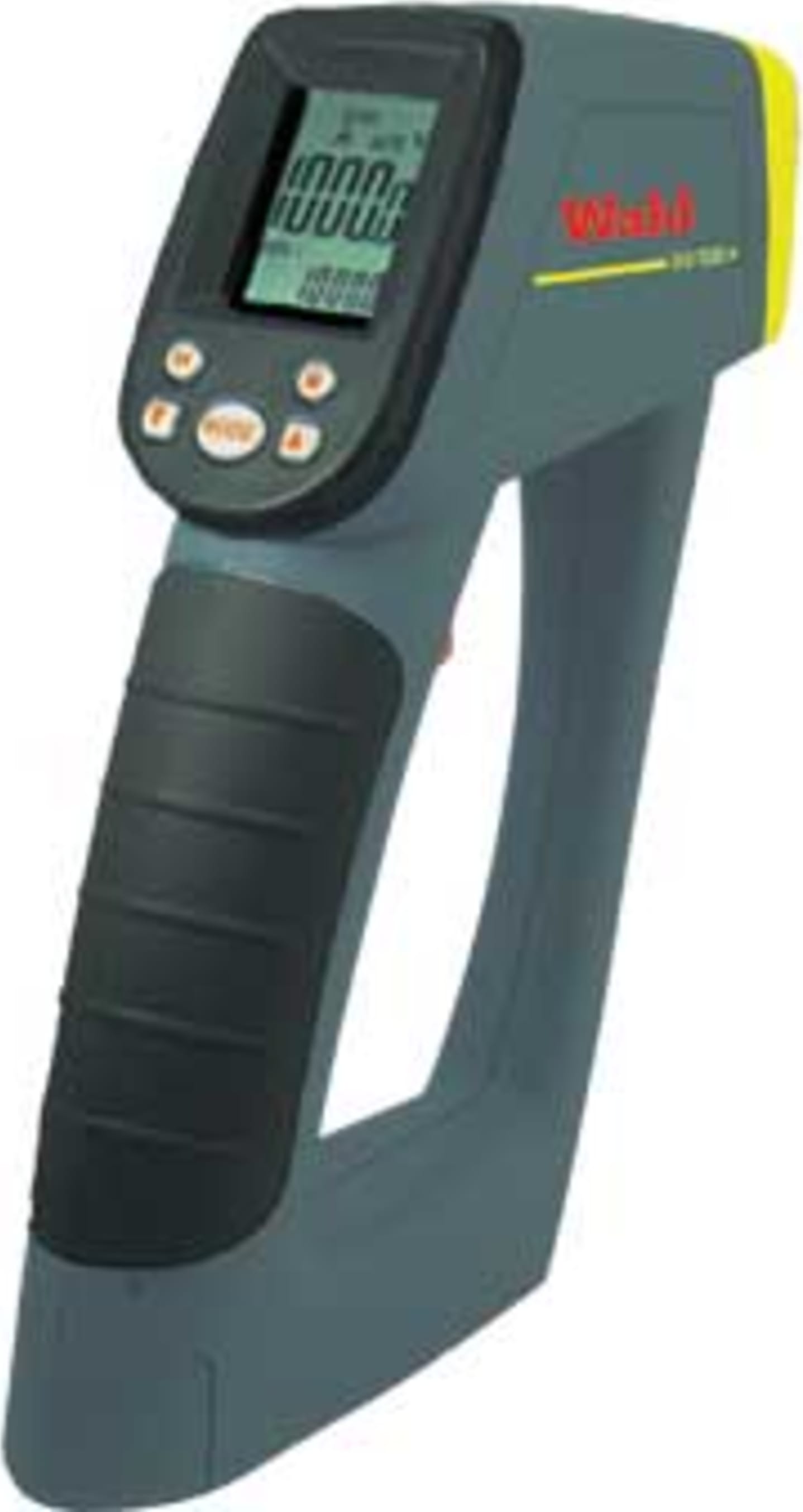

NEW! DHS235XEL |
| Description |
Close Range |
Mid Temperature
Short Range |
Mid Temperature
Short Range
Extended Features |
High Temperature
Long Range
Extended Features |
High Temperature
Extra Long Range
Extended Features
USB, Type K Probe |
Extra High Temperature
Extra Long Range
Extended Features |
| Temperature Range |
-4° to 619°F
-20° to 326°C |
-25° to 999°F
-32° to 535°C |
-25° to 999°F
-32° to 535°C |
-58° to 1832°F
-50° to 1000°C |
-58° to 1832°F
-50° to 1000°C |
-58° to 2732°F
-50° to 1500°C |
| Distance to Spot Ratio |
8:1 |
12:1 |
30:1 |
50:1 |
| Spectral Range |
5 to 14µm |
5 to 14µm |
5 to 14µm |
8 to 14µm |
8 to 14µm |
8 to 14µm |
| Emissivity |
Fixed at 0.95 |
Adjustable 0.10 to 1.00 |
Adjustable 0.10 to 1.00 |
Adjustable 0.10 to 1.00 |
Adjustable 0.10 to 1.00 |
| Accuracy |
±2% of reading or 2°C whichever is greater |
±5°F (±3°C) from -25° to -4°F (-32° to -20°C)
±3°F (±2°C) from -4° to 212°F (-20° to 100°C)
±2% from 212° to 999°F (100° to 535°C) |
±5°F (±3°C) from -58° to -4°F (-50° to -20°C)
±3°F (±2°C) from -4° to 212°F (-20° to 100°C)
±2% above 212°F (100°C) |
| Repeatability |
±2°F (±1°C) |
±2°F (±1°C) |
±2°F (±1°C) |
±2°F (±1°C) |
±2°F (±1°C) |
±2°F (±1°C) |
| Resolution |
0.1°F (0.1°C) |
0.1°F (0.1°C) |
0.1°F (0.1°C) |
0.1°F (0.1°C) |
0.1°F (0.1°C) |
0.1°F (0.1°C) |
| Response Time |
500 ms. |
500 ms. |
500 ms. |
500 ms. |
500 ms. |
500 ms. |
| Operating Temperature |
32° to 122°F
(0 to 50°C)
10 - 90% RH |
32° to 122°F
(0 to 50°C)
10 - 90% RH |
32° to 122°F
(0 to 50°C)
10 - 90% RH |
32° to 122°F
(0 to 50°C)
10 - 90% RH |
32° to 122°F
(0 to 50°C)
10 - 90% RH |
32° to 122°F
(0 to 50°C)
10 - 90% RH |
| Storage Temperature |
14° to 140°F
(-10° to 60°C) |
14° to 140°F
(-10° to 60°C) |
14° to 140°F
(-10° to 60°C) |
14° to 140°F
(-10° to 60°C) |
14° to 140°F
(-10° to 60°C) |
14° to 140°F
(-10° to 60°C) |
| LCD Backlight |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Dual Display |
NA |
Yes |
Yes |
Yes Yes |
| °F &°C Selectable |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Laser Sight Switchable |
User Selectable, Class II Laser, less than 1mW |
| Auto Power Off |
Automatically after approx. 6 seconds |
Automatically after approx. 6 seconds |
Automatically after approx. 6 seconds |
Automatically after approx. 6 seconds |
Automatically after approx. 30 seconds |
Automatically after approx. 6 seconds |
| Max/Min/Avg/?T |
No |
No |
Yes |
Yes |
Yes |
Yes |
| Auto Measuring |
No |
No |
Yes |
Yes |
Yes |
Yes |
| Audible Alarm |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
| 10 Point Memory |
No |
No |
Yes |
Yes |
Yes |
Yes |
| Electronic Trigger Lock |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
| Tripod Mount |
Yes |
No |
No |
Yes |
Yes |
Yes |
| USB Data Output |
No |
No |
No |
No |
Yes |
No |
| Type K Thermocouple |
No |
No |
No |
No |
Yes |
No |
| Operating Software |
NA |
Software Cd Included |
NA |
| Power Supply |
9V Battery |
9V Battery |
9V Battery |
9V Battery |
9V Battery |
9V Battery |
| Battery Life with Laser Off |
16 hrs for continuous operation |
15 hrs for continuous operation |
15 hrs for continuous operation |
| Dimensions |
5.9 x 5.2 x 1.8" (150 x 133 x 45mm) |
6.8 x 3.6 x 1.8" (173 x 93 x 45mm) |
7.9 x 5.0 x 1.9" (200 x 127 x 47mm) |
6.7 x 5.2 x 1.8" (200 x 132 x 45mm) |
| Weight with Battery |
4.7 oz (135g) |
7.8 oz (220g) |
12.7 oz (360g) |
11.6 oz (330g) |
| Included Accessories |
| User Manual, 9V Battery |
User Manual, 9V Battery, Soft Pouch |
User Manual, 9V Battery, Carrying Case, and Wrist Strap |
User Manual, 9V Battery, Carrying Case, Wrist Strap & Software |
User Manual, 9V Battery, Carrying Case, and Wrist Strap |
| |
USB Cable, Type K Probe* |
|
| Optional Accessories |
Soft Pouch |
No |
No |
Optional T/C Probes** |
No |
