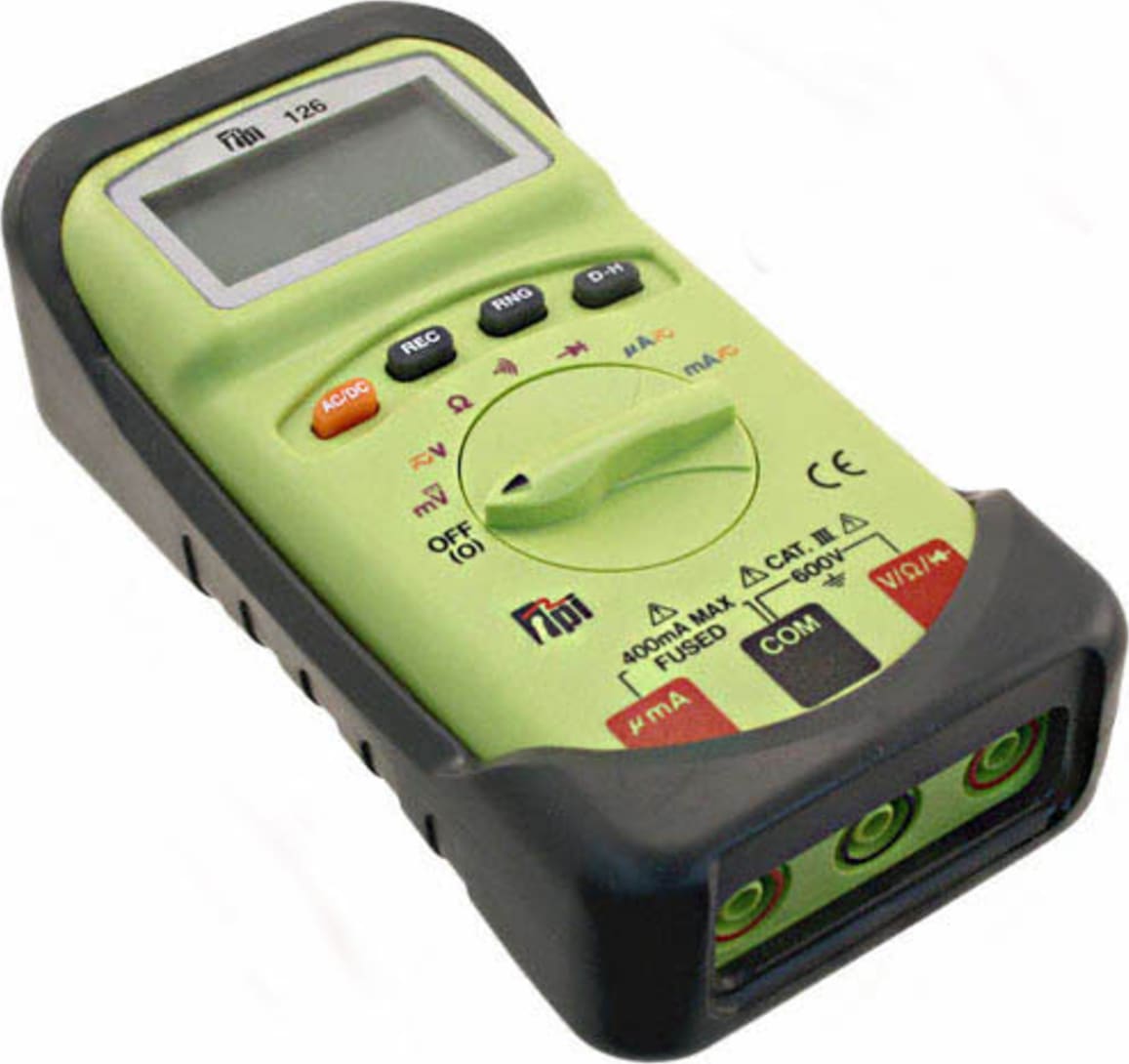

TPI 126 Digital Multimeter

0 reviews | UPC: 637623001260 | Model: TPI 126

Compare

Compact Autoranging DMM w/boot, test leads and manual

View Product Details

List Price: $59.95

Your Price: $55.75

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series


Product	TPI 126 Compact Autoranging DMM w/boot, test leads and manual	TPI 196 Process Control meter	TPI 183a 4,000 count true rms DMM w/ temperature, capacitance, duty cycle and low pass fil ...	TPI 194 True RMS 50,000 count DMM w/ CAT IV, 1000V rating	TPI 135 Manual Ranging DMM with Capacitance, 40uA range, w/boot, test leads, and manual	TPI 100 One button, easy-operation DMM with protective boot	TPI 120 Compact Digital DMM w/boot, test leads and manual	TPI 122 Compact Digital DMM, ACmV, w/boot, test leads and manual	TPI 133 Manual Ranging DMM,w/boot, test leads, and manual	TPI 153 Autoranging DMM w/boot, test leads, battery and manual	TPI 163 Autoranging DMM w/bar graph, boot, test leads, and manual
Price
In Stock
Style	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held
Measures AC V	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Measures DC V	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

TPI 126 Accessories

Choose a Category

for the TPI 126

TPI A070 UL Listed Test Lead Set Without Alligator Clips

Catalog: A070

(0)

In Stock!

Add to Cart

TPI A075 UL Listed test lead set with alligator clips (screw on)

Catalog: A075

(1)

In Stock!

Add to Cart

TPI A140 Screw on alligator clips with IEC 1010 boots

Catalog: A140

(0)

In Stock!

Add to Cart

TPI A050 Standard test lead set with alligator clips (screw on)

Catalog: A050

(0)

In Stock!

Add to Cart

TPI A060 6-foot shielded test lead set

Catalog: A060

(0)

In Stock!

Add to Cart

TPI A091 Fused test prods (1 red, 1 black)

Catalog: A091

(0)

In Stock!

Add to Cart

TPI A020 Flame current test lead

Catalog: A020

(0)

In Stock!

Add to Cart

TPI A040 Standard test lead set

Catalog: A040

(0)

In Stock!

Add to Cart

TPI A080 UL Listed Silicone Insulation Test Lead Set Without Alligator Clips

Catalog: A080

(1)

In Stock!

Add to Cart

TPI A002 1.5 Volt AA battery (1 each)

Catalog: A002

(0)

In Stock!

Add to Cart

TPI A004 Nicad battery pack for the 440

Catalog: A004

(10)

In Stock!

Add to Cart

TPI A255 Soft carrying case for 255, 120

Catalog: A255

(0)

In Stock!

Add to Cart

TPI A901 Soft carrying case with shoulder strap for multiple instruments

Catalog: A901

(0)

In Stock!

Add to Cart

TPI A902 Hard carring case for compact and full size DMM

Catalog: A902

(0)

In Stock!

Add to Cart

TPI A250 AC Amp Current Probe Adapter

Catalog: A250

(1)

In Stock!

Add to Cart

TPI A251 AC Amp Current Probe Adapter

Catalog: A251

(0)

In Stock!

Add to Cart

TPI A254 AC/DC Amp Low Current Probe Adapter

Catalog: A254

(0)

In Stock!

Add to Cart

TPI A256 AC/DC Amp Current Probe Adapter

Catalog: A256

(1)

In Stock!

Add to Cart

TPI A296 AC/DC Clamp-on accessory for DMM s (0 to 1000 Amps)

Catalog: A296

(2)

In Stock!

Add to Cart

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

TPI A121 Rubber boot for 120 series DMM''s

Catalog: A121

(0)

In Stock!

Add to Cart

Cal Test CT2700 HV DMM Probe, 40KV DC - 1.0m, 4mm Shth P

Catalog: CT2700

(1)

In Stock!

Add to Cart

TPI A115 Thermocouple adapter for gas valves

Catalog: A115

(1)

In Stock!

Add to Cart

TPI A112 Microamp Adapter for DMM s/Clamps w/2 or 20 V DC range

Catalog: A112

(0)

In Stock!

Add to Cart

TPI A120 Boot Hook for 120, 126

Catalog: A120

(0)

In Stock!

Add to Cart

TPI A301 Temperature Adapter w/GK11M and battery

Catalog: A301

(0)

In Stock!

Add to Cart

TPI A620 Vacuum to 500 psi Pressure/Vacuum Adapter

Catalog: A620

(0)

In Stock!

Add to Cart

TPI A065 10-Foot Shielded Test Lead Set With Alligator Clips

Catalog: A065

(0)

In Stock!

Add to Cart

TPI A085 UL Listed Silicone Test Lead Set With Alligator Clips (Screw On)

Catalog: A085

(1)

In Stock!

Add to Cart

TPI A090 Test lead set for fused test prods

Catalog: A090

(0)

In Stock!

Add to Cart

TPI FTLK1 Fused test lead kit (prod and leads)

Catalog: FTLK1

(0)

In Stock!

Add to Cart

TPI FTLK3 Deluxe Fused test lead kit

Catalog: FTLK3

(0)

In Stock!

Add to Cart

TPI A104 0.5 amp/600V UL ceramic fuse for 100 series DMM s (2 each)

Catalog: A104

(1)

In Stock!

Add to Cart

Display Count	4000
AC Volts	600
DC Volts	600
Basic DC Accuracy	0.3%
AC Amps	400mA
DC Amps	400mA
True RMS	N/A
Resistance	40MΩ
Capacitance	N/A
Frequency	N/A
Analog Bar Graph	N/A
Auto Range	Yes
Data Hold	Yes
Min/Max	Yes
Sleep Mode	N/A
Auto Power Off	Yes
RS232 (cable & software)	N/A
Dimensions (w/boot)	6 x 3 x 2"
CE or UL Listed	CE, cULus 3111

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	No
Maximum Voltage AC	750 V
Resolution AC Volts	0.001 V (1 mV)
Maximum Voltage DC	1000 V
Resolution DC Volts	0.1 mV
Maximum Current AC	400 mA (0.4 A)
Minimum Current AC	0.1 uA (0.00010 mA)
Resolution AC Current	0.1 mA
Maximum Current DC	400 mA (0.4 A)
Minimum Current DC	0.1 uA (0.00010 mA)
Resolution DC Current	0.1 mA
Basic Accuracy V DC	.3%
# Digit Display	3.5
Counts	4000 .
Backlight	No
Manual/Autoranging	Both
Decibels	No
Resistance	Yes
Frequency	No
Capacitance	No
Diode Testing	Yes
CAT Rating	III
CAT Voltage	600 V
Intrinsically Safe	No
Peak Hold	Yes
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	No
Test Equipment General Attributes
Unique Features	palm sized, rugged boot with tilt stand, UL listed, milivolts and microamps
Warranty	3 YEARS
Safety Approval	CE, UL
Product Weight	12 OUNCES (0.75 LBS)
Product Height	1.3 IN
Product Length	7.4 IN
Product Width	3.4 IN
Data Logging	No
HTS/Schedule B Number	9030.31.0000
ECCN Number	EAR49
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Korea
UPC	637623001260
