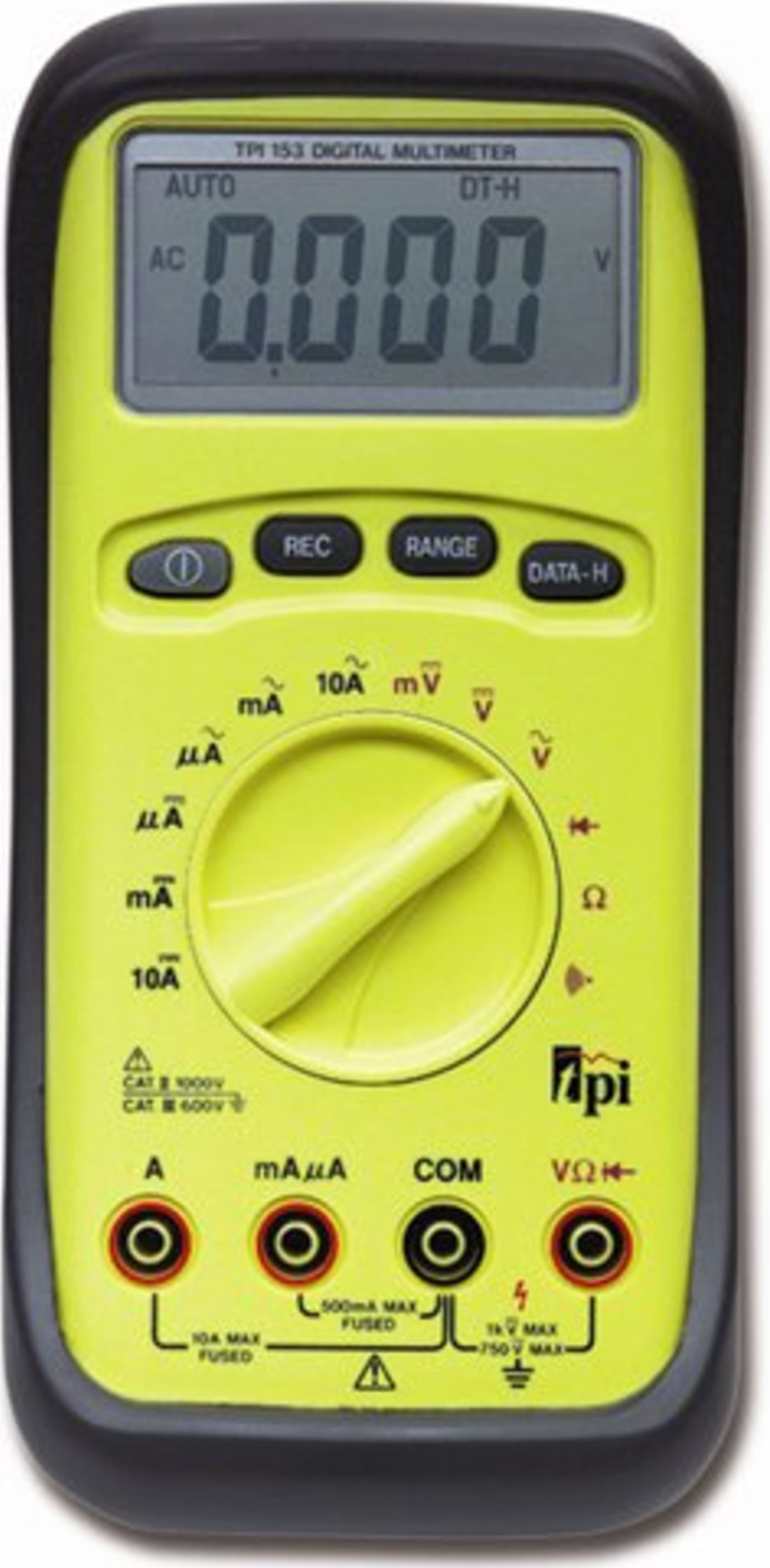

TPI 153 - Autoranging Digital Multimeter

0 reviews | UPC: 637623001536 | Model: TPI 153

Compare

Autoranging DMM w/boot, test leads, battery and manual

REC: Records Min/Max readings during specified measurement intervals.
RANGE: Allows the user to manually range the 153 instead of autoranging.
Data Hold: Holds the reading on the display for easy viewing.
Auto Off: Preserves battery life.
Agency Approval: Meets CE and IEC 1010 requirements.
Record: Records Min/Max values.
Range: Allows you to either manual range or use auto range to select the appropriate range.
Sleep: Instrument automatically powers down after 30 minutes of inactivity, however, it will continue acquiring data in its various modes. Pressing any push button or turning the rotarty switch returns the 153 back to normal.

View Product Details

List Price: $74.95

Your Price: $68.95

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	TPI 153 Autoranging DMM w/boot, test leads, battery and manual	TPI 196 Process Control meter	TPI 183a 4,000 count true rms DMM w/ temperature, capacitance, duty cycle and low pass fil ...	TPI 194 True RMS 50,000 count DMM w/ CAT IV, 1000V rating	TPI 135 Manual Ranging DMM with Capacitance, 40uA range, w/boot, test leads, and manual	TPI 100 One button, easy-operation DMM with protective boot	TPI 120 Compact Digital DMM w/boot, test leads and manual	TPI 122 Compact Digital DMM, ACmV, w/boot, test leads and manual	TPI 126 Compact Autoranging DMM w/boot, test leads and manual	TPI 133 Manual Ranging DMM,w/boot, test leads, and manual	TPI 163 Autoranging DMM w/bar graph, boot, test leads, and manual
Price
In Stock
Style	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held
Measures AC V	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Measures DC V	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

TPI 153 Accessories

Choose a Category

for the TPI 153

TPI A070 UL Listed Test Lead Set Without Alligator Clips

Catalog: A070

(1)

In Stock!

Add to Cart

TPI A075 UL Listed test lead set with alligator clips (screw on)

Catalog: A075

(1)

In Stock!

Add to Cart

TPI A140 Screw on alligator clips with IEC 1010 boots

Catalog: A140

(1)

In Stock!

Add to Cart

TPI A050 Standard test lead set with alligator clips (screw on)

Catalog: A050

(0)

In Stock!

Add to Cart

TPI A060 6-foot shielded test lead set

Catalog: A060

(0)

In Stock!

Add to Cart

TPI A091 Fused test prods (1 red, 1 black)

Catalog: A091

(0)

In Stock!

Add to Cart

TPI A020 Flame current test lead

Catalog: A020

(0)

In Stock!

Add to Cart

TPI A040 Standard test lead set

Catalog: A040

(0)

In Stock!

Add to Cart

TPI A080 UL Listed Silicone Insulation Test Lead Set Without Alligator Clips

Catalog: A080

(1)

In Stock!

Add to Cart

TPI A009A 9 Volt alkaline battery

Catalog: A009A

(0)

In Stock!

Add to Cart

TPI A100 Soft carrying case for 133, 135, 153, 163, 183,185

Catalog: A100

(0)

In Stock!

Add to Cart

TPI A902 Hard carring case for compact and full size DMM

Catalog: A902

(0)

In Stock!

Add to Cart

TPI A250 AC Amp Current Probe Adapter

Catalog: A250

(1)

In Stock!

Add to Cart

TPI A251 AC Amp Current Probe Adapter

Catalog: A251

(0)

In Stock!

Add to Cart

TPI A254 AC/DC Amp Low Current Probe Adapter

Catalog: A254

(0)

In Stock!

Add to Cart

TPI A256 AC/DC Amp Current Probe Adapter

Catalog: A256

(1)

In Stock!

Add to Cart

TPI A296 AC/DC Clamp-on accessory for DMM s (0 to 1000 Amps)

Catalog: A296

(2)

In Stock!

Add to Cart

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

TPI A101 Rubber boot for 100 series DMM s

Catalog: A101

(0)

In Stock!

Add to Cart

TPI A115 Thermocouple adapter for gas valves

Catalog: A115

(2)

In Stock!

Add to Cart

TPI A103 Boot Hook for 133, 153, 163, 183, 185

Catalog: A103

(0)

In Stock!

Add to Cart

TPI A112 Microamp Adapter for DMM s/Clamps w/2 or 20 V DC range

Catalog: A112

(0)

In Stock!

Add to Cart

TPI A301 Temperature Adapter w/GK11M and battery

Catalog: A301

(0)

In Stock!

Add to Cart

TPI A620 Vacuum to 500 psi Pressure/Vacuum Adapter

Catalog: A620

(0)

In Stock!

Add to Cart

TPI A065 10-Foot Shielded Test Lead Set With Alligator Clips

Catalog: A065

(0)

In Stock!

Add to Cart

TPI A085 UL Listed Silicone Test Lead Set With Alligator Clips (Screw On)

Catalog: A085

(1)

In Stock!

Add to Cart

TPI A090 Test lead set for fused test prods

Catalog: A090

(0)

In Stock!

Add to Cart

TPI FTLK1 Fused test lead kit (prod and leads)

Catalog: FTLK1

(0)

In Stock!

Add to Cart

TPI FTLK3 Deluxe Fused test lead kit

Catalog: FTLK3

(0)

In Stock!

Add to Cart

TPI A104 0.5 amp/600V UL ceramic fuse for 100 series DMM s (2 each)

Catalog: A104

(1)

In Stock!

Add to Cart

TPI A110 10 amp/600V UL ceramic fuse for 100 series DMM s (2 each)

Catalog: A110

(2)

In Stock!

Add to Cart

TPI 153 - Autoranging Digital Multimeter

REC: Records Min/Max readings during specified measurement intervals.
RANGE: Allows the user to manually range the 153 instead of autoranging.
Data Hold: Holds the reading on the display for easy viewing.
Auto Off: Preserves battery life.
Agency Approval: Meets CE and IEC 1010 requirements.
Record: Records Min/Max values.
Range: Allows you to either manual range or use auto range to select the appropriate range.
Sleep: Instrument automatically powers down after 30 minutes of inactivity, however, it will continue acquiring data in its various modes. Pressing any push button or turning the rotarty switch returns the 153 back to normal.

The 153 is a hand-held autoranging DMM. The 153 measures ACV, DCV, ACA, DCA, Resistance, Diodes and Continuity.

Applications:

Thermocouples in furnaces or gas applications
Heat anticipator current in thermostats
Line voltage
Voltage of direct drive DC motors
Control circuit voltage
Motor run and start capacitors
Flame safeguard control current
Heating element resistance (continuity)
Compressor winding resistance
Contactor and relay coil resistance
Continuity of wiring
Continuity of circuit breakers
Temperature w/ optional temperature adapter
Bar graph to indicate rapid fluctuations in measurements

Model 153 Specifications
DC Volts	Maximum Input: 1000V Maximum Resolution: 0.1mV Accuracy: +/-0.3%
AC Volts	Maximum Input: 750V Maximum Resolution: 0.001V Accuracy: +/-0.8%
DC Amps	Maximum Input: 10A Maximum Resolution: 0.1μA Accuracy: +/-0.5%
AC Amps	Maximum Input: 10A Maximum Resolution: 0.1μA Accuracy: +/-0.8%
Resistance (Ohms)	Maximum Input: 40MΩ Maximum Resolution: 0.1mΩ Accuracy: +/-0.5%
Frequency	N/A
Capacitance	N/A
Inductance	N/A
Temperature (K-Type Thermocouple)	N/A
Continuity	Audible at less than 50Ω
Diode	3V at 30µA maximum output
Duty Cycle	N/A
True RMS Responding	No
Conductance	No
Pulse Width	No
Data Hold	Yes
Min/Max Record	Yes
Time Stamp Logging	No
Relative Mode	No
Compare Mode	No
RS-232 Output	No
Process Loop Output	No
Sleep Mode / Auto Off	Yes
Protective Boot	Yes (standard)
Display Type	4000 count LCD
Range Selection	Auto/Manual
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	14°F to 122°F (-10°C to 50°C)
Humidity	80% non-condensing
Size	6” x 3.1” x 1.2” (187mm x 86mm x 33mm) with boot
Weight	12oz (340g) with boot
Battery Type	9V
Battery Life	500hrs Typical
OverInput Category	CAT III 600V
Agency Approval	cULus 61010-1, IEC 61010-1
Warranty	Limited Lifetime

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	No
Maximum Voltage AC	750 V
Resolution AC Volts	0.001 V (1 mV)
Maximum Voltage DC	1000 V
Resolution DC Volts	0.1 mV
Maximum Current AC	10 A
Minimum Current AC	0.1 uA (0.00010 mA)
Resolution AC Current	0.1 uA (0.00010 mA)
Maximum Current DC	10 A
Minimum Current DC	0.1 uA (0.00010 mA)
Resolution DC Current	0.1 uA (0.00010 mA)
Basic Accuracy V DC	.3%
# Digit Display	4
Counts	4000 .
Backlight	No
Manual/Autoranging	Both
Decibels	No
Resistance	Yes
Frequency	No
Capacitance	No
Temperature	No
Diode Testing	Yes
CAT Rating	III
CAT Voltage	600 V
Intrinsically Safe	No
Peak Hold	Yes
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Test Equipment General Attributes
Unique Features	record minimum and maximum, large easy to read LCD, auto-ranging, UL listed
Warranty	3 YEARS
Safety Approval	CE, UL
Product Weight	12 OUNCES (0.75 LBS)
Product Height	1.3 IN
Product Length	7.4 IN
Product Width	3.4 IN
HTS/Schedule B Number	9030.31.0000
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Korea
UPC	637623001536
