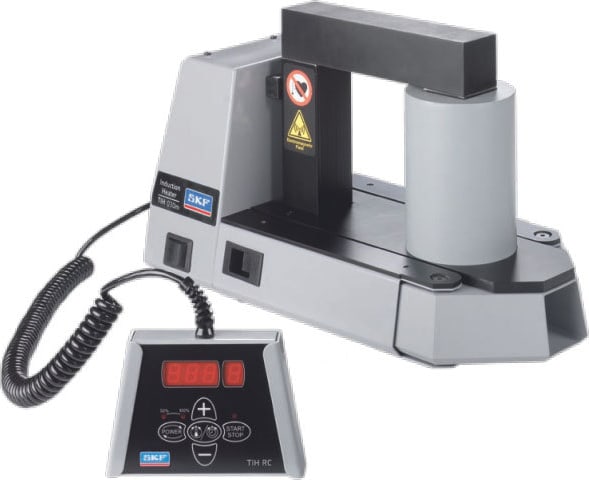

SKF TIH 100M/230V Medium Induction Heater - 200–240 V/50–60 Hz

0 reviews | UPC: 7316572520444 | Model: SKF TIH 100M/230V

Compare

Medium induction heater with a 120 kg bearing heating capacity - 200–240 V/50–60 Hz

Standard swivel arm for large size yoke
Capable of heating a 97 kg (213 lb) bearing in less than 20 minutes, saving time and energy
2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption
Temperature mode pre–set at 110 °C (230 °F) to help prevent bearing over–heating
Automatic demagnetisation
3 years warranty

View Product Details

List Price: $14,293.88

Your Price: $7,257.03

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	SKF TIH 100M/230V Medium induction heater with a 120 kg bearing heating capacity - 200& ...	SKF TIH 100M/MV Medium induction heater with a 120 kg bearing heating capacity - 400& ...
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

SKF TIH 100M/230V Accessories

Choose a Category

for the SKF TIH 100M/230V

SKF TIH RC Replacement Wired Remote Control for TIH 030m/100m/220m Induction Heaters

Catalog: TIH RC

(0)

In Stock!

Add to Cart

SKF LGAF 3E/0.5 Anti-fretting agent, 0.5 kg can

Catalog: LGAF 3E/0.5

(0)

In Stock!

Add to Cart

SKF TMBA G11 Heat resistant gloves (Safe handling of components up to 150 °C (302 °F))

Catalog: TMBA G11

(0)

In Stock!

Add to Cart

SKF TMBA G11ET Extreme Temperature Gloves (Size: 10 (EN 420 size), Maximum temperature...

Catalog: TMBA G11ET

(0)

In Stock!

Add to Cart

SKF TMBA G11H Heat and oil resistant gloves (Material Polyaramid, Size 10, Maximum...

Catalog: TMBA G11H

(0)

In Stock!

Add to Cart

SKF TIH 100-Y3 Yoke 20 x 20 x 296 mm

Catalog: TIH 100-Y3

(0)

In Stock!

Add to Cart

SKF TIH 100-Y4 Yoke 28 x 28 x 296 mm

Catalog: TIH 100-Y4

(0)

In Stock!

Add to Cart

SKF TIH 100-Y6 Yoke 40 x 40 x 296 mm

Catalog: TIH 100-Y6

(0)

In Stock!

Add to Cart

SKF TIH 100-Y8 Optional Yoke 56 x 56 x 296mm (2.2 x 2.2 x 11.6in)

Catalog: TIH 100-Y8

(0)

In Stock!

Add to Cart

SKF TIH P20 Magnetic Temperature probe K type including cable and plug

Catalog: TIH P20

(0)

In Stock!

Add to Cart

SKF TIH T1 Induction heater trolley, 900 kg (1 934 lb)

Catalog: TIH T1

(0)

In Stock!

Add to Cart

SKF TIH 100M/230V Medium Induction Heater

The SKF medium induction heater TIH 100m has the same high standards of efficiency and performance as the smaller heater TIH 030m, combined with increased capacity. The advanced design of the power electronics allows features of accurate electric current control, cut-outs to avoid overheating, controls on rate of temperature increase, these are as some of the standard features in the TIH Series range.

Placing the induction coil outside the heater’s housing allows the heating of bearings weighing up to 120 kg (264 lb). The heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 100m is equipped with a time mode for heating components other than bearings. The heater is supplied standard with three yokes and is available in two executions: 230V/50-60Hz or 400-460V/50-60Hz.

General Specification
SKF m20 performance	97 kg (213 lb)
Voltage, V/Hz	TIH 100M/230V	230V/50-60Hz
	TIH 100M/MV	400-460V/50-60Hz
Work piece	Maximum weight	120 kg (264 lb)
	Maximum bore diameter	20 - 400 mm (0.8 - 15.7 in.)
Temperature control	Range	0 - 250 °C (32 - 482 °F)
	Magnetic probe	Yes, K-type
	Accuracy (electronics)	± 2 °C (± 3,6 °F)
Time control	Range	0 - 60 minutes
	Accuracy	± 0,01 sec.
Maximum temperature (approx.)	400 °C (750 °F)
Thermometer mode	Yes
Bearing mode	Yes
Power reduction	2-step; 50 - 100%
Demagnetisation according to SKF norms (automatic)	Yes (<2 A/cm)
Can heat sealed bearings	Yes
Can heat pre - greased bearings	Yes
Error guiding codes	Yes
Thermal overload protection	Yes
Maximum magnetic flux	1,7 T
Control panel	Key board with LED in remote control
Operating area (w × h)	155 × 205 mm (6.1 × 8.0 in.)
Coil diameter	110 mm (4.3 in.)
Dimensions (w × d × h)	570 × 230 × 350 mm (22.4 × 9.0 × 13.7 in.)
Total weight, including yokes	42 kg (92 lb)
Maximum power consumption	3,6 kVA (230V)
Number of standard yokes	3
Standard yokes	56 × 56 × 296 mm (2.2 × 2.2 × 11.7 in.), for heating bearings with bore diameter of 80 mm (3.1 in.) and larger
	28 × 28 × 296 mm (1.1 × 1.1 × 11.7 in.), for heating bearings with bore diameter of 40 mm (1.6 in.) and larger
	14 × 14 × 296 mm (0.6 × 0.6 × 11.7 in.), for heating bearings with bore diameter of 20 mm (0.8 in.) and larger
Core cross section	56 × 56 mm (2.2 × 2.2 in.)
Yoke storage	Yes, foldable
Sliding arm	No
Swivel arm	Yes, large yoke only
Cooling fan	No
Housing material	Steel and glass filled polyamide
Warranty period	3 years
