| Model |

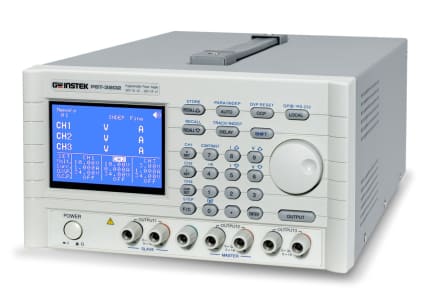

PST-3202 |
PST-3201 |
| OUTPUT |
| Voltage |
0~32Vx2, 0~6Vx1 |
0~32Vx3 |
| Current |
0~2Ax2, 0~5Ax1 |
0~1Ax3 |
| OVP |
0~33Vx2, 0~7Vx1 |
0~33Vx3 |
| LOAD REGULATION |
| Voltage |
< 3mV ( < 5mV rating current > 3.0A) |
| Current |
< 3mA ( < 5mV rating current > 3.0A) |
| LINE REGULATION |
| Voltage |
< 3mV |
| Current |
< 3mA |
| RESOLUTION |
| Voltage |
10mV |
| Current |
1mA ( 2mA, rating current >3.0A ) |
| OVP |
10mV |
| PROGRAM ACCURACY (25±5° C) |
| Voltage |
< 0.05% + 20mV |
| Current |
< 0.1% + 5mA ( + 10mA, rating current> 3.0A) |
| OVP |
< 0.05% + 20mV |
| RIPPLE & NOISE (20Hz ~ 20MHz) |
| Voltage |
Ripple≤ 1mVrms / 3mVp-p
Noise≤ 2mVrms / 30mVp-p |
| Current |
< 3mArms ( < 5mArms, rating current > 3.0A ) |
| TEMPERATURE COEFFICIENT (0~40° C ) |
| Voltage |
< 100ppm + 3mV |
| Current |
< 100ppm + 3mA |
| READBACK RESOLUTION |
| Voltage |
10mV (20mV, rating voltage >36V) |
| Current |
1mA ( 2mA, rating current > 3.0A ) |
| READBACK ACCURACY (25±5° C) |
| Voltage |
< 0.05% + 10mV (+20mV, rating voltage >36V) |
| Current |
< 0.1% + 5mA (+10mA, rating current >3.0A) |
| READBACK TEMPERATURE COEFFICIENT |
| Voltage |
< 100ppm + 10mV (+20mV, rating voltage >36V) |
| Current |
< 150ppm + 5mA ( + 10mA rating current > 3.0A ) |
| RESPONSE TIME |
| Voltage Up 10%~90% |
< 100mS |
| Voltage Down 90%~10% |
< 100mS ( >10% rating load ) |
| DRIFT |
| Voltage |
< 100ppm + 10mV (+20mV, rating voltage >36V) |
| Current |
< 150ppm + 10mA |
| TRACK OPERATION |
| Tracking Error |
≤ 0.1% + 20mV |
| Series (Load Effect) |
< 20mV |
| PARALLEL OPERATION |
| Program Accuracy (25±5° C) |
Voltage < 0.05% + 20mV
Current < 0.1% + 10mA
OVP < 0.05% + 20mV |
| Load Effect |
Voltage < 3mV ( < 5mV rating current > 3.0A)
Current < 6mA |
| Source Effect |
Voltage < 3mV
Current < 6mA |
| MEMORY |
| |
Store / Recall sets 100 set |
| TIMER |
| Setting time |
0.1 sec ~ 99 min 59 sec ( Max 99 min 59 sec x 100) |
| Resolution |
0.1 sec |
| Function |
Auto Step Running (for output working loop) |
| INTERFACE |
| |
Standard : RS-232C
Option : GPIB (IEEE488.2) |
| POWER SOURCE |
| |
AC100V/120V/220V±10%, 230V (+10%/-6%), 50/60Hz |
| ACCESSORIES |
| |
User manual x 1
Power cord x 1
Test lead GTL-104 x 3
[or European Test Lead GTL-204 x 3] |
| DIMENSIONS & WEIGHT |
| |
230(W) x 140(H) x 380(D)mm |
