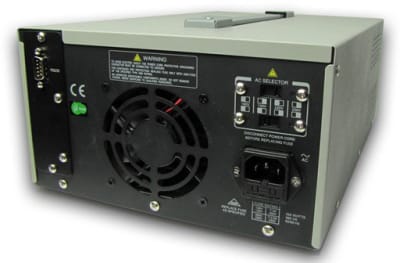

Instek PST-3201 Programmable Power Supply

Name: Instek PST-3201 Programmable Power Supply
Brand: Instek
SKU: InstekPST-3201
Price: 917.10 USD
Availability: InStock

0 reviews | Model: Instek PST-3201

Compare

Programmable DC Power Supply Triple Output 0-32V x3; 0-1A x3

0-32Vx3, 0-1Ax3
Workhorse of a power supply
Can run the outputs in SERIES or Parallel to double the current or Voltage outputs.
Digitized programmable high resolution interface
high resolution 10mV, 1mA
192 x 128 LCD display, simultaneously
Over-voltage, over-current, over temperature protection
Intelligent fan control (changes by output power)
100 Sets memory
Auto step running with timer
Provided auto series and parallel function
Labview driver available
Standard interface: RS-232C
Optional: GPIB (IEEE-488.2) this is the PST-3201GP model
Programming Manual Available via the Documents Tab below

View Product Details

List Price: $1,019.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cables - Misc
Power Supply Kits

for the Instek PST-3201

Instek GTL-232 RS-232 Cable, 9-Pin, F-F Type, Null Modem, 2000mm

Catalog: GTL-232

(0)

In Stock!

Add to Cart

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

Instek PST-3201 - 96W, 3-Channel, Programmable Linear D.C. Power Supply

An overall digitalization of programmable interface with high resolution.
The 192×128 LCD Display can appear multiple settings and measurement results simultaneously.(The display mode is changeable).
Intuitional, intelligent interface window display is convenient for user to operate the instrument.
High stability and low draft.
The function of over voltage/current/temperature protection.
Intelligent control fan (Vary with different output power.)

PST-Series Programmable Power Supply is controlled by Micro Processor Unit (MPU) that can easily connect communication interface RS-232 or GPIB to a computer in order to satisfy users’ demand for auto-testing and auto-control.

The voltage and current are completely controlled by 12 bits D/A Converter with higher resolution and accuracy. Also, the digitalization of the system makes a speedy, precise, and convenient input of information controlled by the keyboard.

The adjustment of voltage/current is made by software calibration without manual error that will increase the preciseness of the instrument. The function of Over Voltage Protection (OVP) and Over Current Protection (OCP) is set with software and detected with hardware to achieve protected functions precisely and speedily in order to secure users from danger by using the instrument.

Other Features:

Warning signal by the built-in Buzzer.
Step by step calibration procedure.
Brand new panel design and the 1/2 rack size reduction volume design.
Wheel knob of Fine and Coarse.
100 groups storage space setting.
Parallel and series operation modes.
IEEE-488.2 and SCPI compatible command setting.
0.1 sec timer for output working loop (Auto step running)
Correspond to CE safety regulation.

Programmable interface

The PST series are 3-channel, 96, or 158W, programmable linear DC power supplies. High resolution, maintained at 10mV, 1mA ( 3A). OVP, OCP, and OTP protect the PST-Series and its loads from unexpected conditions. The PST Series are capable of independent, series, or parallel operation for increased flexibility. The large LCD display conveniently displays all outputs and configurations simultaneously to simplify operation.

The programmable interface allows automatic stepping, 100 sets of memory, and comprehensive timing operations. GPIB and RS232C interfaces, Labview driver,s and SCPI compatibility allow easy ATE software development and remote control. The versatile PST-Series is ideal for high resolution, multiple outputs, and automated operations such as production testing and rack mounting systems.

Model	PST-3202	PST-3201
OUTPUT
Voltage	0~32Vx2, 0~6Vx1	0~32Vx3
Current	0~2Ax2, 0~5Ax1	0~1Ax3
OVP	0~33Vx2, 0~7Vx1	0~33Vx3
LOAD REGULATION
Voltage	< 3mV ( < 5mV rating current > 3.0A)
Current	< 3mA ( < 5mV rating current > 3.0A)
LINE REGULATION
Voltage	< 3mV
Current	< 3mA
RESOLUTION
Voltage	10mV
Current	1mA ( 2mA, rating current >3.0A )
OVP	10mV
PROGRAM ACCURACY (25±5° C)
Voltage	< 0.05% + 20mV
Current	< 0.1% + 5mA ( + 10mA, rating current> 3.0A)
OVP	< 0.05% + 20mV
RIPPLE & NOISE (20Hz ~ 20MHz)
Voltage	Ripple≤ 1mVrms / 3mVp-p Noise≤ 2mVrms / 30mVp-p
Current	< 3mArms ( < 5mArms, rating current > 3.0A )
TEMPERATURE COEFFICIENT (0~40° C )
Voltage	< 100ppm + 3mV
Current	< 100ppm + 3mA
READBACK RESOLUTION
Voltage	10mV (20mV, rating voltage >36V)
Current	1mA ( 2mA, rating current > 3.0A )
READBACK ACCURACY (25±5° C)
Voltage	< 0.05% + 10mV (+20mV, rating voltage >36V)
Current	< 0.1% + 5mA (+10mA, rating current >3.0A)
READBACK TEMPERATURE COEFFICIENT
Voltage	< 100ppm + 10mV (+20mV, rating voltage >36V)
Current	< 150ppm + 5mA ( + 10mA rating current > 3.0A )
RESPONSE TIME
Voltage Up 10%~90%	< 100mS
VVoltage Down 90%~10%	< 100mS ( >10% rating load )
DRIFT
Voltage	< 100ppm + 10mV (+20mV, rating voltage >36V)
Current	< 150ppm + 10mA
TRACK OPERATION
Tracking Error	≤ 0.1% + 20mV
Series (Load Effect)	< 20mV
PARALLEL OPERATION
Program Accuracy (25±5° C)	Voltage < 0.05% + 20mV Current < 0.1% + 10mA OVP < 0.05% + 20mV
Load Effect	Voltage < 3mV ( < 5mV rating current > 3.0A) Current < 6mA
Source Effect	Voltage < 3mV Current < 6mA
MEMORY
	Store / Recall sets 100 set
TIMER
Setting time	0.1 sec ~ 99 min 59 sec ( Max 99 min 59 sec x 100)
Resolution	0.1 sec
Function	Auto Step Running (for output working loop)
INTERFACE
	Standard : RS-232C Option : GPIB (IEEE488.2)
POWER SOURCE
	AC100V/120V/220V±10%, 230V (+10%/-6%), 50/60Hz
ACCESSORIES
	User manual x 1 Power cord x 1 Test lead GTL-104 x 3 [or European Test Lead GTL-204 x 3]
DIMENSIONS & WEIGHT
	230(W) x 140(H) x 380(D)mm Approx. 10 kg

Tech Specs

Power Supplies/DC Power Supplies Template
Outputs	Triple
Voltage Output 1	Variable
Max Voltage Output 1	32 V
Programmable	Yes
Current Output 1	Variable
Max Current Output 1	1 A
Voltage Output 2	Variable
Max Voltage Output 2	32 V
Current Output 2	Variable
Max Current Output 2	1 A
Voltage Output 3	Variable
Max Voltage Output 3	32 V
Current Output 3	Variable
Max Current Output 3	1 A
Meter Type	Digital
Switching	No
Linear/Switching	Linear
Max Display Resolution Current	1 mA
Max Display Resolution Voltage	10 mV
Constant current/voltage	Yes
Remote Sensing	No
Test Equipment General Attributes
Safety Approval	CSA
Interfaces I/O	GPIB, RS-232 Interfaces I/O GPIB optional
Product Weight	10 KILOS (22.05 LBS)
Product Height	140 MM (5.51 IN)
Product Length	380 MM (14.96 IN)
Product Width	230 MM (9.06 IN)
Data Logging	No
HTS/Schedule B Number	8504.40.9510
ECCN Number	EAR99
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China
Shipping Height	9.50 IN
Shipping Length	19.00 IN
Shipping Width	13.00 IN

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

Yes you can connect the outputs of the PST-3201 power supply in series or parallel. The unit has an auto function that will allow the unit to work in these modes to double the current or voltage depending if the unit is in series or parallel mode.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous

Answers (1) - Asked by Anonymous

I have this question too (0)

Yes you can add part number PST-GPIB to a unit words to upgrade the unit!

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
