| CT6862 |

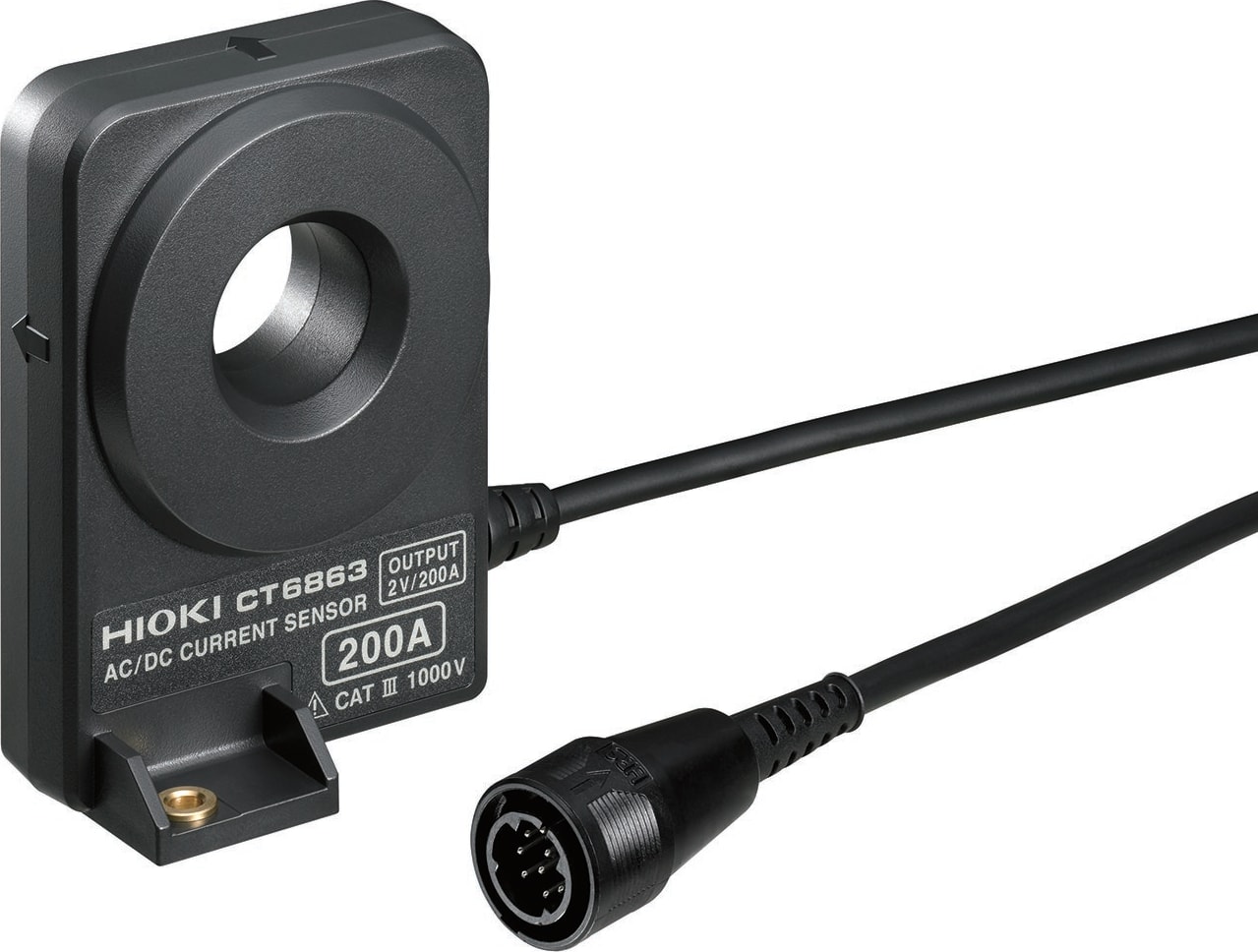

CT6863 |
| Rated current |
50 A AC/DC |
200 A AC/DC |
| Max. allowable input |
100 A continuous (requires derating at frequency or temperature) |
400 A continuous (requires derating at frequency or temperature) |
| Frequency characteristics |
Amplitude: DC to 1 MHz
Phase: DC to 300 kHz |
Amplitude: DC to 500 kHz
Phase: DC to 300 kHz |
| Amplitude and Phase accuracy |
DC ±0.05 % rdg. ±0.01 % f.s. (Phase: Not be defined)
16 Hz = f = 400 Hz ±0.05 % rdg. ±0.01 % f.s. (Phase: ±0.2 deg)
Be defined to 1 MHz |
DC ±0.05 % rdg. ±0.01 % f.s. (Phase: Not be defined)
16 Hz = f = 400 Hz ±0.05 % rdg. ±0.01 % f.s. (Phase: ±0.2 deg)
Be defined to 500 kHz |
| Power consumption |
5 VA max. (at 50 A/55 Hz, ±12 V power requirement) |
6 VA max. (at 50 A/55 Hz, ±12 V power requirement) |
| Output voltage |
2 V/rated current range (voltage output with the Sensor Unit 9555-10, use with a device having a 1 Mohm input resistance or higher) |
| Max. rated voltage to earth |
AC/DC 1000 V (50/60 Hz, CAT III ) |
AC/DC 1000 V (50/60 Hz, CAT III ) |
| Core diameter |
24 mm (0.94 in) |
24 mm (0.94 in) |
| Operating temperature, humidity |
-30°C to +85°C (86°F to 185°F), 80% rh or less (with no condensation) |
| Power requirements |
DC ±11 V to ±15 V (Power suppled via the 9555-10, 9555-10 requirement with 100 to 240 V AC) |
| Dimensions, mass |
70W (2.76 in) × 100H (3.94 in) × 53D (2.09 in) mm, Cord length: 3 m (9.84 ft), 340 g (12.0 oz) |
70W (2.76 in) × 100H (3.94 in) × 53D (2.09 in) mm, Cord length: 3 m (9.84 ft), 350 g (12.3 oz) |
| Supplied accessories |
Mark bands × 6, Operating manual × 1 |
