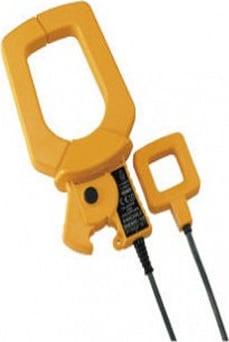

| Measurement range |
0 to 1000 A AC (50/60 Hz, continuous use), Maximum 1500 A AC (50/60 Hz, 5 minutes or shorter) |
| Accuracy (at 45 to 66 Hz) |
Amplitude: ±1.5 % rdg. at primary current 10 to 1500 A
Phase: ±1.0 ° max. at primary current 10 to 1500 A |
| Frequency characteristics |
Amplitude: 40 to 1 kHz / ±1 % rdg. , 20 to 4 kHz / ±2.5 % rdg.
Phase: 40 to 1 kHz / ±1.0 ° max. , 20 to 4 kHz / ±3.0 ° max. |
| Max. Circuit Voltage |
600 V AC rms (insulated wire) |
| Core jaw dia. |
Ø55 mm (2.17 in) or 80 mm (3.15 in) width busbar |
| Secondary Core dia. |
27 mm(1.06 in) × 27 mm(1.06 in) |
| Dimensions |
99 mm(3.90 in)W × 194 mm(7.64 in)H × 33 mm(1.30 in)D |
