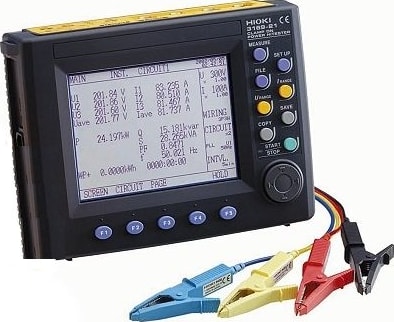

| Measurement Line Type: |
Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, and three-phase 4-wire systems (50/60 Hz) |
| Number of Systems That Can be Measured: |
Single-phase: 1P2W 4 systems, 1P3W 2 systems
Three-phase: 3P3W2M (measures the voltage and current for two lines) 2 systems, 3P3W3M (measures the voltage and current for all three lines) 1 system, 3P4W (measures the voltage and current for three lines) 1 system, 3P4W4I (measures the voltage for three lines and the current for four lines) 1 system |
| Measurement Item: |
Voltage, current, active power, reactive power, apparent power, power factor, integrated value, frequency, harmonics |
| Measurement Range: |
Voltage: 150 V to 600 V, 3 ranges
Current (When using 9660): 5 A to 100 A, 4 ranges
Current (When using 9661): 5 A to 500 A, 5 ranges
Current (When using 9669): 100 A to 1 kA, 3 ranges
Current (When using 9667): 500 A / 5 kA, 2 ranges
Current (When using 9694): 0.5 A to 5 A, 3 ranges
Power: 75 W to 9 MW, 108 combination patterns |
| Basic Accuracy: |
±0.2% rdg. ±0.1% f.s. + clamp-on sensor accuracy (active power, at 45 to 66 Hz) |
| Clamp Sensor Accuracy: |
9660 (rated for 100 A): ±0.3% rdg. ± 0.02% f.s.
9661 (rated for 500 A): ±0.3% rdg. ±0.01% f.s.
9669 (rated for 1000 A): ±1.0% rdg. ±0.01% f.s.
9667 (rated for 5000 A): ±2.0% rdg. ±1.5 mV
9694 (rated for 5 A): ±0.3% rdg. ±0.02% f.s.
* f.s. is the sensor's rated primary current value. |
| Frequency Characteristics: |
Fundamental waveforms up to the 50th order ±3% f.s. + measurement accuracy (of a 45- to 66-Hz fundamental waveform) |
| Other Functions: |
PC card (1 slot, PC Card Standerd-compliant Type II, Flash ATA card type)
RS-232C (Printer or PC connected to an RS-232C interface)
D/A output (3169-21 only, 4 channels)
External I/O |
| Display Update Rate: |
Approx. every 0.5 seconds
(except when using a PC card while accessing the internal memory, or when performing RS-232C communications) |
| Power Supply: |
100 to 240 V AC, 50/60 Hz |
| Dimensions: |
210mm W × 160mm H × 60mm D ±5 mm (excluding protrusions) |
| Weight: |
1.2 kg ±100 g |
| Accessories: |
9438-03 voltage cord set (1) (1 cord each of black, red, yellow, and blue), voltage cord (1), power cord (1), input cord label (1), operating manuals (2) (Advanced edition and Quick Start Guide), CD-R (1) (Advanced edition and RS-232C interface operating manuals), 9441 connection cable (1) (for the 3169-21 only) |
