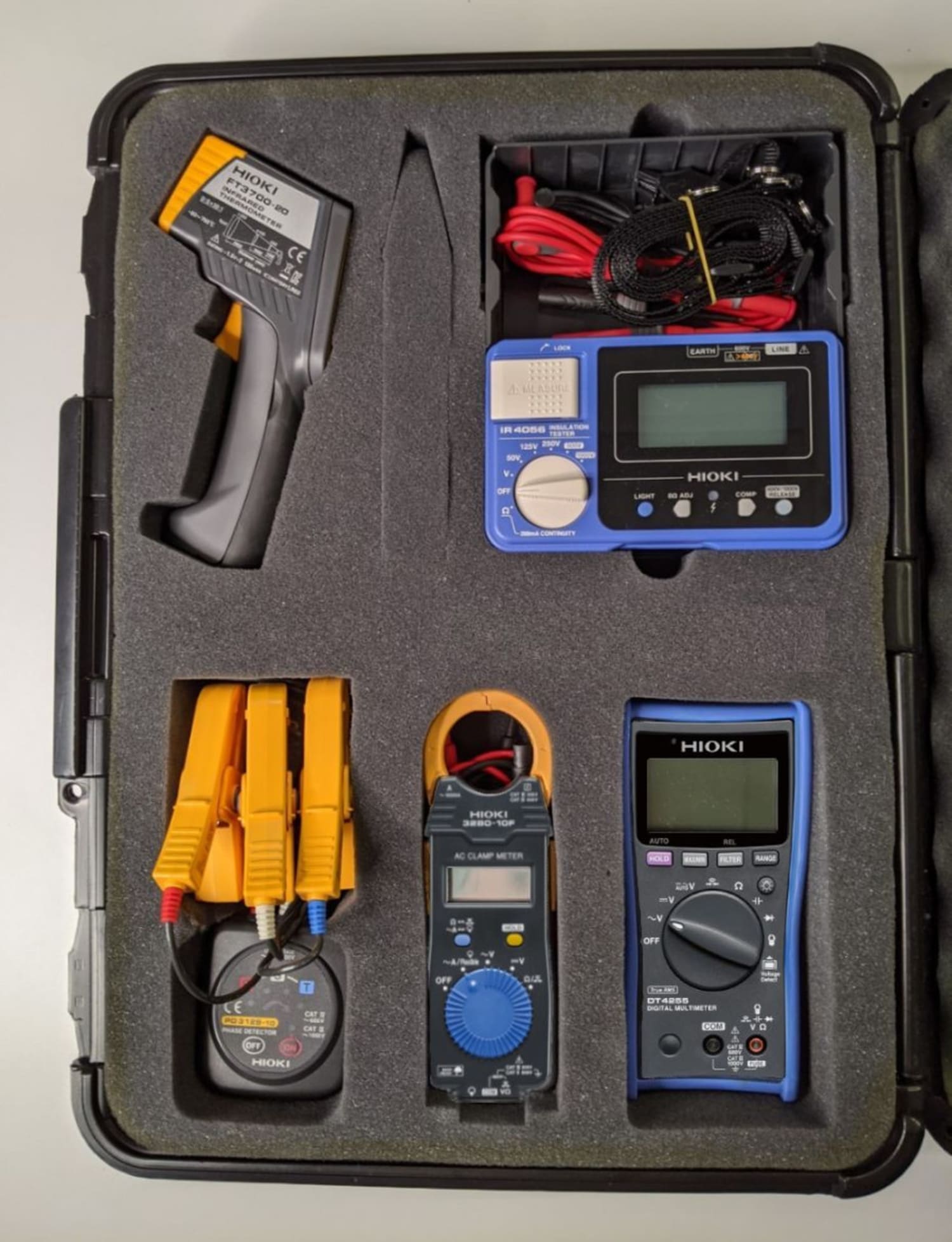

Hioki HPK-3 KIT Specifications |
Voltage Detector (3120) |
Measurement function |
Voltage detection |
Measurement voltage |
70 to 1000 VAC, 50/60 Hz (when in contact with an IV 2 mm^2 or equivalent insulated wire) |
Pilot light |
The red LED lights up and the buzzer sounds when the wire is live |
Battery check |
Green LED |
Power supply |
R03 (AAA) manganese or LR03 (AAA) alkaline battery x2, Continuous use: 200 hr (using the LR03 batteries) |
Dimensions and mass |
149 mm (5.87 in) H x φ 18.5 mm (0.73 in), 38 g (1.3 oz) |
Accessories |
Instruction manual x1, R03 (AAA) manganese battery x2 (for trial purposes only) |
Infrared Thermometer (FT3700-20) |
Measurement temperature range |
-60.0°C to 550.0°C (-76°F to 1022°F), 0.1°C resolution |
Accuracy |
-35.0°C to -0.1°C (-31.0°F to 31.9°F) : ±10 %rdg. ±2°C
0.0°C to 100.0°C (-32.0°F to 212.0°F) : ±2°C
100.1°C to 500.0°C (212.1°F to 932.0°F) : ±2% rdg.
Note: -60.0°C to -35.1°C (-76.0°F to -31.1°F), and over 500.1°C (932.0°F), Accuracy not specified |
Response time |
1 sec (90%) |
Measurement wavelength |
8 to 14 µm |
Thermal emissivity compensation |
ε=0.10 to 1.00 (0.01 step) |
Measurement field diameter |
ε=0.10 to 1.00 (0.01 step) |
Sighting |
Two-beam laser marker Max 1 mW (class 2), Red |
Functions |
Continuous measurement mode, MAX/ MIN/ DIF (MAX - MIN)/ AVG measurement, Alarm, Backlight, Auto power-off |
Power supply |
LR03 (AAA) alkaline battery x2, 150 mVA, Continuous use of 140 hours (With laser marker, backlight and buzzer are OFF) |
Dimensions and mass |
48 mm (1.89 in) W x 172 mm (6.77 in) H x 119 mm (4.69 in) D, 256 g (9.0 oz), (including batteries) |
Accessories |
Instruction manual x1, LR03 alkaline battery x2, Carrying case x1 |
AC Clamp Meter (3280-10F) |
AC Current range |
41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt. |
DC Voltage range |
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
AC Voltage range |
4.199 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified), Basic accuracy: ±1.8 % rdg. ±7 dgt. |
Crest factor |
N/A |
Resistance range |
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. |
Other functions |
Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
Display |
LCD, max. 4199 dgt., Display refresh rate: 400 ms |
Environmental protection |
IP40 dustproof and waterproof |
Power supply |
Coin type lithium battery (CR2032) x1, Continuous use 120 hours |
Core jaw dia. |
φ 33 mm (1.30 in) |
Dimensions and mass |
57 mm (2.24 in) W x 175 mm (6.89 in) H x 16 mm (0.63 in) D, 100 g (3.5 oz) |
Accessories |
CARRYING CASE 9398 x1, TEST LEAD L9208 x1, Coin type lithium battery (CR2032) x1, Instruction manual x1 |
Digital Multimeter (DT4255) |
DC Voltage range |
600.0 mV to 1000 V
5 ranges, Basic accuracy: ±0.3 % rdg. ±3 dgt. |
AC Voltage range |
6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz
Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
AUTO AC/DCV |
Yes |
Resistance range |
600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±3 dgt. |
DC Current range |
N/A |
From 4 to 20mA Percentage conversion display |
N/A |
AC Current range (use with Clamp on probes) |
10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
Temperature (thermocouples) |
N/A |
Voltage detection |
Hi: AC40 V to 600 V, Lo: AC80 V to 600 V |
Capacitance range |
1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt. |
Frequency range |
99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage), Basic accuracy: ±0.1 % rdg. ±1 dgt. |
Continuity check |
Continuity threshold [ON]: 25 Ω or less, [OFF]: 245 Ω or more, Response time: 0.5 ms or more |
Diode test |
Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V |
Other functions |
Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option) |
Display |
Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph |
Display refresh rates |
5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s) |
Power supply |
LR03 alkaline batteries x4, Continuous use: 130 hours (backlight OFF) |
Dimensions and mass |
84 mm (3.31 in) W x 174 mm (6.85 in) H x 52 mm (2.05 in) D, 390 g (13.8 oz) (including batteries and holster) |
Accessories |
Test lead L9207-10 x1, Holster x1, Instruction manual x1, LR03 alkaline battery x4 |
Insulation Tester (IR4056-20) |
Rated output voltage |
50 V DC |
125 V DC |
250 V DC |
500 V DC |
1000 V DC |
Effective maximum indicated value |
100 MΩ |
250 MΩ |
500 MΩ |
2000 MΩ |
4000 MΩ |
Accuracy
1st effective measuring range MΩ |
±2 % rdg. ±2 dgt.
0.200 - 10.00 |
±2 % rdg. ±2 dgt.
0.200 - 25.0 |
±2 % rdg. ±2 dgt.
0.200 - 50.0 |
±2 % rdg. ±2 dgt.
0.200 - 500 |
±2 % rdg. ±2 dgt.
0.200 - 1000 |
Lower limit resistance |
0.05 MΩ |
0.125 MΩ |
0.25 MΩ |
0.5 MΩ |
1 MΩ |
Overload protection |
600 V AC (10s) |
660 V AC (10s) |
DC voltage range |
4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges, Accuracy: ±1.3 % rdg. ±4 dgt., Input resistance: 100 kΩ or higher |
AC voltage range |
420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz, Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier |
Low resistance range |
For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less) |
Display |
Semi-transmissive FSTN LCD with back lighting, bar-graph indicator |
Response time |
Approx. 0.8 second for PASS/FAIL decision (based on in-house testing) |
Other functions |
Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save |
Power supply |
LR6 (AA) alkaline batteries x4, Continuous use: 20 hours (Comparator off, backlight off, 500 V range, no load) |
Number of measurements |
1000 times (at 5 s ON, 25 s OFF cycle, insulation measurement of lower limit resistance value to maintain nominal output voltage) |
Dimensions and mass |
159 mm (6.26 in) W x 177 mm (6.97 in) H x 53 mm (2.09 in) D, 600 g (21.2 oz) (including batteries, excluding test leads) |
Accessories |
[IR4056-20] Test lead L9787 x1, Neck strap x1, Instruction manual x1, LR6 (AA) alkaline batteries x4 [IR4056-21] Test lead set with remote switch L9788-11 x1, Neck strap x1, Instruction manual x1, LR6 (AA) alkaline batteries x4 |
Phase Detector (PD3129-10) |
Functions |
Phase detection (positive and negative) |
Voltage detection method |
Static induction |
Voltage range |
70 to 1000 V AC (50/60 Hz) (sine wave, continuous input) |
Frequency range |
45 Hz to 66 Hz |
Object to be connected |
7 mm (0.28 in) to 40 mm (1.57 in) of insulated wiring |
Display |
Phase detection : Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up
Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously |
Battery check function |
Power ON lamp: lights up (Power ON), blinks (Battery LOW) |
Auto power off |
Auto shut off if no activity is detected after power is turned ON for 15 minutes |
Power supply |
R6P (AA) manganese battery x2, Continuous use: 70 hr |
Dimensions and mass |
70 mm (2.76 in) W x 75 mm (2.95 in) H x 30 mm (1.18 in) D, 240 g (8.5 oz), Cord length : 0.7 m (2.30 ft) |
Accessories |
Carrying case x1, Strap x1, Spiral tube x1, Instruction manual x1, R6P (AA) manganese battery x2 |
