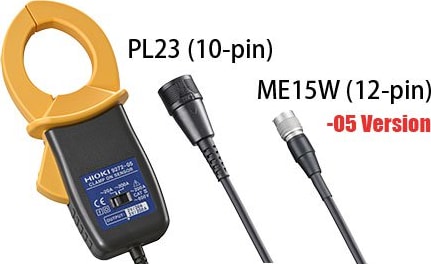

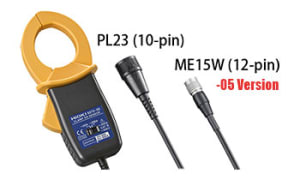

Hioki 9272-05 AC Current Probe

Name: Hioki 9272-05 AC Current Probe
Brand: Hioki
SKU: Hioki9272-05
Price: 605.00 USD
Availability: InStock

0 reviews | Model: Hioki 9272-05

Compare

AC Current Probe (20A/200A)

AC Current Probe (20A/200A)
20/200 A AC, ME15W terminal
Superior low frequency and phase characteristics suitable for testing the current and power of inverter control devices
Wide 1 Hz to 100 kHz frequency bandwidth perfect for harmonic analysis, FFT analysis and waveform monitoring
Current sensors are best-in-class devices for use with power meters
For measuring low frequency equipment such as inverters

View Product Details

Your Price: $605.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Hioki 9272-05 AC Current Probe (20A/200A)	Hioki CT6841 High-precision Current Transformer - 20A AC/DC	Hioki CT6845 AC/DC Current Probe (500A DC-100kHz)	Hioki CT6846 AC/DC Current Probe (1000A DC-20kHz)	Hioki CT6862-05 AC/DC Current Sensor (50A) for PW6001	Hioki CT6863 AC/DC Current Sensor (200A)	Hioki CT6863-05 AC/DC Current Sensor (200A 500kHz) for PW6001
Price
In Stock
Type (Current Clamp Adaptors	CT	CT				CT
Maximum Current AC	200 A	20 A				50 A
Maximum Conductor Size	1.81 IN	0.79 IN				0.94 IN
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hioki 9272-05 Accessories

Choose a Category

for the Hioki 9272-05

Hioki CT9555 Power Supply for -05 (12-pin) CTs. Waverform-output only. Use with Loggers.

Catalog: CT9555

(0)

In Stock!

Add to Cart

Hioki CT9556 Power Supply for -05 (12-pin) CTs. Waverform or RMS output. Use with...

Catalog: CT9556

(0)

In Stock!

Add to Cart

Hioki CT9557 Quad-Output Power Supply for -05 (12-pin) CTs. Waverform or RMS value output

Catalog: CT9557

(0)

In Stock!

Add to Cart

Hioki L9217-01 Connection Cord (BNC to BNC, 3 m)

Catalog: L9217-01

(0)

In Stock!

Add to Cart

Hioki L9217-02 Connection Cord (BNC-BNC, 10 m)

Catalog: L9217-02

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Hioki 9272-05 - AC Current Probe

Superior low frequency and phase characteristics suitable for testing the current and power of inverter control devices
Wide 1 Hz to 100 kHz frequency bandwidth perfect for harmonic analysis, FFT analysis and waveform monitoring
Current sensors are best-in-class devices for use with power meters

Hioki current sensors are best-in-class devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The 9272-10/9272-05 are a 1 to 100 kHz AC current sensor ideal for measuring low frequency equipment such as inverters.

General Specifications
Rated current	20 A AC, or 200 A AC (selectable)
Max. allowable input	50 A rms (at 20 A range), 300 A rms (at 200 A range)
Frequency characteristics	1 Hz (±2 % rdg. ±0.1 % f.s.) to 100 kHz (±30 % rdg. ±0.1 % f.s.)
Amplitude and Phase accuracy	Amplitude: ±0.3 % rdg. ±0.01 % f.s. Phase: ±0.2 ° (45 to 66 Hz)
Output voltage	2 V/20 A rated current range, or 2 V/200 A rated current range (voltage output with the Sensor Unit, use with a device having a 1 MΩ input resistance or higher)
Max. rated voltage to earth	600 V rms (CAT III)
Core diameter	φ 46 mm (1.81 in)
Power supply	±11 V to ±15 V DC (Power suppled via the Sensor Unit, which supports 100 to 240 V AC)
Power consumption	5 VA Max. (when measuring 200 A)
Dimensions and mass	78 mm (3.07 in) W × 188 mm (7.40 in) H × 35 mm (1.38 in) D, 430 g (15.2 oz), cord length: 3 m (9.84 ft)
Accessories	Carrying case 9355 ×1, Instruction manual ×1, Mark bands ×6
Compatible models	9272-10	9272-05
Power Analyzer PW3390	△ (Requires CT9900)	Ok
Power Analyzer 3390	Ok	△ (Requires CT9901)
Power HiTester 3193 series	Ok	△ (Requires CT9901)
Current Unit 8971	△ (Requires the 9318)	△ (Requires the 9318, CT9901)
F/V Unit 8940	△ (Requires the 9318, the 9705)	△ (Requires the 9318, the 9705, CT9901)

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	200 A
Maximum Conductor Size	1.81 IN
Test Equipment General Attributes
Product Weight	0.44 LBS
Product Height	3.20 IN
Product Length	11.20 IN
Product Width	6.25 IN
ECCN Number	3A992
Country of Origin	Japan
Shipping Height	3.20 IN
Shipping Length	11.20 IN
Shipping Width	6.25 IN
