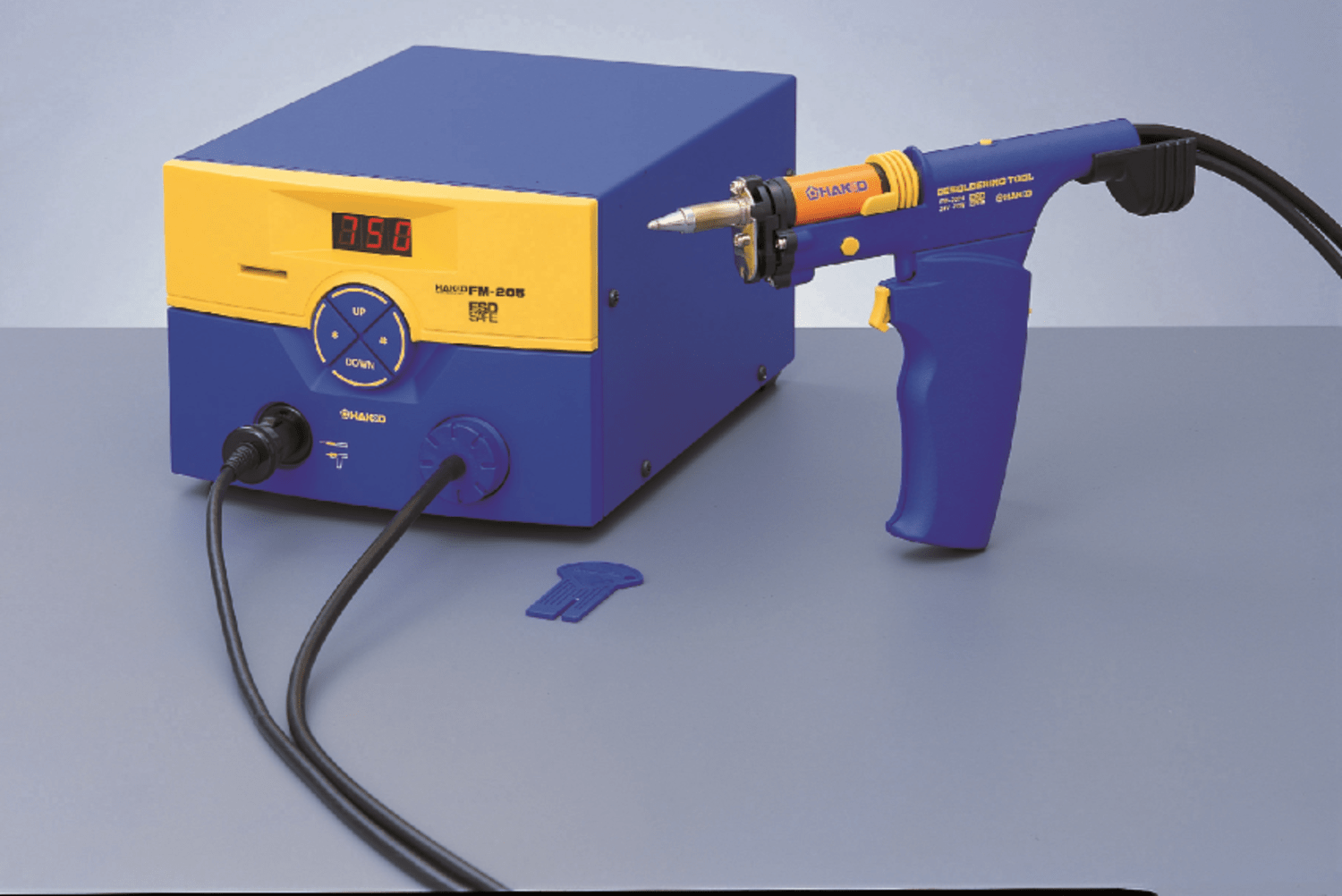

Hakko FM205-01 - Soldering/Desoldering Station (Shop Air Required) with FM-2024 Desoldering Tool

Name: Hakko FM205-01 - Soldering/Desoldering Station (Shop Air Required) with FM-2024 Desoldering Tool
Brand: Hakko
SKU: HakkoFM205-01
Price: 547.36 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | Catalog: FM205-01 | UPC: 4962615031335 | Model: Hakko FM205-01

Images (11) | Videos (2)

Compare

STATION, DSDRG, SHOP AIR, ESD, w/o NOZZLE, FM-205

Single port soldering and desoldering station
Shop air model
Requires an external source of compressed air to operate
If you do not have shop air, please see model FM-204
Includes FM-2024 desoldering tool
FM-2024 is compatible with N3 series nozzles
Nozzles sold separately
Temperature range: 400 - 840 °F / 200 - 450 °C
Temperature accuracy: ±15°C
Also compatible with FM-2027 soldering iron

View Product Details

List Price: $576.17

Your Price: $547.36

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Hakko FM205-01 STATION, DSDRG, SHOP AIR, ESD, w/o NOZZLE, FM-205	Hakko FM204-01 STATION, DSDRG, ESD, w/o NOZZLE, FM-204	Hakko FM204-CP SET, CONVERSION PORT, FM204-01 + FM2027-03
Rating	(2)	(5)	(7)
Price
In Stock
Functionality (Soldering Equipment)	Soldering, Vacuum (Desoldering)	Soldering, Vacuum (Desoldering)	Soldering, Vacuum (Desoldering)
Channels	1	1	1
Display Type	Digital	Digital	Digital
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hakko FM205-01 Accessories

Choose a Category

for the Hakko FM205-01

MicroCare MCC-CCH10A Universal Contact Cleaner

Catalog: MCC-CCH10A

(0)

In Stock!

Add to Cart

Hakko B1086 Cleaning Pin 0.8mm

Catalog: B1086

(7)

In Stock!

Add to Cart

Hakko B1087 Pin, Cleaning, 1.0mm, FR-4003/4101/4102/4001/301/300, FM-2024,817/808/807

Catalog: B1087

(7)

In Stock!

Add to Cart

Hakko B1088 Pin, Cleaning, 1.3mm, FR-4003/4101/4102/4001/301/300,FM-2024,817/808/807

Catalog: B1088

(6)

In Stock!

Add to Cart

Hakko B1089 Pin, Cleaning, 1.6mm, FR-4003/4101/4102/4001/301/300,FM-2024,817/808/807

Catalog: B1089

(9)

In Stock!

Add to Cart

Hakko B2875 PIN, CLEANING, 2.0-2.3mm NOZZLE, FR-4101/4102/4001, FM-2024, 817/808/807

Catalog: B2875

(3)

In Stock!

Add to Cart

Hakko FM2024-02 TOOL, DSDRG, HANDPIECE ONLY, 24V-70W, FM-2024

Catalog: FM2024-02

(0)

In Stock!

Add to Cart

Hakko FM2024-42 CK, DSDRG, w/FH-200, w/o NOZZLE, FM-2024

Catalog: FM2024-42

(0)

In Stock!

Add to Cart

Chip Quik SMD291 Tack Flux no clean in a 10cc syringe w/plunger And tip

Catalog: SMD291

(5)

In Stock!

Add to Cart

MG Chemicals 824-450G Isopropyl Alcohol for Cleaning Electronics and Flux Removal

Catalog: 824-450G

(7)

In Stock!

Add to Cart

MicroCare MCC-BAC IPA Based Flux Remover, IsoClean

Catalog: MCC-BAC

(0)

In Stock!

Add to Cart

MicroCare MCC-CBCSK Cleaning Station Kit, TriggerGrip Tool, Bench Mount, Flux Remover,...

Catalog: MCC-CBCSK

(0)

In Stock!

Add to Cart

MicroCare MCC-DC1 No Clean Flux Remover, VeriClean

Catalog: MCC-DC1

(0)

In Stock!

Add to Cart

MicroCare MCC-DC1PEN No Clean Flux Remover Cleaning Pen

Catalog: MCC-DC1PEN

(1)

In Stock!

Add to Cart

MicroCare MCC-EC7M Slow Drying Flux Remover, Citrus-Based

Catalog: MCC-EC7M

(1)

In Stock!

Add to Cart

MicroCare MCC-FRC General Purpose Flux Remover, Flux Remover C

Catalog: MCC-FRC

(0)

In Stock!

Add to Cart

MicroCare MCC-PRO Alcohol Enhanced Flux Remover, ProClean

Catalog: MCC-PRO

(0)

In Stock!

Add to Cart

MicroCare MCC-PROWR Alcohol Enhanced Presaturated Wipes, ProClean Refill

Catalog: MCC-PROWR

(0)

In Stock!

Add to Cart

MicroCare MCC-SPR Heavy Duty Flux Remover, SuprClean

Catalog: MCC-SPR

(0)

In Stock!

Add to Cart

MicroCare MCC-VOC10A VOC-Free Flux Remover, UltraClean

Catalog: MCC-VOC10A

(0)

In Stock!

Add to Cart

Hakko FA400-04 ABSORBER, SMOKE, ESD, FA-400

Catalog: FA400-04

(15)

In Stock!

Add to Cart

Hakko FA430-KIT1 SMOKE ABSORBER, w/C1571, FA-430

Catalog: FA430-KIT1

(23)

In Stock!

Add to Cart

Hakko FA430-KIT2 SMOKE ABSORBER, w/C1572, FA-430

Catalog: FA430-KIT2

(2)

In Stock!

Add to Cart

OC White Green-Lite 5in Round Green-Lite 5” round magnifier – product selection tool

(0)

In Stock!

Configure Yours

OC White Green-Lite 6in Round Green-Lite 6” round magnifier – product selection tool

(0)

In Stock!

Configure Yours

OC White Green-Lite 7 x 5.25in Green-Lite 7 x 5.25” rectangular magnifier – product...

Catalog: Green-Lite

(1)

In Stock!

Configure Yours

OC White Green-Lite 7.5in Round Green-Lite 7.5” round magnifier – product selection tool

(0)

In Stock!

Configure Yours

Hakko N3-06 NOZZLE, 0.6mm, FM-2024

Catalog: N3-06

(3)

In Stock!

Add to Cart

Hakko N3-08 NOZZLE, 0.8mm, FM-2024

Catalog: N3-08

(4)

In Stock!

Add to Cart

Hakko N3-10 NOZZLE, 1.0mm, FM-2024

Catalog: N3-10

(5)

In Stock!

Add to Cart

Hakko N3-13 NOZZLE, 1.3mm, FM-2024

Catalog: N3-13

(1)

In Stock!

Add to Cart

Hakko N3-16 NOZZLE, 1.6mm, FM-2024

Catalog: N3-16

(4)

In Stock!

Add to Cart

Hakko N3-20 NOZZLE, 2.0mm, FM-2024

Catalog: N3-20

(3)

In Stock!

Add to Cart

Hakko N3-23 NOZZLE, 2.3mm, FM-2024

Catalog: N3-23

(3)

In Stock!

Add to Cart

Hakko N3-L10 NOZZLE, EXTRA LONG, 1.0mm, FM-2024

Catalog: N3-L10

(1)

In Stock!

Add to Cart

Panavise 201 PV JR. COMBINATION VISE HEAD AND BASE

Catalog: 201

(0)

In Stock!

Add to Cart

Panavise 301 STANDARD PANAVISE

Catalog: 301

(0)

In Stock!

Add to Cart

Sensepeek PC BITE KIT SP10 TW PCBite kit with 4x SP10 probes and test wires

Catalog: 4003

(3)

In Stock!

Add to Cart

Hakko B1069 Vacuum Ejector for 471/473/C1492

Catalog: B1069

(0)

In Stock!

Add to Cart

Hakko B1070 Ejector

Catalog: B1070

(0)

In Stock!

Add to Cart

Hakko B2756 TRAY, TIP, T9/T15/T16/T22/T30/T31/T33/N3/N4

Catalog: B2756

(4)

In Stock!

Add to Cart

Hakko B2962 Solenoid Valve for Hakko C1492/FM-205

Catalog: B2962

(0)

In Stock!

Add to Cart

Hakko B2972 CARD, CONTROL, FM-205/204/203, FX-951, FR-803B/802

Catalog: B2972

(1)

In Stock!

Add to Cart

Hakko FM2026-01 CONNECTOR ASSY, SDRG, N2, w/ACC., FM-2026

Catalog: FM2026-01

(0)

In Stock!

Add to Cart

Hakko FM2026-02 CONNECTOR ASSY, SDRG, HANDPIECE ONLY, N2, FM-2026

Catalog: FM2026-02

(0)

In Stock!

Add to Cart

Hakko FM2026-06 CK, SDRG, N2, w/FH-200, FM-2026

Catalog: FM2026-06

(0)

In Stock!

Add to Cart

Hakko FM2026-KIT KIT, FM2026-01 + FX791-01

Catalog: FM2026-KIT

(0)

In Stock!

Add to Cart

Hakko FM2027-01 Soldering Iron with Sleeve and Heat Resistant Pad (Tips and Stand Sold...

Catalog: FM2027-01

(7)

In Stock!

Add to Cart

Hakko FM2027-02 Handpiece Only (Does Not Include Other Accessories)

Catalog: FM2027-02

(1)

In Stock!

Add to Cart

Hakko FM2027-03 CK, SDRG, w/FH-200, FM-2027

Catalog: FM2027-03

(1)

In Stock!

Add to Cart

Hakko FM2027-06 CK, SDRG, GREEN SLEEVE, w/FH-200, FM-2027

Catalog: FM2027-06

(3)

In Stock!

Add to Cart

Hakko 599-029 WIRE,CLEANING,FH-400,200-83/05/01,633-01,599B

Catalog: 599-029

(7)

In Stock!

Add to Cart

Hakko 599B-02 Solder Tip Cleaning Wire and Holder

Catalog: 599B-02

(13)

In Stock!

Add to Cart

Panavise 209 VACUUM BASE PV JR.

Catalog: 209

(0)

In Stock!

Add to Cart

Panavise 350 MULTI-PURPOSE WORK CENTER

Catalog: 350

(4)

In Stock!

Add to Cart

Hakko FM205-01

Single port soldering and desoldering station
Shop air model
Requires an external source of compressed air to operate
If you do not have shop air, please see model FM-204
Includes FM-2024 desoldering tool

Soldering/Desoldering Station (Shop Air Required) with FM-2024 Desoldering Tool

The Hakko FM-205 is a single-port soldering and desoldering station which includes an FM-2024 desoldering tool. The FM-2024 is compatible with N3 nozzles. Please note, nozzles are sold separately.

Please click here to view information on N3 nozzles including part numbers, images, and dimensional information.

The FM-205 requires an external source of compressed air for operation. If you do not have shop air in your facility, please see part numbers FM204-01 and FM204-CP for a similar station, but containing a built-in pump.

The FM-2024 desoldering tool can be converted from either a pencil or gun style and uses quick change nozzles to make your workflow fast and convenient. In addition, the station activates sleep mode when a tool is returned to its holder, helping to maximize the lifespan of tips and nozzles.

Several versions available

Hakko offers multiple versions of the FM-204 and FM-205, with different accessories and functionality. A brief overview of the main differences in each can be seen below. Please see each product’s page for more detailed information.

A main differentiator between the FM-204 and FM-205 is how vacuum is generated. The FM-204 contains a built-in pump and does not require an external source of compressed air. The FM-205 does not have a built-in pump. The FM-205 requires an external source of compressed air, however, it is able to generate greater pressure and airflow.

FM204-01

Contains built in pump
Does not require an external source of compressed air to generate vacuum
Includes FM-2024 desoldering tool
Vacuum pressure: 80 kPa (24 in. Hg / 600 mm Hg)
Suction flow: 15 L/min

FM204-CP

Contains built in pump
Does not require an external source of compressed air to generate vacuum
Includes FM-2024 desoldering tool
Includes FM-2027 soldering iron
Vacuum pressure: 80 kPa (24 in. Hg / 600 mm Hg)
Suction flow: 15 L/min

FM205-01

Shop air model
Does not contain a built in pump
Requires an external source of compressed air to operate
Includes FM-2024 desoldering tool
Provides for higher vacuum pressure and increased suction flow in comparison to the FM-204
Vacuum Pressure: 93 kPa (28 in. Hg / 700 mm Hg)
Suction flow: 20 L/min

Compatible tools

The FM-204 and FM-205 are compatible with several handpieces.

FM-2024 - desoldering tool
FM-2026 - nitrogen soldering iron
FM-2027 - standard soldering iron

FM-205 desoldering station
Desoldering handpiece (FM2024-02)
Filter pipe assembly (1 pc only) (A1612)
Ceramic paper filter (A1613)
Control card (B2972)
Connecting cable (B3253)
Iron holder, sleep (w/ 599B) (FH200-05)
Cleaning drill (for heating element) (B2873)
Nozzle remover (B2876)
Heat resistant pad (B2300)
Tip tray (B2756)
Power cord (B2419)
Instruction manual
Note: nozzles sold separately

FM-204 Desoldering Station
Model Name	FM-204
Part Number	FM204-01
Power Consumption	120W
Temperature Range	200° - 450°C (400° - 840°F)
Temperature Stability	±5°C (±9°F)
Temperature Accuracy	±15°C (±27°F)

Station
Output Voltage	24V
Outer Dimensions	160(W) x 120(H) x 225(D) mm 6.3 (W) x 4.7 (H) x 8.9 (D) in.
Weight (w/o Cord)	3.7 kg (8.1 lb.)
Vacuum Generator	Vacuum pump, double cylinder
Vacuum Pressure (max.)	80 kpa (600mm Hg) (24 in. Hg)
Suction Flow	15 liters/min.

FM-2024 Desoldering Tool
Power Consumption	70W (24V)
Temperature Range	350° - 450°C (650° - 840°F)
Tip-to-Ground Resistance	< 2 ohms
Tip-to-Ground Potential	< 2mV
Cord length	1.2m (47 in.)
Total Length (w/o cord)	180 mm (7.0)
Weight (w/o cord)	65g (2.3 oz)
Cord Length	1.2m (4 ft.)

Tech Specs

Desoldering Equipment / Rework Template
Functionality (Soldering Equipment)	Soldering, Vacuum (Desoldering)
Channels	1
Display Type	Digital
Power Supply Voltage	110V
Test Equipment General Attributes
Warranty	1 YEARS
Warranty Details	1 year internal power supply, 90 days external components
Product Height	7.00 IN
Product Length	14.00 IN
Product Width	11.25 IN
Shipping Weight	13 LBS
Country of Origin	Japan
Shipping Height	7 IN
UPC	641328009636
Shipping Length	14 IN
Shipping Width	12 IN

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Buy the 999-216 hose kit for this and it is good to go

5.0

Took a while for this and the hose kit to be in stock and ship to get it all set up. I got a chance to fire this up a couple of days ago. The hose just slips right into the air connection in back, no tools needed. It is surprisingly quiet. After using an 808 for 11 years, this is a treat. Add in a FM-2027-06 soldering iron kit with stand, you have a pretty decent setup. I bought the spare iron in case my main Weller soldering station goes out on me after 12 years.

Verified Purchase Shawn Shaffer on Jan 30, 2021

Recommend to a Friend

outstanding

5.0

THIS PIECE OF EQUIPMENT WAS VERY EASY TO SET UP AND PROGRAM TO DO WHAT I WANT IT TO. WORKS VERY WELL FOR WHAT MY TEAM NEEDS.

htiekdg on Mar 03, 2017

Add to cart

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Hakko FM205-01 - Soldering/Desoldering Station (Shop Air Required) with FM-2024 Desoldering Tool

Items in This Series

Recommended for you

Hakko FM205-01 Accessories

for the Hakko FM205-01

MicroCare MCC-CCH10A Universal Contact Cleaner

Hakko B1086 Cleaning Pin 0.8mm

Hakko B1087 Pin, Cleaning, 1.0mm, FR-4003/4101/4102/4001/301/300, FM-2024,817/808/807

Hakko B1088 Pin, Cleaning, 1.3mm, FR-4003/4101/4102/4001/301/300,FM-2024,817/808/807

Hakko B1089 Pin, Cleaning, 1.6mm, FR-4003/4101/4102/4001/301/300,FM-2024,817/808/807

Hakko B2875 PIN, CLEANING, 2.0-2.3mm NOZZLE, FR-4101/4102/4001, FM-2024, 817/808/807

Hakko FM2024-02 TOOL, DSDRG, HANDPIECE ONLY, 24V-70W, FM-2024

Hakko FM2024-42 CK, DSDRG, w/FH-200, w/o NOZZLE, FM-2024

Chip Quik SMD291 Tack Flux no clean in a 10cc syringe w/plunger And tip

MG Chemicals 824-450G Isopropyl Alcohol for Cleaning Electronics and Flux Removal

MicroCare MCC-BAC IPA Based Flux Remover, IsoClean

MicroCare MCC-CBCSK Cleaning Station Kit, TriggerGrip Tool, Bench Mount, Flux Remover,...

MicroCare MCC-DC1 No Clean Flux Remover, VeriClean

MicroCare MCC-DC1PEN No Clean Flux Remover Cleaning Pen

MicroCare MCC-EC7M Slow Drying Flux Remover, Citrus-Based

MicroCare MCC-FRC General Purpose Flux Remover, Flux Remover C

MicroCare MCC-PRO Alcohol Enhanced Flux Remover, ProClean

MicroCare MCC-PROWR Alcohol Enhanced Presaturated Wipes, ProClean Refill

MicroCare MCC-SPR Heavy Duty Flux Remover, SuprClean

MicroCare MCC-VOC10A VOC-Free Flux Remover, UltraClean

Hakko FA400-04 ABSORBER, SMOKE, ESD, FA-400

Hakko FA430-KIT1 SMOKE ABSORBER, w/C1571, FA-430

Hakko FA430-KIT2 SMOKE ABSORBER, w/C1572, FA-430

OC White Green-Lite 5in Round Green-Lite 5” round magnifier – product selection tool

OC White Green-Lite 6in Round Green-Lite 6” round magnifier – product selection tool

OC White Green-Lite 7 x 5.25in Green-Lite 7 x 5.25” rectangular magnifier – product...

OC White Green-Lite 7.5in Round Green-Lite 7.5” round magnifier – product selection tool

Hakko N3-06 NOZZLE, 0.6mm, FM-2024

Hakko N3-08 NOZZLE, 0.8mm, FM-2024

Hakko N3-10 NOZZLE, 1.0mm, FM-2024

Hakko N3-13 NOZZLE, 1.3mm, FM-2024

Hakko N3-16 NOZZLE, 1.6mm, FM-2024

Hakko N3-20 NOZZLE, 2.0mm, FM-2024

Hakko N3-23 NOZZLE, 2.3mm, FM-2024

Hakko N3-L10 NOZZLE, EXTRA LONG, 1.0mm, FM-2024

Panavise 201 PV JR. COMBINATION VISE HEAD AND BASE

Panavise 301 STANDARD PANAVISE

Sensepeek PC BITE KIT SP10 TW PCBite kit with 4x SP10 probes and test wires

Hakko B1069 Vacuum Ejector for 471/473/C1492

Hakko B1070 Ejector

Hakko B2756 TRAY, TIP, T9/T15/T16/T22/T30/T31/T33/N3/N4

Hakko B2962 Solenoid Valve for Hakko C1492/FM-205

Hakko B2972 CARD, CONTROL, FM-205/204/203, FX-951, FR-803B/802

Hakko FM2026-01 CONNECTOR ASSY, SDRG, N2, w/ACC., FM-2026

Hakko FM2026-02 CONNECTOR ASSY, SDRG, HANDPIECE ONLY, N2, FM-2026

Hakko FM2026-06 CK, SDRG, N2, w/FH-200, FM-2026

Hakko FM2026-KIT KIT, FM2026-01 + FX791-01

Hakko FM2027-01 Soldering Iron with Sleeve and Heat Resistant Pad (Tips and Stand Sold...

Hakko FM2027-02 Handpiece Only (Does Not Include Other Accessories)

Hakko FM2027-03 CK, SDRG, w/FH-200, FM-2027

Hakko FM2027-06 CK, SDRG, GREEN SLEEVE, w/FH-200, FM-2027

Hakko 599-029 WIRE,CLEANING,FH-400,200-83/05/01,633-01,599B

Hakko 599B-02 Solder Tip Cleaning Wire and Holder

Panavise 209 VACUUM BASE PV JR.

Panavise 350 MULTI-PURPOSE WORK CENTER

Hakko FM205-01

Soldering/Desoldering Station (Shop Air Required) with FM-2024 Desoldering Tool

Several versions available

Compatible tools

Tech Specs

Desoldering Equipment / Rework Template

Test Equipment General Attributes

5

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources
