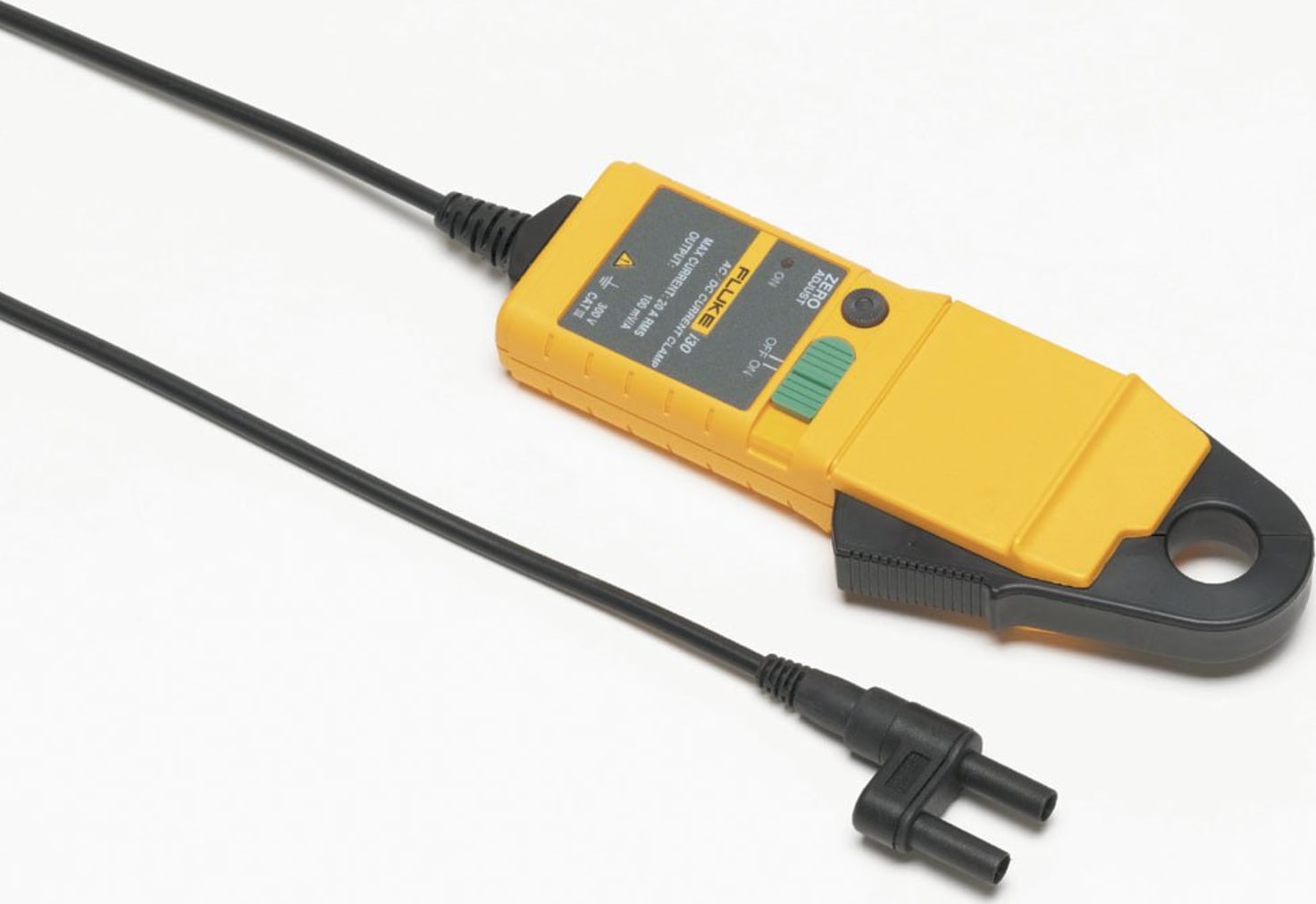

Fluke I30 AC/DC Current Clamp Adaptor

Name: Fluke I30 AC/DC Current Clamp Adaptor
Brand: Fluke
SKU: FlukeI30
Price: 559.93 USD
Availability: InStock

0 reviews | Catalog: 2584920 | UPC: 095969345095 | Model: Fluke I30

Compare

Fluke I30 AC/DC Current Clamp/Banana Plugs, 30mA-20Arms AC/30mA-30A DC

The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current
The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments for accurate non-intrusive current measurement

View Product Details

List Price: $614.99

Your Price: $559.93

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options


Product	Fluke I30 Fluke I30 AC/DC Current Clamp/Banana Plugs, 30mA-20Arms AC/30mA-30A DC	Fluke I30S Fluke I30S AC/DC Current Clamp/BNC, 30mA-20Arms AC/30mA-30A DC
Price
In Stock
Type (Current Clamp Adaptors	CT	CT
Maximum Current AC	20 A	20 A
Maximum Current DC	30 A	30 A
Compare	Add to compare	Add to compare

Recommended for you

Choose a Category

(11)

In Stock!

Add to Cart

Electrical specifications
Specified current range	30 mA to 30A dc, 30 mA to 20 A ac rms
Usable current range	5 mA to 30 A dc, 30 mA to 20 A ac rms
Crest Factort	1.4"
Lowest measurable current	10 mA
Output sensitivity	100 mV/A
Accuracy (at +25 °C)	± 1 % of reading ± 2 mA
Resolution	± 1 mA
Load impedance	> 10 k Ohms and ≤ 100pF
Conductor position sensitivity	± 1 % relative to center reading
Frequency range	DC to 20 kHz (- 0.5 dB)
Temperature coefficient	± 0.01 % of reading/°C
Power supply	9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
Working voltage (see Safety Standards section)	300 V ac rms or dc
General Specifications
Maximum conductor size	19 mm diameter
Output connection	4 mm safety connector
Output zero	Manual adjust via thumbwheel
Cable length	1.5 meters
Operating temperature range	0 °C to +50 °C
Storage temperature range (with battery removed)	-20 °C to +85 °C
Operating humidity	15 % to 85 % (non-condensing)
Weight	250 g
Safety standards	BS EN 61010-1:2001 BS EN 61010-2-032:2002 BS EN 61010-031:2002 300 Vrms, Category III, Pollution Degree 2 Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc and frequencies below 1 kHz.
EMC Standards	EN 61326: 1998 +A1, A2, & A3

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	20 A
Maximum Current DC	30 A
Maximum Conductor Size	0.74 IN
Test Equipment General Attributes
Warranty	1 YEARS
Product Weight	0.55 LBS
Product Height	1.0 IN
Product Length	7.2 IN
Product Width	2.8 IN
Data Logging	No
Calibration Included	Factory Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China
