| Fluke 190-204: |
200 MHz |
| Fluke 190-202: |
200 MHz |
| Fluke 190-104: |
100 MHz |
| Fluke 190-102: |
100 MHz |
| Fluke 190-062: |
60 MHz |
| Fluke 190-204: |
200 MHz: 4 channels |
| Fluke 190-202: |
200 MHz: 2 channels |
| Fluke 190-104: |
100 MHz: 4 channels |
| Fluke 190-102: |
100 MHz: 2 channels |

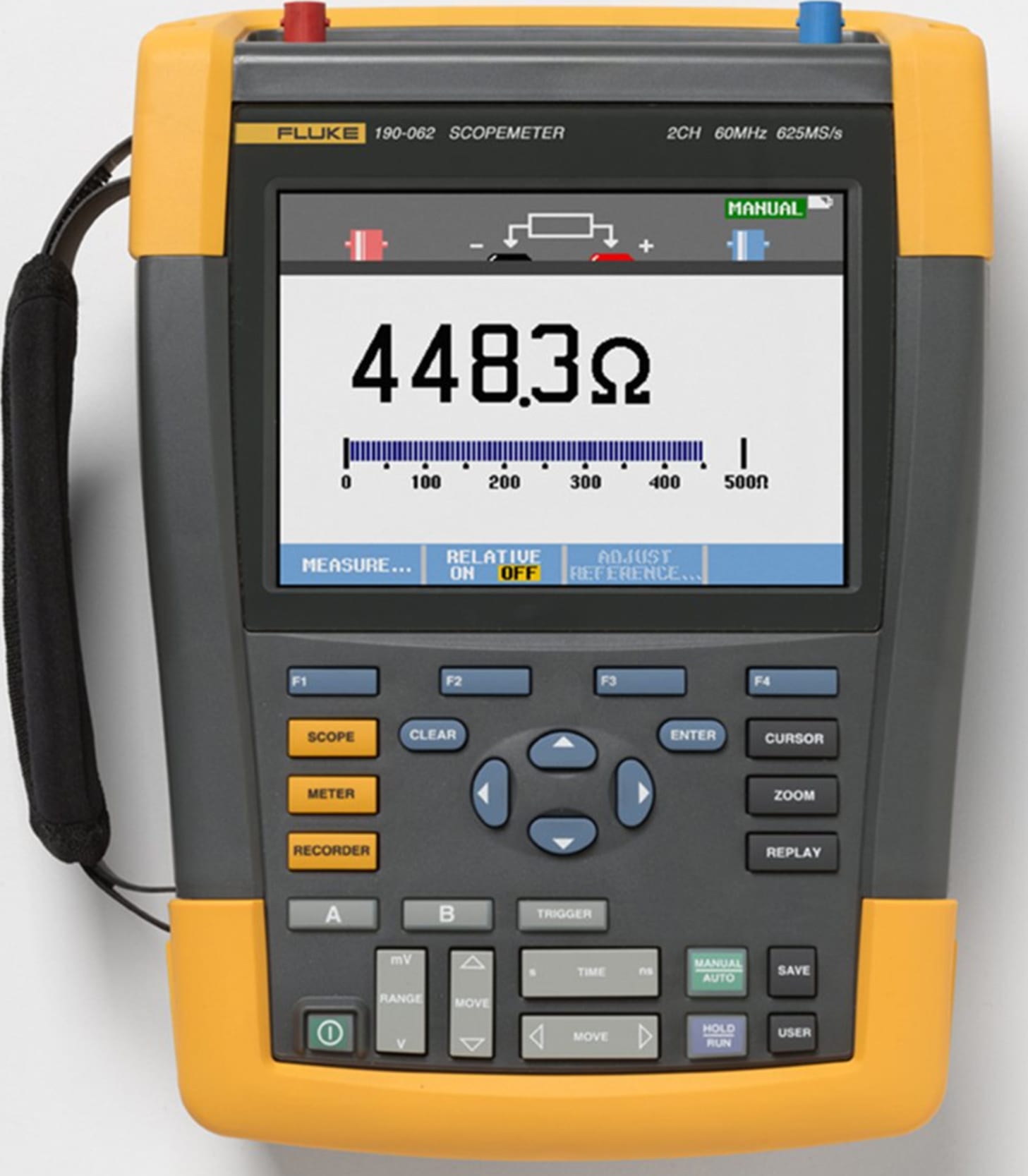

| Fluke 190-062: |
60 MHz: 2 channels |
| Fluke 190-204: |
2.5 GS/s |
| Fluke 190-202: |
2.5 GS/s |
| Fluke 190-104: |
1.25 GS/s |
| Fluke 190-102: |
1.25 GS/s |
| Fluke 190-062: |
625 MS/s |
| Inputs |
4 scope or 2 scope plus DMM input |
| Independently floating isolated inputs |
Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground |
| Timebase range |
5 ns - 2 min/div |
| Input sensitivity |
2 mV-100 V/div |
| Trigger types |
connect-and-View, Free Run, Single Shot, Edge, Delay, Video, Selectable pulse width and External
Dual slope trigger and Event trigger (n-cycle) |
| Glitch capture |
8 ns |
| Scope measurements |
Cursor: 7
Automatic: 30 |
| Maximum record length |
ScopeRecord mode: 27,500 pts per input
Scope mode: 10,000 pts per input |
| Memory |
Screens + Setups: 15
Replay + Setups: 2 |
| Display |
153 mm full color LCD with fast update rate |
| Persistence |
Digital persistence giving analog oscilloscope-like waveform decay |
| Waveform Compare |
Waveform reference with automatic Pass/Fail testing |
| Environmental Specifications |
| Operating Temperature |
0°C to 40°C Including Batteries
0°C to 50°C Excluding Batteries |
| Storage Temperature |
-20°C to +60°C |
| Operating Altitude |
Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V; up to 3,000 m (10,000 ft) for
CAT III 600 V, CAT II 1000 V |
| Safety Specifications |
| Electrical Safety |
1,000V CAT III/600V CAT IV (EN61010-1) |
| Mechanical & General Specifications |
| Size |
270 x 190 x 70 mm |
| Weight |
2.2 kg |
| Warranty |
3-years on main instrument, 1-year on accessories |
| Li-Ion Battery |
190-X04, 4 Channel models: BP291 4800 mAh battery up to 7 Hours included standard
190-XX2, 2 Channel models: BP290 2400 mAh battery up to 4 hours included standard. Up to 8 hours using optional BP291 |
