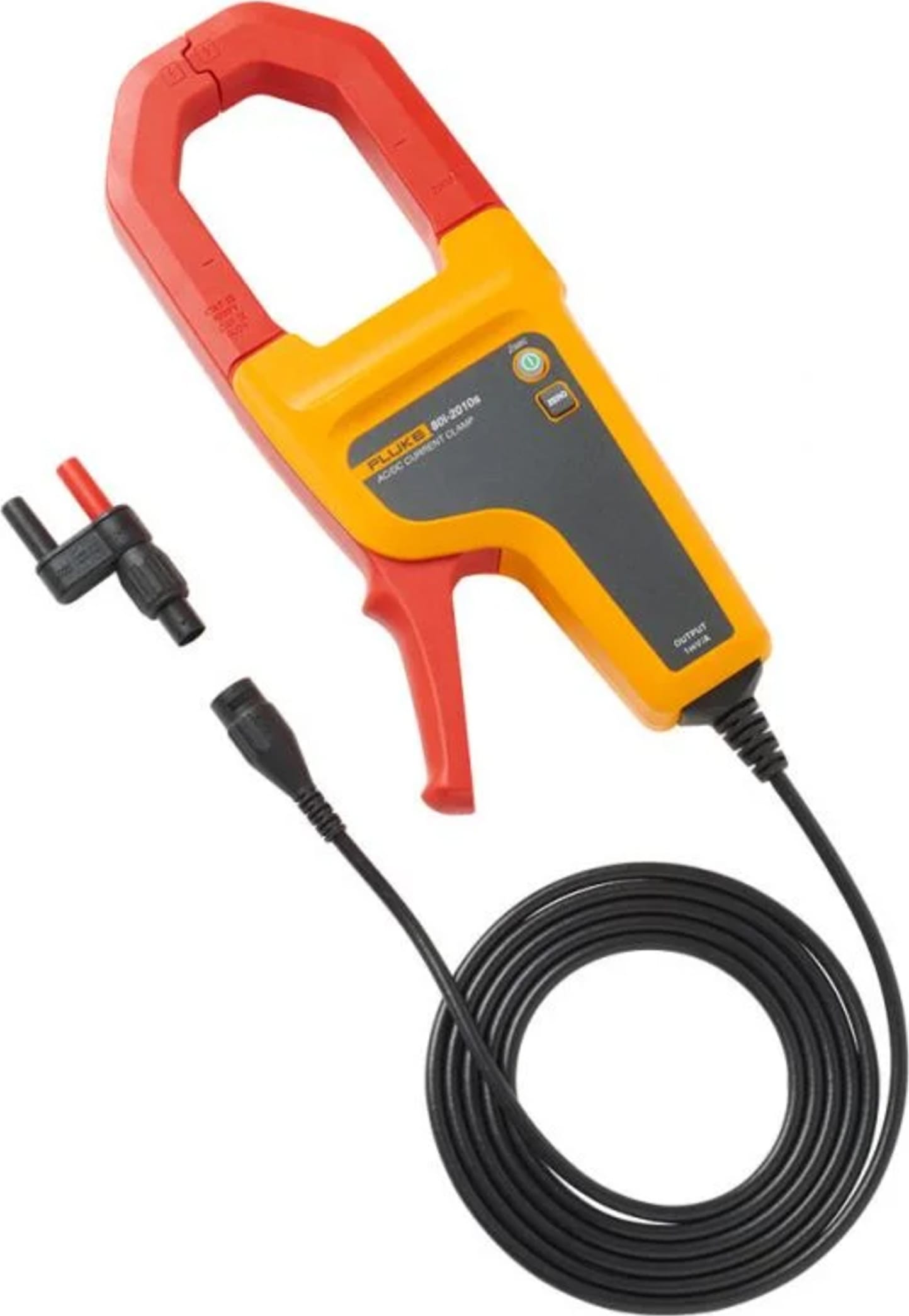

Fluke 80i-2010s - 2,000A AC/DC Current Clamp

Name: Fluke 80i-2010s - 2,000A AC/DC Current Clamp
Brand: Fluke
SKU: Fluke80i-2010s
Price: 1104.99 USD
Availability: InStock

0 reviews | Catalog: 5125579 | UPC: 095969918770 | Model: Fluke 80i-2010s

Compare

2,000A AC/DC Current Clamp

Conveniently measure current without having to disconnect the load
2,000A AC and DC current clamp
Maximum conductor size - 52mm (2.05in)
Maximum opening - 81.5mm (3.2in)

View Product Details

Your Price: $1,104.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series


Product	Fluke 80i-2010s 2,000A AC/DC Current Clamp	Fluke 80i-2010s/3PK 2,000A AC/DC Current Clamp /3pk
Price
In Stock
Type (Current Clamp Adaptors	CT	CT
Maximum Current AC	2000 A	2000 A
Maximum Current DC	2000 A	2000 A
Compare	Add to compare	Add to compare

Recommended for you

Fluke 80i-2010s - 2,000A AC/DC Current Clamp

2,000A AC and DC current clamp

Maximum opening – 81.5mm (3.2in)
Maximum conductor size – 52mm (2.05in)
Conveniently measure current without having to disconnect the load

Available in packs of one, or as a three-pack the Fluke 80i-2010s allows you to measure up to 2,000A AC and/or DC on large conductors with 0.8% accuracy. The 80i-2010S provides a convenient way to measure current without having to disconnect the load.

Modules	80i-2010s
Dimensions	110 mm x 270 mm x 46mm
Weight	0.710 kg (1.6 lbs), including battery
Output Cable	1.5 m (60 in) Shielded Coaxial cable with BNC plug
Maximum Conductor Size	52.0 mm (2.05 in)
Maximum Jaw Opening	81.5 mm
Output to Zero	Auto adjustment with Zero button
Temperature Operating	-10 °C to 50 °C (14 °F to 122 °F)
Storage (battery removed)	-30 °C to +60 °C (-22 °F to +140 °F)
Operating Humidity	≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C)
Operating Altitude	2,000 m (6560 ft)
Storage Altitude	12,000 m (40,000 ft)
Demagnetize Clamp	Open and close the Clamp jaws several times with soft click, use of the clamp on uninsulated conductors is limited to 1000 Vac rms or DC and frequencies 1 kHz or less.
Safety	IEC 61010-1, Pollution Degree 2, IEC 61010-2-032: CAT III 1000 V /CAT IV 600 V
Ingress Protection	IEC 60529, IP40
Power Supply Type	2 x AA alkaline battery, IEC LR6
Battery Life	150 hours (typically)
Low battery indicator	Yes
Electrical Specifications
Current Range	2000 A ac rms, ± 2000 A dc
Output Sensitivity	01 mV/A
Accuracy	± 0.8 % of reading ± 0.2 % of range
Bandwidth for Accuracy Specification	DC to 400 Hz
Load impedance	>1 MΩ and <10 pF
Frequency Response (small signal)	DC to 20 kHz (-3 dB)
Temperature Coefficient	0.1 x specified accuracy for each degree C above 28 °C or below 18 °C
Working Voltage	1000 V AC RMS or DC

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	2000 A
Maximum Current DC	2000 A
Maximum Conductor Size	2.05 IN
Test Equipment General Attributes
Product Weight	1.6 LBS
Product Height	9.00 IN
Product Length	10.00 IN
Product Width	9.00 IN
HTS/Schedule B Number	9030.90.8931
ECCN Number	3A992
Country of Origin	China
Shipping Height	9.00 IN
Shipping Length	10.00 IN
Shipping Width	9.00 IN
