Extech EX830-NISTL - EX830 W/Limited NIST - No IR Function

Name: Extech EX830-NISTL - EX830 W/Limited NIST - No IR Function
Brand: Extech
SKU: ExtechEX830-NISTL
Price: 284.09 USD
Availability: InStock

0 reviews | UPC: 793950398319 | Model: Extech EX830-NISTL

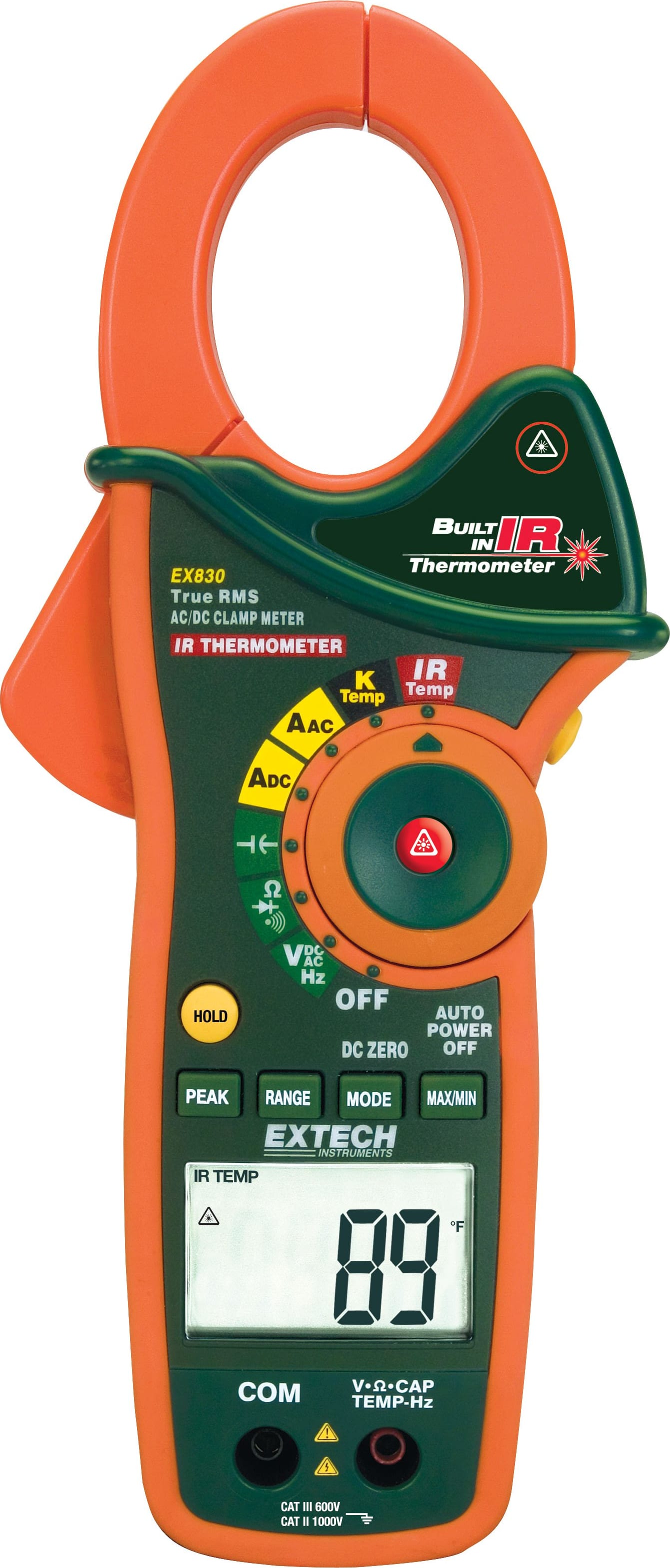

Extech EX830 1000A True RMS AC/DC Clamp Meter with IR Thermometer

Compare

Clamp DMM + IR Therm TRMS 1000 Amp AC/DC with limited NIST calibration (all functions except the IR thermometer)

Non-contact InfraRed Temperature measurements with laser pointer
True RMS Current and Voltage measurements
Peak hold captures inrush currents and Transients
MultiMeter functions include AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Diode, Continuity and Type K Thermometer
1.7" (43mm) jaw opening for conductors up to 750MCM or two 500MCM
4000 count backlit display
Autoranging with manual range button
Features include Data Hold and Min/Max, DC Zero, Auto Power off
Certificate of Calibration traceable to N.I.S.T.

View Product Details

List Price: $318.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Extech EX830-NISTL

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

General
IR Temperature	-58 to 518ºF ; -50 to 270ºC
AC Current	0.1 to 1000A
DC Current	0.1 to 1000A
AC Voltage	0.1mV to 600V
DC Voltage	0.1mV to 600V
Resistance	0.1 to 40M Ohm;
Capacitance	0.001nF to 40,000µF
Frequency	0.001kHz to 4kHz
Type K Temperature	-4 to 1400°F ; -20 to 760°C
Continuity	Yes
Inrush	Yes
Diode	Yes
Dimensions/Wt.	10.6x4.3x2" (270x110x50mm)
Weight	13.6oz (386g)

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	1000 A
Maximum Current DC	1000 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Conductor Size	1.7 IN
Resistance	Yes
Capacitance	Yes
Auto Ranging/Manual	Both
In-Rush Current	Yes
Test Equipment General Attributes
Unique Features	Data Hold, Rugged Double Molded Housing
Warranty	1 YEARS
Safety Approval	CE, UL
Product Weight	13.6 OUNCES (0.85 LBS)
Product Height	2 IN
Product Length	10.6 IN
Product Width	4.3 IN
Data Logging	No
Calibration Included	NIST Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China Country of Origin Value not available
