• Clamping force (kN): 12
• Stroke (mm): 29.7
• Hydraulic cylinder pushes linkage, pivoting clamp arm into position
• Design ensures repeatable clamping location

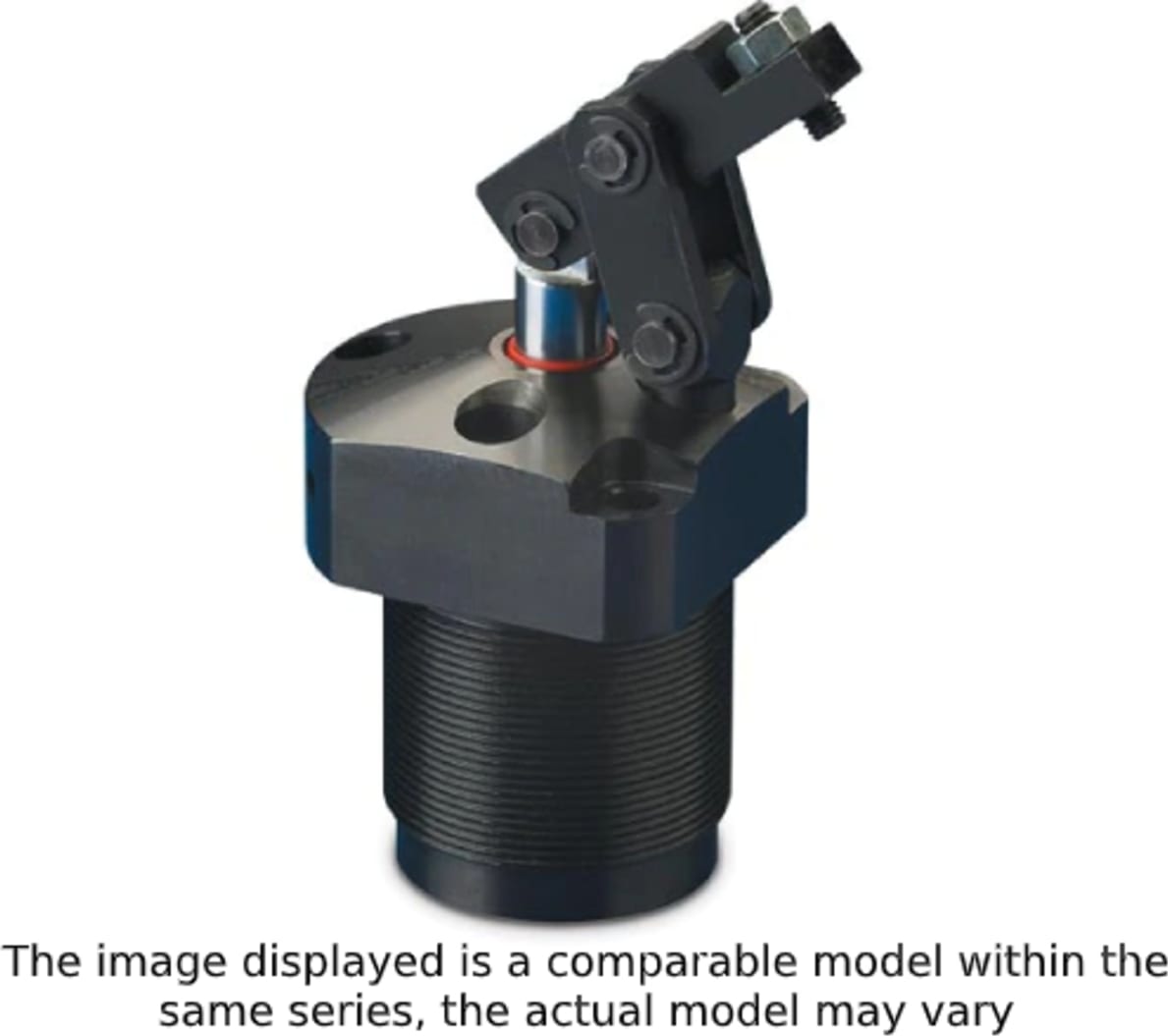

The Enerpac LUCD122 is a double-acting link clamp with 12 kN clamping force and 29.7mm stroke. Hydraulic cylinder pushes linkage, pivoting clamp arm into position. Its design ensures repeatable clamping location. The LUCD122 linkage can be re-positioned to clamp at 90, 180, or 270 degrees from ports. Clamps can be mounted using supplied bolts or held in place with a flange nut. Link clamp allows unobstructed part loading and high clamping forces. The hydraulic cylinders extend to provide clamping force and retract to allow part removal.
