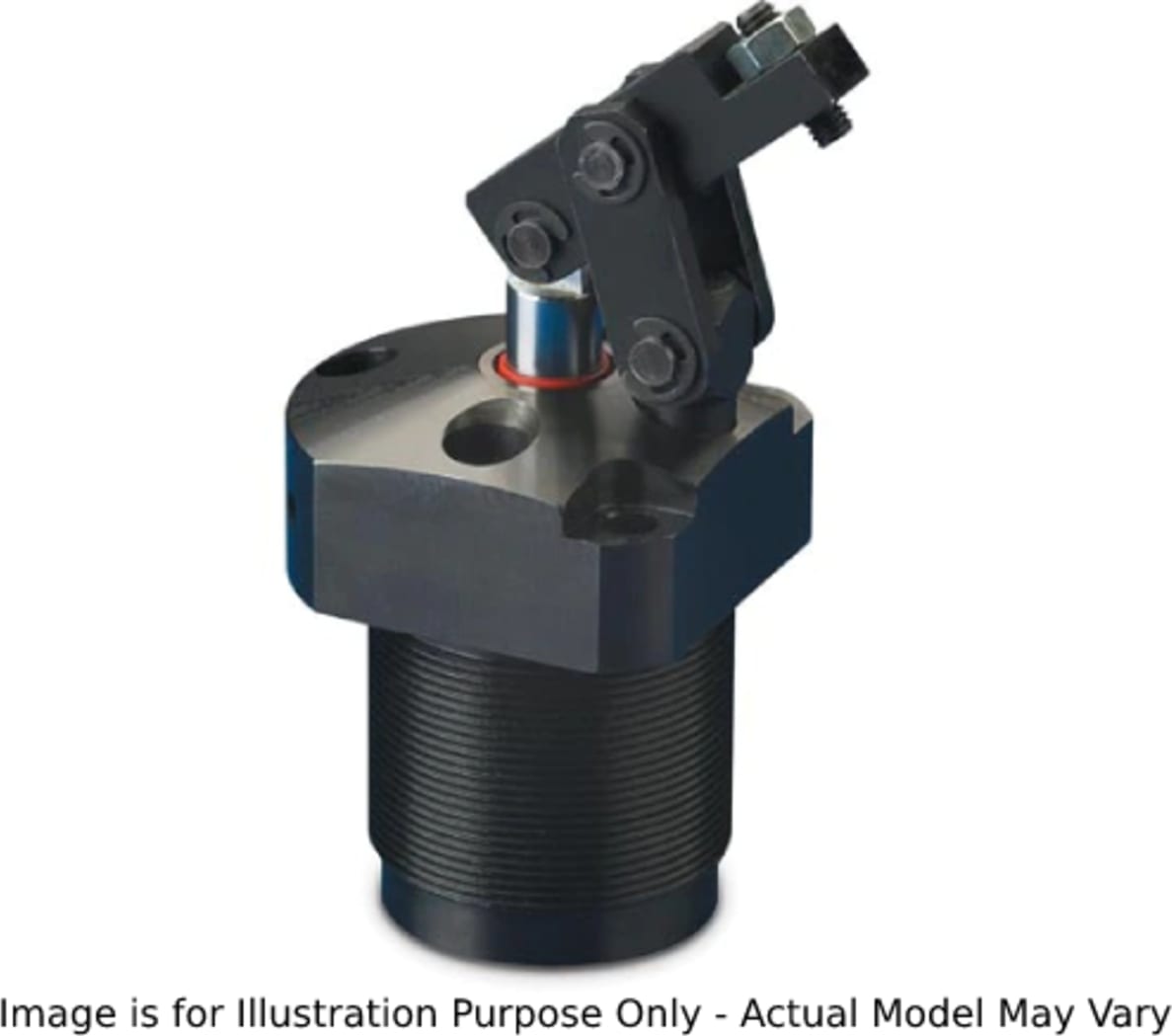

Link Clamp, 2700 lbs Force, 1.17" Stroke
The Enerpac LUCD121 is a link clamp with 2700 lbs. of clamping force and a 1.17" stroke. It is designed to ensure a repeatable clamping location. The linkage can be re-positioned to clamp at 90, 180, or 270 degrees from the ports. It can be mounted using the supplied bolts or held in place with a flange nut. The link clamp allows unobstructed part loading and high clamping forces. The hydraulic cylinders extend to provide clamping force, and retract to allow part removal. A standard arm or long arm can be ordered separately.
