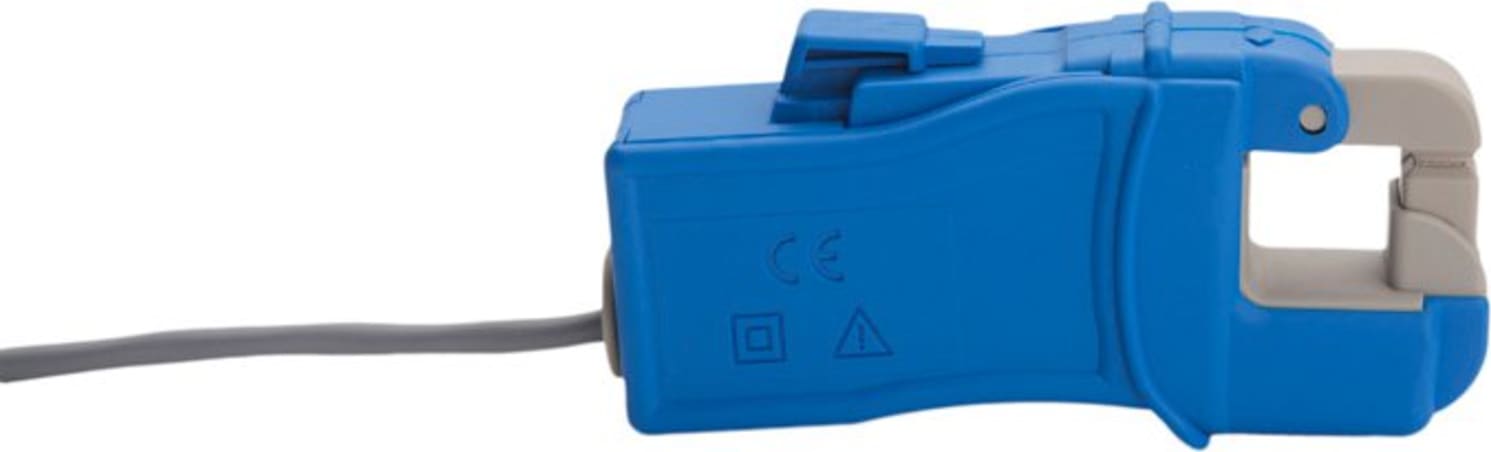

Dranetz TR-2510B - CT Current Probe, 1A-10ARMS

Name: Dranetz TR-2510B - CT Current Probe, 1A-10ARMS
Brand: Dranetz
SKU: DranetzTR-2510B
Price: 306.00 USD
Availability: InStock

0 reviews | Model: Dranetz TR-2510B

Compare

CT Current Probe, 1A-10ARMS

1A-10ARMS CT Current Probe.
1.5V Output
Dranetz Hypertronics connector
3-meter cable
Frequency Range: 40Hz to 5KHz
Maximum Conductor Size: 15mm dia.
Rated Voltage: 600V Max.
Compatible with Dranetz Portable Power Quality Analyzers

View Product Details

Sign-in for GSA Pricing!

In Stock:

View Payment Options

List Price: $306.00

Click for price

Request Quote

Items in This Series


Product	Dranetz TR-2510B CT Current Probe, 1A-10ARMS	Dranetz TR-2500B 10A to 100A and 100A to 500A CT AC Current Probe	Dranetz TR-2540B CT Current Probe, 10A-1000A rms	Dranetz TR-2530B CT Current probe, 20A to 300Arms	Dranetz TR-2520B CT Current Probe, 100A-3000A RMS	Dranetz TR-2501B CT Current Probe, 100mA to 1.2A	Dranetz TR-2550B 1A-100ARMS CT AC Current Probe
Price
In Stock
Type (Current Clamp Adaptors	CT	CT	CT	CT	CT	CT	CT
Maximum Current AC	10 A	500 A	1000 A	300 A	3000 A	1.2 A	100 A
Maximum Conductor Size	0.59 IN	1.96 IN	2.12 IN	2.12 IN	2.83 IN	0.59 IN	0.59 IN
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Dranetz TR-2510B Accessories

Choose a Category

for the Dranetz TR-2510B

Dranetz CA4300BNCB BNC to Dranetz Hypertronics connector (PX5 / HDPQ)

Catalog: CA4300BNCB

(0)

In Stock!

Add to Cart

Dranetz TREXT10 10ft TR Probe Extension Cable

Catalog: TREXT10

(0)

In Stock!

Add to Cart

Dranetz TREXT15 15ft TR Probe Extension Cable

Catalog: TREXT15

(0)

In Stock!

Add to Cart

Dranetz TREXT20 20ft TR Probe Extension Cable

Catalog: TREXT20

(0)

In Stock!

Add to Cart

Dranetz TREXT25 25ft TR Probe Extension Cable

Catalog: TREXT25

(0)

In Stock!

Add to Cart

Dranetz TREXT30 30ft TR Probe Extension cable

Catalog: TREXT30

(0)

In Stock!

Add to Cart

Dranetz TREXT5 5ft TR Probe Extension Cable

Catalog: TREXT5

(0)

In Stock!

Add to Cart

Dranetz ISO-65X-5 0-5A term box, for use on 5A secondary CT's (requires CT adapter...

Catalog: ISO-65X-5

(0)

In Stock!

Add to Cart

Dranetz TRTOREDEL Adapter cable BNC to TR adapter.

Catalog: TRTOREDEL

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Clamp CT's Specifications
Model	Range		Amplitude Accuracy ±	Phase Accuracy ±	Frequency Range	Maximum Conductor Size	Rated Voltage	Connector / Output
TR-2500B	10A to 500Arms	100A to 500A	1%	1.5°	40Hz to 5KHz	50mm diameter	600V Max.	Dranetz 1.5V
		10A to 100A	2%	3°
TR-2501B	100mA to 1.2Arms	1.2A	1.5%	2°	40Hz to 5KHz	15mm diameter	600V Max.	Dranetz 1.5V
		100mA	2%	3°
TR-2510B	1A to 10Arms	5A to 10A	1.2%	1.5°	40Hz to 5KHz	15mm diameter	600V Max.	Dranetz 1.5V
		1A to 5A	1.2%	1°
TR-2520B	100A to 3000Arms	1000A to 3000A	0.5%	0.5°	40Hz to 5KHz	72mm diameter	600V Max.	Dranetz 1.5V
		300A to 1000A	0.75%	0.75°
		100A to 300A	1.5%	1.5°
TR-2530B	20A to 300Arms	50A to 300A	1%	0.5°	30Hz to 5KHz	54mm diameter	600V Max.	Dranetz 1.5V
		20A to 50A	1.5%	0.6°
TR-2540B	10A to 1000A	100A to 1000A	1%	0.4°	30Hz to 5KHz	54mm diameter	600V Max.	Dranetz 1.5V
		10A to 100A	1.5%	0.5°
TR-2550B	1A to 100Arms	10A to 100A	1%	2.5°	40Hz to 10KHz	15mm diameter	600V Max.	Dranetz 1.5V
		1A to 10A	2%	5°

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	10 A
Maximum Conductor Size	0.59 IN
Test Equipment General Attributes
Product Height	1.25 IN
Product Length	7.00 IN
Product Width	4.50 IN
HTS/Schedule B Number	9030.90.4600
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	1.25 IN
Shipping Length	7.00 IN
Shipping Width	4.50 IN
