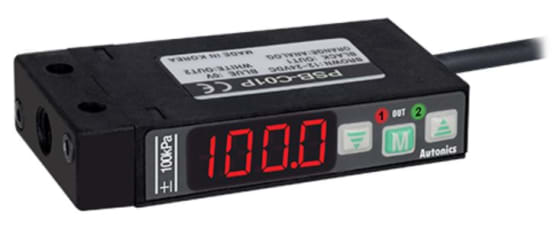

| Model: PSB-C01-M5 Specifications |
| Applicable fluid |
(Pneumatic type) Air, Non-corrosive gas |
| Pressure port |
M5 |
| Connection type |
Cable type(cable type cable: 2m) |
| Pressure type |
Compound pressure |
| Rated pressure range |
-100.0 to 100.0kPa |
| Display pressure unit |
kPa, kgf/cm², bar, psi, mmHg, inHg, mmH2O |
| Control output NPN open collector |
NPN open collector |
| Option input/output |
Voltage (1-5VDC ) output |
| Power supply |
12-24VDC ±10% (ripple P-P: max. 10%) |
| Current consumption |
Max. 50mA |
| Protection structure |
IP40 |
| Approval |
| Control output Hysteresis |
2-digit fixed |
| Control output Repeat error |
±0.2% F.S. ±2-digit |
| Control output Response time |
Selectable 2.5ms, 5ms, 100ms, 500ms |
| Environment Ambient temperature |
-10 to 50°, storage: -20 to 60° |
| Environment Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Material |
Case, Pressure port, Cover: IXEF |
| Weight |
Approx. 160g(approx. 70g) |
※※In hysteresis output mode, detection difference is variable.
※The weight includes packaging. The weight in parenthesis is for unit only.
※F.S: Rated pressure.
※There may be ±1-digit error in hysteresis by pressure unit calculation error.
※The specification of pressure port is marked on the upper part of the case.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation. |
