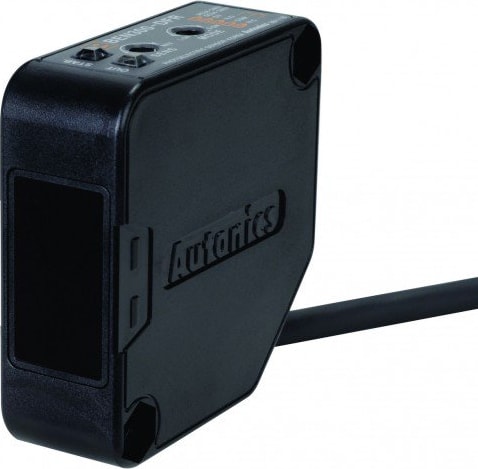

Autonics BEN300-DFR Photoelectric Sensor, Diffuse Reflective, Light and Dark On, Relay Output, 24-240 VAC and VDC

Name: Autonics BEN300-DFR Photoelectric Sensor, Diffuse Reflective, Light and Dark On, Relay Output, 24-240 VAC and VDC
Brand: Autonics
SKU: AutonicsBEN300-DFR
Price: 72.00 USD
Availability: InStock

0 reviews | Model: Autonics BEN300-DFR

Compare

Sensor, Photo, Diffuse Reflective, Light and Dark On, Relay Output, 24-240 VAC and VDC

Diffuse Reflective, Light and Dark On, Relay Output, 24-240 VAC and VDC
Small and power supply built-in type
Easy installation with LED indicators on product
Status and output LED indication
Built-in IC photo diode for ambient light and electrical noise

View Product Details

Your Price: $72.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Autonics BEN300-DFR Sensor, Photo, Diffuse Reflective, Light and Dark On, Relay Output, 24 ...	Autonics BEN10M-TDT Sensor, Photo, Through Beam, Light and Dark On, NPN and PNP Output, 12 ...	Autonics BEN10M-TFR Sensor, Photo, Through Beam, Light and Dark On, Relay Output, 24-240 V ...	Autonics BEN5M-MDT Sensor, Photo, Retroreflective, Light and Dark On, NPN and PNP Output, ...	Autonics BEN5M-MFR Sensor, Photo, Retroreflective, Light and Dark On, Relay Output, 24-240 ...	Autonics BEN3M-PDT Sensor, Photo, Polarized Retroreflective, Light and Dark On, NPN and PN ...	Autonics BEN3M-PFR Sensor, Photo, Polarized Retroreflective, Light and Dark On, Relay Outp ...	Autonics BEN300-DDT Sensor, Photo, Diffuse Reflective, Light and Dark On, NPN and PNP Outp ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics BEN300-DFR - Photoelectric Sensor, Diffuse Reflective, Light and Dark On, Relay Output, 24-240 VAC and VDC

Small and power supply built-in type
Easy installation with LED indicators on product
Status and output LED indication
Built-in IC photodiode for ambient light and electrical noise

The BEN series photoelectric sensors with built-in amplifiers are available in universal AC/DC types and DC types. Light ON/Dark ON operation mode switch and sensitivity adjusters are available for easy configuration and set up (except through-beam types). The specialized sensor IC provides high performance in various user applications.

Autonics BEN Series General Specifications (Free power, Relay contact output type)
Model		BEN10M-TFR	BEN5M-MFR	BEN3M-PFR	BEN300-DFR
Sensing type		Through-beam	Retroreflective (Standard type)	Retroreflective (Built-in polarizing filter	Diffuse reflectiv
Sensing distance		10m	0.1 to 5m^*1	0.1 to 3m^*1	300mm^*2
Sensing target		Opaque materials of Min. ø16mm	Opaque materials of Min. ø60mm		Translucent, Opaque materials
Hysteresis		-			Max. 20% at ratedsetting distance
Response time		Max. 20ms
Response time		24-240VAC ±10% 50/60Hz, 24-240VDC ±10%(Ripple P-P : Max. 10%)
Power consumption		Max. 4VA
Light source		Infrared LED(850nm)		Red LED(660nm)	Infrared LED(940nm)
Sensitivity adjustment		-	Adjustment VR
Operation mode		Selectable Light ON or Dark ON by VR
Control output		Relay contact output Relay contact capacity: 30VDC 3A of resistive load, 250VAC 3A resistive load Relay contact composition: 1c
Relay lifetime		Mechanically: Min. 50,000,000 operation, Electrically: Min. 100,000 operation
Light receiving element		Photo IC
Indicator		Operation indicator : red Stability indicator : green (The red lamp on Emitter of transmitted beam type is for power indication)
Insulation resistance		Min. 20MΩ(at 500VDC megger)
Insulation type		Double or strong insulation (Mark : Dielectric voltage between the measured input and the power: 1kV)
Noise resistance		±1,000V the square wave noise(pulse width : 1μs) by the noise simulator
Dielectric strength		1000VAC 50/60Hz for 1minute
Vibration	Mechanical	1.5mm amplitude or 300m/s² at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
	Malfunction	1.5mm amplitude or 300m/s² at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 10 minutes
Shock	Mechanical	500m/s²(approx. 50G) in each of X, Y, Z directions for 3 times
	Malfunction	100m/s²(approx. 10G) in each of X, Y, Z directions for 3 times
Environment	Ambient illumination	Sunlight : Max. 11,000lx, Incandescent lamp : Max. 3,000lx(Receiver illumination)
	Ambient temperature	-20 to 65°C, storage : -25 to 70°C
	Ambient humidity	35 to 85%RH, storage : 35 to 85%RH
Protection		IP50(IEC standard)
Material		•Case, Case cover: Heat resistant ABS •Sensing part: PC(with polarizing filter: PMMA)
Cable		ø5, 5-wire, Length: 2m(Emitter of through-beam type: ø5, 2-wire, Length: 2m) (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator out diameter: ø1.25)
Accessory	Individual	-	Reflector(MS-2)		-
	Common	VR adjustment driver, Mounting bracket, Bolts/nuts
Unit weight		Approx. 354g	Approx. 208g		Approx. 195g
1: The sensing distance is specified with using the MS-2 reflector and same as the MS-4 reflector. Sensing distance is setting range of the reflector. The sensor can detect under 0.1m. 2: It is for Non-glossy white paper(100×100mm). *The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.

Autonics BEN Series General Specifications (DC power, Solid state output type)
Model		BEN10M-TDT	BEN5M-MDT	BEN3M-PDT	BEN300-DDT
Sensing type		Through-beam	Retroreflective	Retroreflective (with polarizing filter	Diffuse reflective
Sensing distance		10m	0.1 to 5m ^*1	0.1 to 3m ^*1	300mm ^*2
Sensing target		Opaque materials of Min. ø16mm	Opaque materials of Min. ø60mm		Translucent, Opaque materials
Hysteresis		-			Max. 20% at ratedsetting distance
Response time		Max. 1ms
Response time		12-24VDC ±10%(Ripple P-P: Max. 10%)
Current consumption		Max. 50mA
Light source		Infrared LED(850nm)		Red LED(660nm)	Infrared LED(940nm)
Sensitivity adjustment		-	Adjustment VR
Operation mode		Selectable Light ON or Dark ON by VR
Control output		NPN open collector / PNP open collector simultaneous output Load voltage: Max. 30VDC Load current: Max. 200mA Residual voltage - NPN: Max. 1V, PNP: Max. 2.5V
Protection circuit		Reverse polarity protection, Short-circuit protection
Light receiving element		Photo IC
Indicator		Operation indicator : Red, Stability indicator : Green (The red lamp on Emitter of transmitted beam type is for power indication)
Insulation resistance		Min. 20MΩ(at 500VDC megger)
Noise resistance		±240V the square wave noise(pulse width: 1μs) by the noise simulator
Dielectric strength		1000VAC 50/60Hz for 1minute
Vibration		1.5mm amplitude or 300m/s² at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock		500m/s²(approx. 50G) in each of X, Y, Z directions for 3 times
Environment	Ambient illumination	Sunlight : Max. 11,000lx, Incandescent lamp : Max. 3,000lx(Receiver illumination)
	Ambient temperature	-20 to 65°C, storage : -25 to 70°C
	Ambient humidity	35 to 85%RH, storage : 35 to 85%RH
Protection		IP50(IEC standard)
Material		• Case, Case cover: Heat resistant ABS • Sensing part: PC(with polarizing filter: PMMA)
Cable		ø5, 4-wire, Length: 2m(Emitter of through-beam type: ø5, 2-wire, Length: 2m) (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator diameter: ø1.25)
Accessory	Individual	-	Reflector(MS-2)		-
	Common	VR adjustment driver, Mounting bracket, Bolts/nuts
Approval		CE
Unit weight		Approx. 342g	Approx. 200g		Approx. 187g
1: The sensing distance is specified with using the MS-2 reflector and same as the MS-4 reflector. Sensing distance is setting range of the reflector. The sensor can detect under 0.1m. 2: It is for Non-glossy white paper(100×100mm) *The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
