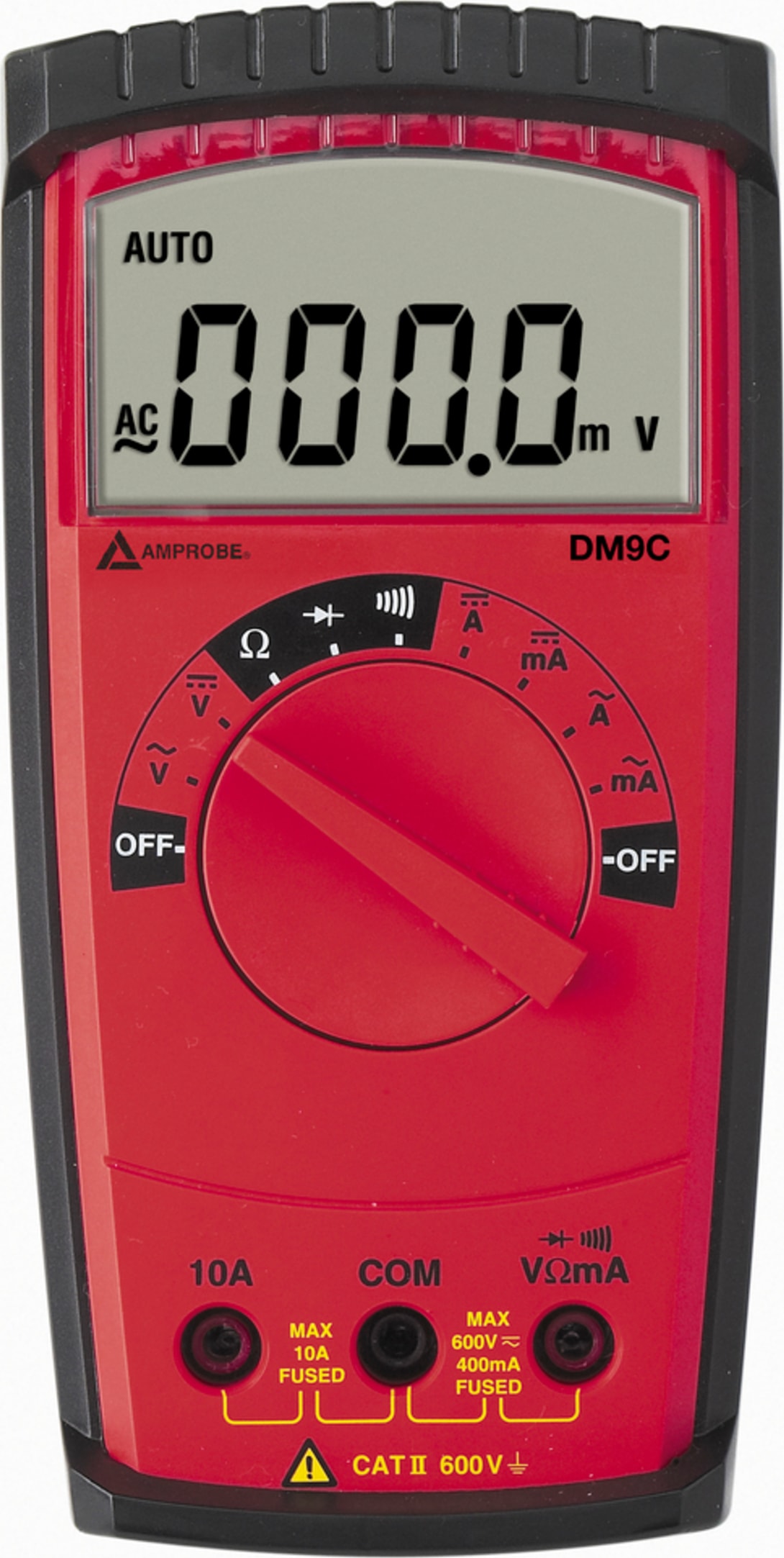

Amprobe DM9C Compact Digital Multimeter

Name: Amprobe DM9C Compact Digital Multimeter
Brand: Amprobe
SKU: AmprobeDM9C
Price: 51.61 USD
Availability: InStock
Rating: 4.00 (2 reviews)

4 (2 Reviews) | UPC: 095969365352 | Model: Amprobe DM9C

Compare

COMPACT DIGITAL MULTIMETER, AUTO RANGING

High-resolution, 4000-count autoranging
7 functions/23 ranges
Battery test function with Go/No-go LED indicator
Industry standard test leads, safety rated
Protective holster included

View Product Details

List Price: $69.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Current Clamp Adaptors / Current Clamps
DMM Probe Kits

for the Amprobe DM9C

Amprobe CT235A AC/DC CLAMP-1000A

Catalog: 3026809

(2)

In Stock!

Add to Cart

Amprobe CT238A AC/DC CLAMP-20A

Catalog: 3026827

(1)

In Stock!

Add to Cart

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Amprobe DL248D DELUXE TEST LEAD KIT

Catalog: 3026866

(1)

In Stock!

Add to Cart

DM9C Digital Multimeter Specification
	Range	Best Accuracy
Voltage
DC Voltage	400 mV, 4V, 40V, 400V, 600V	± (0.8% rdg + 3 dgts)
Resolution	0.1 mV in 400 mV range
Input Impedance	10 MΩ
AC Voltage (40 to 1000 Hz)	400 mV, 4V	± (1.3 % rdg + 5 dgts)
Resolution	1 mV in 4000 mV range
Input Impedance	10 MΩ
Current
DC Current	40 mA, 400 mA	± (1.5% rdg + 3 dgts)
10 A*	± (2% rdg + 3 dgts)
Resolution	100 µA in 400 mA range
Burden Voltage	40 mA, 400 mA	5 mV / mA
Burden Voltage	10 A	40 mV / A
Resistance
	400 Ω, 4 kΩ, 40 kΩ, 400 kΩ,	± (1.5 % rdg + 3 dgts)
	4 MΩ, 40 MΩ	± (1.5 % rdg + 3 dgts)
Open Circuit Voltage	3.2 V DC in all ranges
Continuity Test		± (1.0 % rdg + 2 dgts)
Buzzer Sounds at	< 60 Ω
Diode Test		± (1.0 % rdg + 2 dgts)
Test Current	0.5 mA nominal
Test Voltage	3.2 V DC nominal
Display	Forward junction voltage
Overload Protection
Voltage, Resistance, Continuity	600 V AC / DC
Current	500 mA / 600V, 10 A / 600V
General Specifications
Display	3-3/4 digit LCD, 4000 counts
Display Update Rate	2 per sec. nom.
Range Selection	Auto-ranging
Power Supply	Two standard 1.5 V mA batteries
Battery Life	Alkaline 500 hours, approx.
Auto Power Off	15 minutes
Altitude	2000 m
Fuses	500 mA / 600 V, 10 A / 600 V
Operating Temperature	0 °C to + 50 °C, < 70 % R.H. non-condensing
Storage Temperature	- 10 °C to + 60 °C, < 80 % R.H. non-condensing, batteries removed
Dimensions (H x W x D)	14 cm x 7.8 cm x 5 cm (5.45 in x 3.1 in x 1.55 in)
Weight	215 grams (8.2 oz) including battery
Warranty	One-year

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	No
Maximum Voltage AC	4 V
Resolution AC Volts	1 mV
Maximum Voltage DC	600 V
Resolution DC Volts	0.1 mV
Maximum Current AC	10 A
Minimum Current AC	100 uA (0.1 mA)
Resolution AC Current	100 uA (0.1 mA)
Maximum Current DC	10 A
Minimum Current DC	100 uA (0.1 mA)
Resolution DC Current	100 uA (0.1 mA)
Basic Accuracy V DC	± 0.8% Rdg + 3D
# Digit Display	3.75
Counts	4000 .
Backlight	No
Manual/Autoranging	Auto-ranging
Decibels	No
Resistance	Yes
Frequency	No
Capacitance	No
Temperature	No
Diode Testing	Yes
CAT Rating	II
Intrinsically Safe	No
Peak Hold	No
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	No
Low-Pass Filter	No
Test Equipment General Attributes
Unique Features	Battery Test Function with Go/NoGo LED Indicator, 7 Functions / 23 Ranges
Warranty	1 YEARS
Warranty Details	1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling
Additional Info/Comments	Vinyl Case
Product Weight	215 GRAMS (0.474 LBS)
Product Height	1.55 IN
Product Length	5.45 IN
Product Width	3.1 IN
Data Logging	No
Battery Type	Other
Power Supply Voltage	Battery Powered
Shipping Height	3.00 IN Shipping Height Value not available
Shipping Length	10.50 IN Shipping Length Value not available
Shipping Width	7.25 IN Shipping Width Value not available

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

DM9C

3.0

A good overall meter. Durable and easy to use. The down side is the audible signal is way to weak to hear. I contacted the manufacturer and they said there is no way to increase the volume.

Tech 4 on Apr 16, 2015

Recommend to a Friend

review of Amprobe DM9C

5.0

After many years of off the shelf meters, a friend told
me to get the DM9C. I did and it is the BEST.
I repair X-rays and for V, KVP, MA, CONT., the other
functions the DM9C, can't be beat

John on Apr 09, 2015
