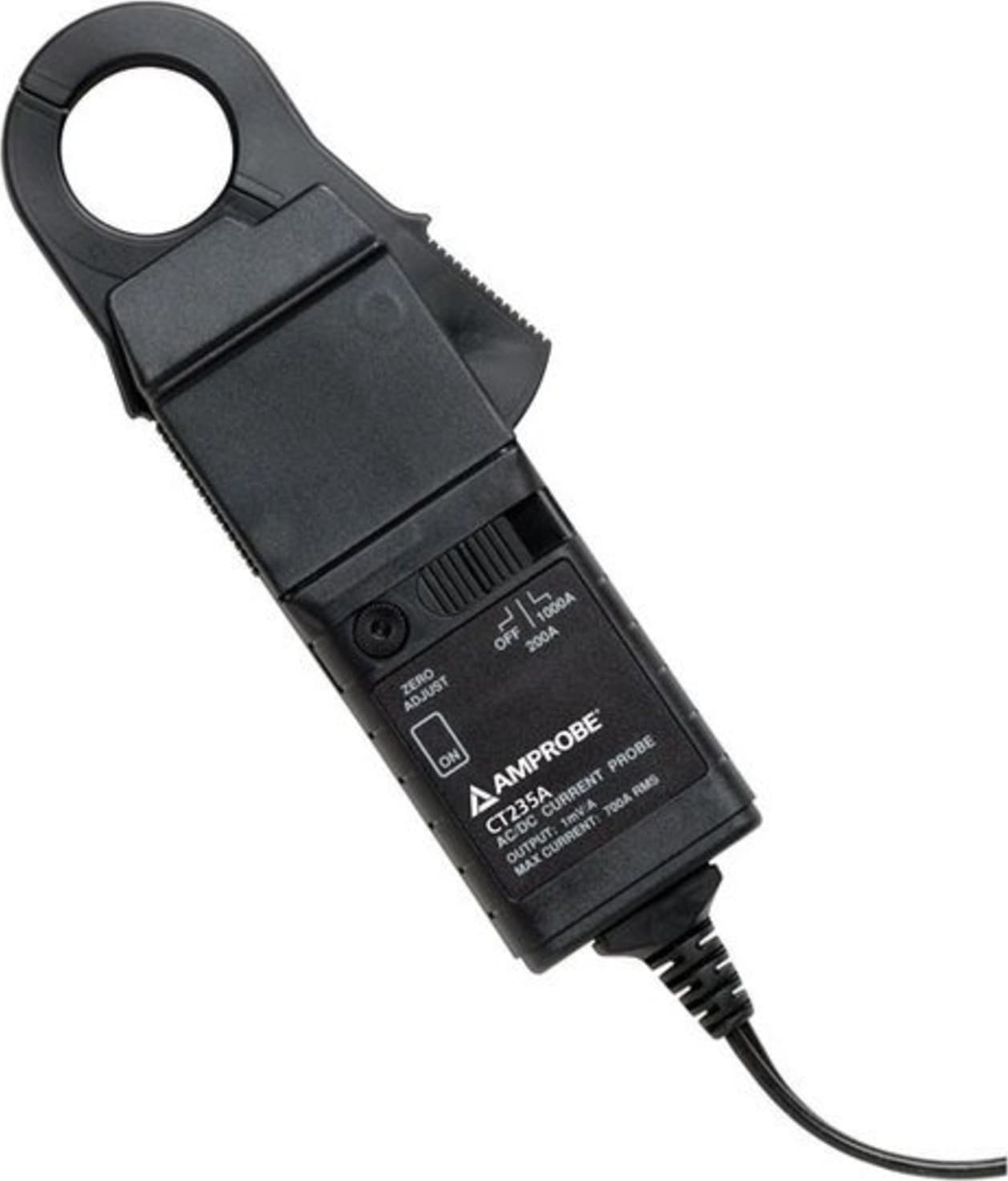

Amprobe CT235A Clamp Accessory Current Transformer

Name: Amprobe CT235A Clamp Accessory Current Transformer
Brand: Amprobe
SKU: AmprobeCT235A
Price: 253.14 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | UPC: 095969414586 | Model: Amprobe CT235A

Compare

AC/DC CLAMP-1000A

AC/DC current clamp, 1000 A
Zero adjust knob
Includes Attached leads & user's manual

View Product Details

List Price: $327.99

Your Price: $253.14

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Amprobe CT235A Accessories

Choose a Category

Line Splitters

for the Amprobe CT235A

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

This current transformer probe measures AC or DC current. It converts high current to a low level millivolt signal for input directly into a test instrument. It can be used with standard DMMs, recorders, digital or analog meters, data loggers/DAS, oscilloscopes, or other test and measurement instruments.

General Specifications
Max Conductor Size	31 mm (1.2 in)
Lead Length	1.5 m (59 in)
Power	9 V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life	50 hours (alkaline)
Operating Temperature Range	- 0°C to + 50°C at < 80 % R.H.
Storage Temperature Range	-20°C to + 85°C
Temperature Coefficient	0.1 % of rdg per 1°C
Dimensions	55 mm x 220 mm x 30 mm (2.2 in x 8.6 in x 1.2 in)
Weight	320 g (.7 lb.)
Warranty	One-year
Electrical Specifications (23 °C ± 1 °C, < 75 % R.H.)
Function	Range	Accuracy
DC Current
	Range 200 A, 1000 A	± (1 % of rdg + 0.5 A)
Meter Input Impedance	10 kΩ min. and 100 pF max.
Division Ratio	1000 to 1
	200 A: 1 A DC at jaws = 1 mV DC to meter
AC Current (DC–10 kHz)
	Range 200 A, 1000 A	± (1 % of rdg + 0.5 A)
Meter Input Impedance	10 kΩ min. and 100 pF max.
Division Ratio	1000 to 1
Output	200 A: 1 A AC at jaws = 1 mV AC to meter
	1000 A: 1 A AC at jaws = 1 mV AC to meter
Overload Protection
	>700 A for 10 minutes and 20 minutes OFF
	300 V AC on uninsulated conductors

Tech Specs

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	1000 A
Maximum Current DC	1000 A
Maximum Conductor Size	1.2 IN
Test Equipment General Attributes
Warranty	1 YEARS
Warranty Details	1 Year from the Date of Purchase. This Warranty does not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling
Product Weight	0.7 LBS
Product Height	1.2 IN
Product Length	8.6 IN
Product Width	2.2 IN
Data Logging	Yes
HTS/Schedule B Number	8536.69.8000
ECCN Number	EAR99 ECCN Number Value not available
Calibration Included	Factory Calibration
Power Supply Voltage	Battery Powered
Country of Origin	China Country of Origin Value not available
Shipping Height	1.50 IN Shipping Height Value not available
Shipping Length	11.50 IN Shipping Length Value not available
Shipping Width	5.00 IN Shipping Width Value not available
