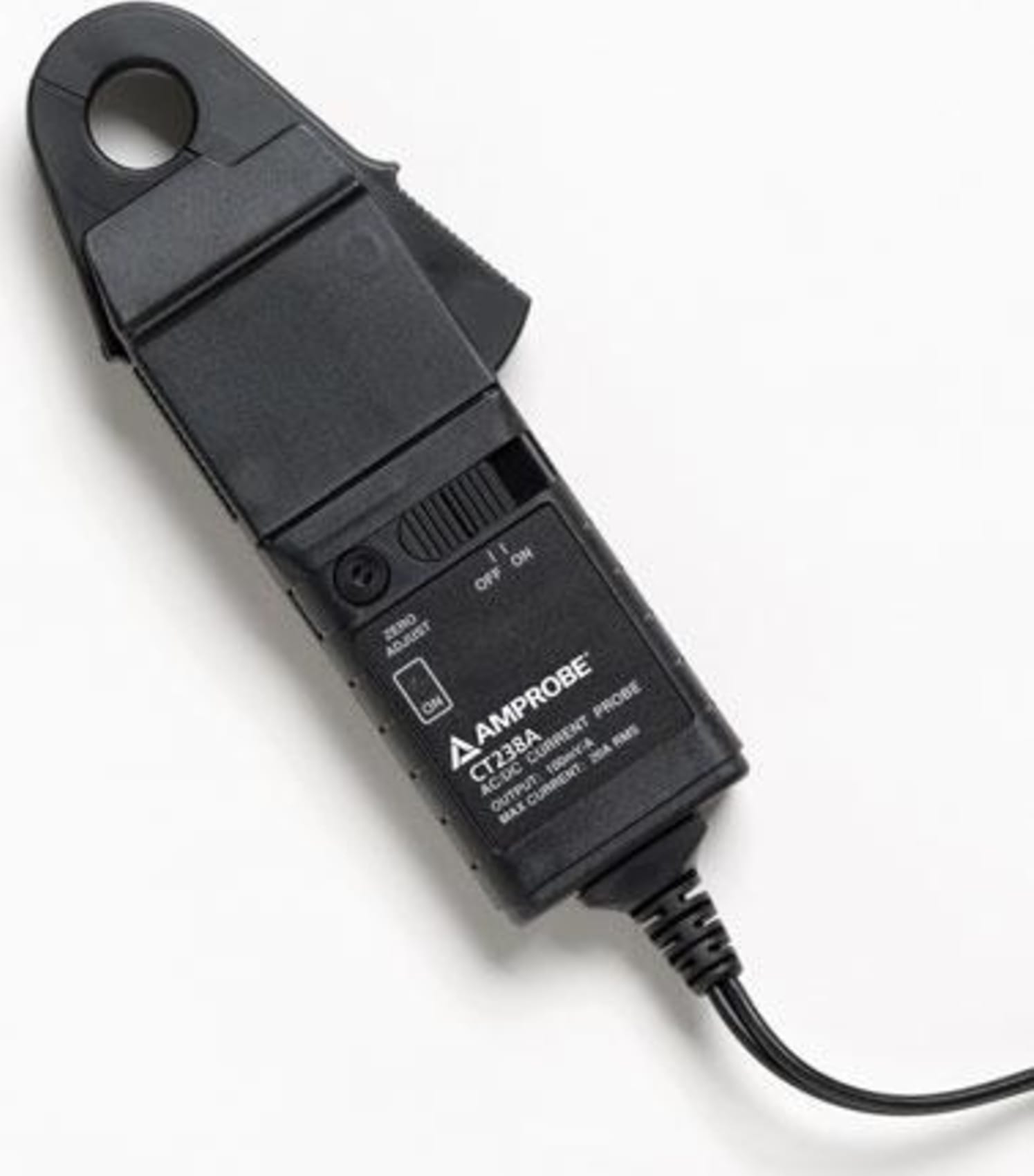

Amprobe CT238A AC/DC Current Clamp, 20 A

Name: Amprobe CT238A AC/DC Current Clamp, 20 A
Brand: Amprobe
SKU: AmprobeCT238A
Price: 416.85 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | UPC: 095969414609 | Model: Amprobe CT238A

Compare

AC/DC CLAMP-20A

AC/DC current clamp, 20 A
Special "low current" version
Zero adjust knob
Attached leads and users manual

View Product Details

List Price: $526.99

Your Price: $416.85

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Amprobe CT238A Accessories

Choose a Category

Line Splitters

for the Amprobe CT238A

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

This current transformer probe measures AC or DC current. It converts high current to a low level millivolt signal for input directly into a test instrument. It can be used with standard DMMs, recorders, digital or analog meters, data loggers/DAS, oscilloscopes, or other test and measurement instruments.

General Specifications
Max Conductor Size	19 mm (0.75 in)
Lead Length	1.5 m (59 in)
Power	9 V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life	30 hours (alkaline)
Operating Temperature Range	-0°C to + 50°C at < 80 % R.H.
Storage Temperature Range	-20°C to + 85°C
Temperature Coefficient	0.1 % of rdg per 10°C
Dimensions	55 mm x 210 mm x 30 mm (2.2 in x 8.3 in x 1.2 in)
Weight	290 g (.64 lb.)
Warranty	One-year
Electrical Specifications (23 °C ± 1 °C, < 75 % R.H.)
Function	Range	Accuracy
DC Current
DC Current	20 A max	±(1% of rdg + 2 mA)
Meter Input Impedance	10 kΩ min. and 100 pF max.
Division Ratio	10 to 1
Output	1 A DC at jaws = 100 mV DC to meter
AC Current
DC–10 kHz	20 A	20 A (< 1 kHz): ± (1 % of rdg + 2 mA)
		20 A (1 to 20 kHz): ± (3 % of rdg + 2 mA)
Meter Input Impedance	10 kΩ min. and 100 pF max.
Division Ratio	10 to 1
Output	1 A AC at jaws = 100 mV AC to meter
Overload Protection
	500 A
	300 V AC on uninsulated conductors

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	20 A
Maximum Current DC	20 A
Maximum Conductor Size	0.75 IN
Test Equipment General Attributes
Warranty	1 YEARS
Warranty Details	1 Year from the Date of Purchase. This Warranty does not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling
Product Weight	0.64 LBS
Product Height	1.2 IN
Product Length	8.3 IN
Product Width	2.2 IN
Data Logging	Yes
Calibration Included	Factory Calibration
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	1.50 IN
Shipping Length	11.50 IN
Shipping Width	4.75 IN
