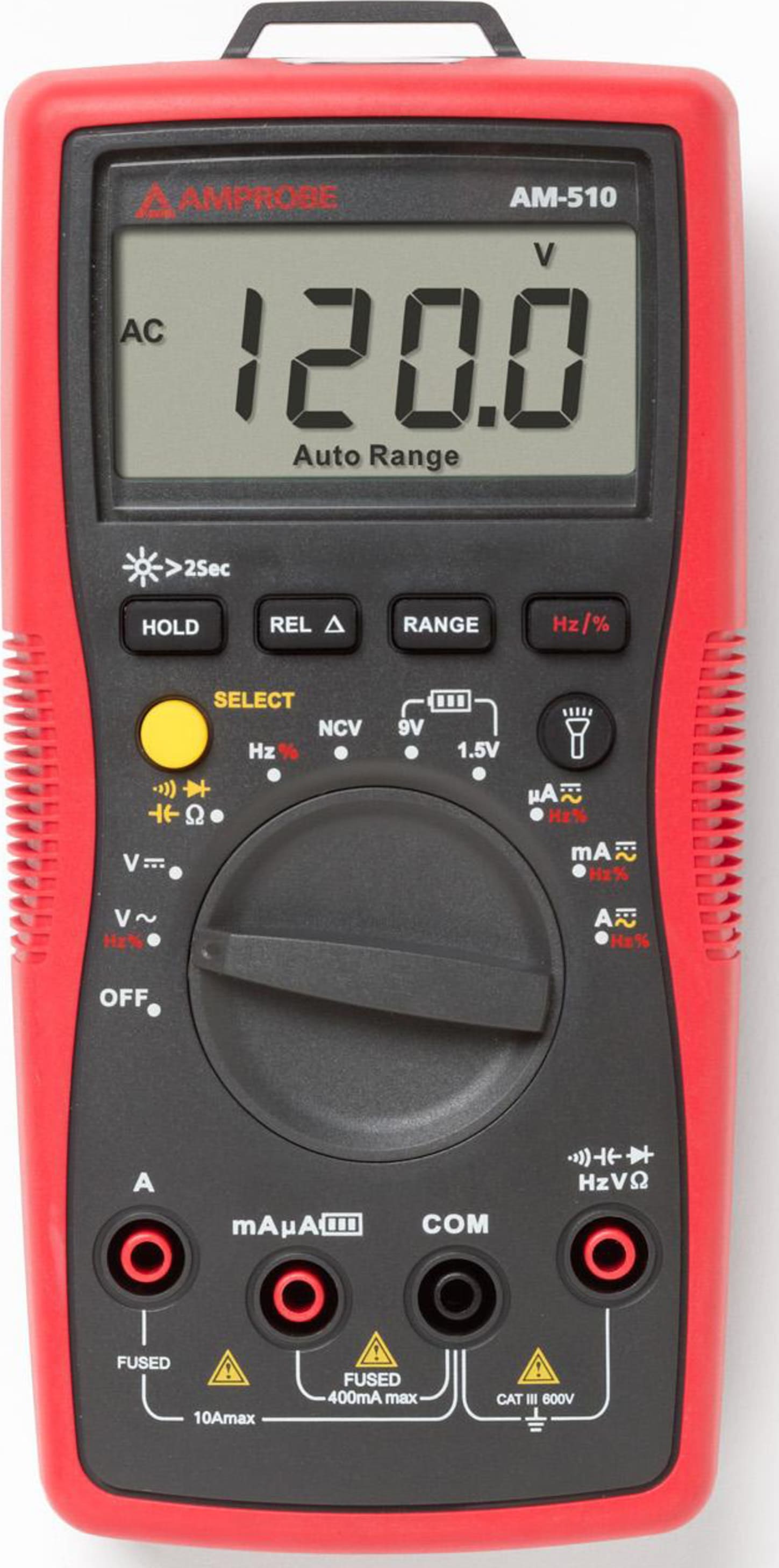

| AM-510 Detailed Specifications |
| FEATURE |
AM-510 |
Best Accuracy |
| AC Voltage |
400 mV, 4.000 V, 40.00 V |
+/- (1.0 % rdg + 3 LSD) |
| 400.0 V, 600 V |
@ 45 Hz to 400 Hz, 4 V to 400V ranges |
| DC Voltage |
400 mV, 4.000 V, 40.00 V |
+/- (0.8% rdg + 1 LSD) |
| 400.0 V, 600 V |
@ 4 V to 400 V ranges |
| Resistance |
400.0 µA, 4000 µA |
+/- (1.2% rdg + 3 LSD) |
| 40.00 mA, 400.0 mA |
| 4.000 A, 10.00 A |
| AC Current |
400.0 µA, 4000 µA |
+/- (1.0% rdg + 2 LSD) |
| 40.00 mA, 400.0 mA |
| 4.000 A, 10.00 A |
| DC Current |
400.0 Ω |
+/- (1.0% rdg + 2 LSD)
@ 4 kΩ to 400 kΩ ranges |
| 4.000 kΩ, 40.00 kΩ, 400.0 kΩ |
| 4.000 MΩ, 40.00 MΩ |
| Battery test |
0.1% to 99.9% |
|
| Duty cycle |
1.5V, 9V |
+/- (1.0% rdg + 3 LSD) |
| Ambient temperature |
23°C ±5°C (73.4°F ±9°F) |
| Relative temperature |
=75% |
| Accuracy |
±(% of reading + digits) |
| Maximum voltage between input terminal and earth ground |
AC 600Vrms or DC 600V |
| Fuse for mA µA input |
0.5A H 600V fast-fuse, (Φ6×32)mm |
| Fuse for 10A input |
10A H 600V fast-fuse, (Φ6×32)mm |
| Maximum display |
Digital 3999 counts, updates 3/sec. Frequency: 4999 counts |
| Over-range indication |
OL |
| Range |
Automatic |
| Altitude |
Operating = 2000m |
| Operating temperature |
0°C ~ +40°C (32°F ~ 104°F) |
| Relative humidity |
0°C ~ +30°C (32°F ~ 86°F) =75%; +30°C ~ +40°C (86°F ~ 104°F) =50% |
| Storage temperature |
-10°C ~ +50°C (14°F ~ 122°F) |
| Electromagnetic compatibility |
In an RF filed of 1V/m = Speci?ed accuracy ±5% |
| Battery |
9V, 6F22, NEDA1604 or equivalent |
| Dimensions (L x W x H) |
182 mm x 90 mm x 45 mm (7.2 in x 3.5 in x 1.8 in) |
| Weight |
Approx. 354g (0.78lb) with batteries installed |
| DC Voltage Measurement |
| Input impedance |
around 10MΩ; (Input impedance > 3GΩ for DC 400mV range) |
| Overload protection |
?600V |
| AC Voltage Measurement |
| Note |
400.0mV range is available for manual range only. |
| Input impedance |
around 10MΩ |
| Frequency response |
45Hz ~ 400Hz |
| Average sensing, rms indication. |
| Overload protection |
600Vrms |
| Resistance Measurement |
| 400Ω range |
Measured value = (Measured display value) ? (Short-circuiting value of probe) |
| Open circuit voltage |
around 0.5V |
| Overload protection |
600Vrms |
| Continuity and Diode measurement |
| Overload protection |
600Vrms |
| Capacitance Measurement |
| Overload protection |
600Vrms |
| Measurement of frequency/duty cycle |
| Overload protection |
600Vrm |
| Input amplitude |
(DC level is 0.) |
| 10Hz~1MHz: 300mV ≤ a ≤30Vrms |
| >1MHz~10MHz: 600mV ≤ a ≤30Vrms |
Input amplitude and frequency response must meet following conditions when reading frequency or duty cycle during AC voltage or current measurement
- Input amplitude = Range × 30%
- Frequency response: =400Hz
|
| Battery Test |
| Overload protection |
F1 fuse, 0.5A H 600V fast-fuse, (Φ6x32)mm |
| For 1.5V range: Load resistance is around 30Ω. |
| For 9V range: Load resistance is around 1kΩ |
| DC Current Measurement |
| Overload protection |
mA /μA input:F1 fuse, 0.5A H 600V fast-fuse, (Φ6x32)mm |
| 10 A input: F2 fuse, 10A H 600V fast-fuse, (Φ6x32)mm |
| AC Current Measurement |
| Frequency response |
45Hz ~ 400Hz Average sensing, rms indication |
| Overload protection |
mA /μA input:F1 fuse, 0.5A H 600V fast-fuse, (Φ6x32)mm |
| 10 A input: F2 fuse, 10A H 600V fast-fuse, (Φ 6x32)mm |
