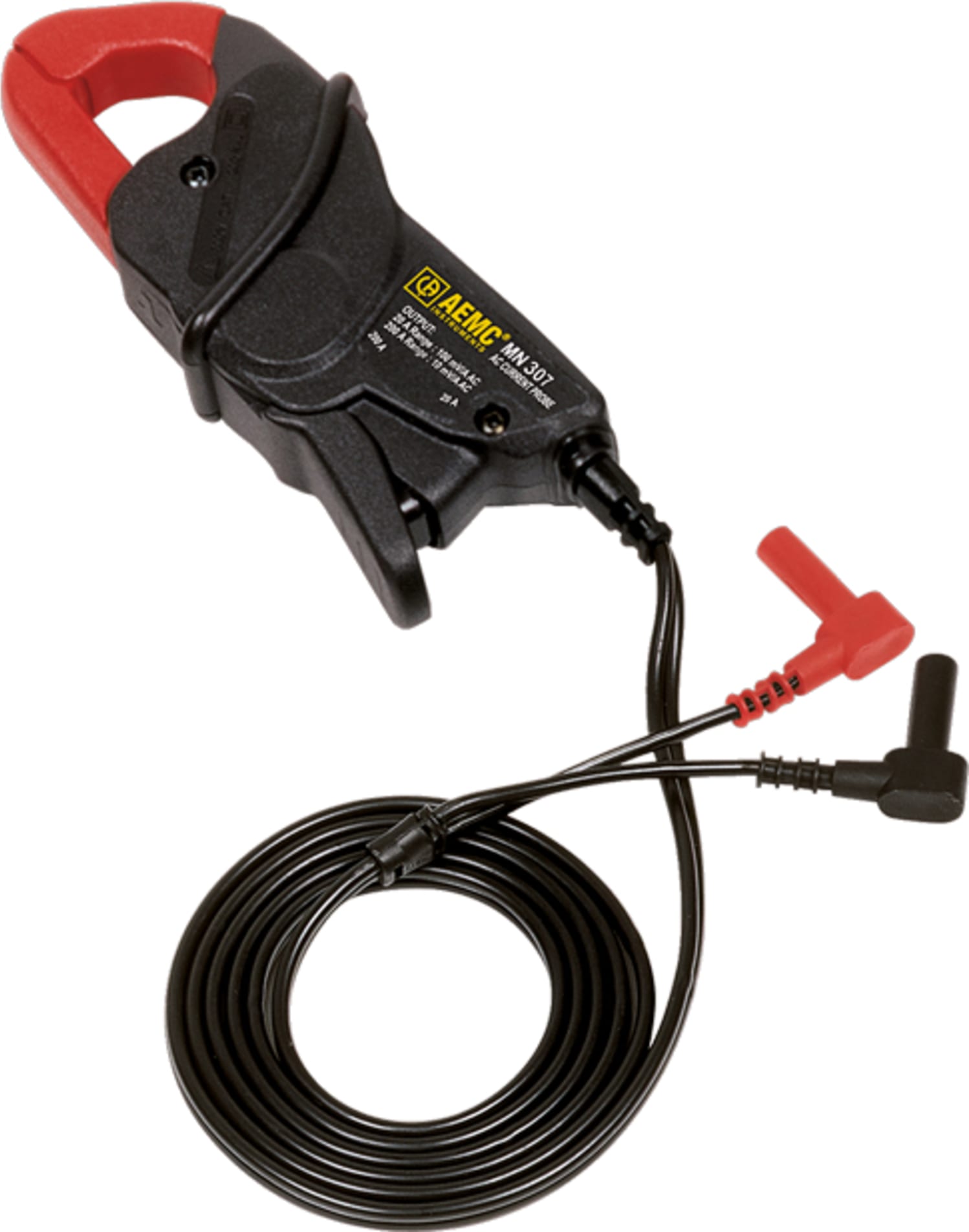

AC Current Probe (Lead - 100mV/A - 12A max)
The MN307 is designed for low AC current measurements up to 10A, such as secondary CTs or even small motors and appliances. It offers a higher voltage output of 100mV per Amp (1VAC @ 10AAC) for enhanced sensitivity at lower levels while offering a high crest factor at full range. The MN307 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.
The Model MN307 is the latest in compact AC current probes. It is designed to meet the most stringent demands in industry and electrical contracting. Model MN307 meets EN 61010, 600V, Cat. III safety standards and is CE Marked and UL approved.
The Model MN307 has a 0.78" (20mm) jaw opening and accommodates conductors up to 250MCM. The unique hooked jaw design facilitates clamping and hooking onto conductors. Polycarbonate materials and ultrasonic welding are used throughout to ensure ruggedness and overall lasting reliability.
The Model MN307 is a high-performance model and uses a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Model MN307 is an excellent probe to be used in power and low-level current measurement applications.
Applications
- Measuring in breaker panels
- Industrial loads
- HVAC
- Residential and commercial sites
- Data logging/recording
