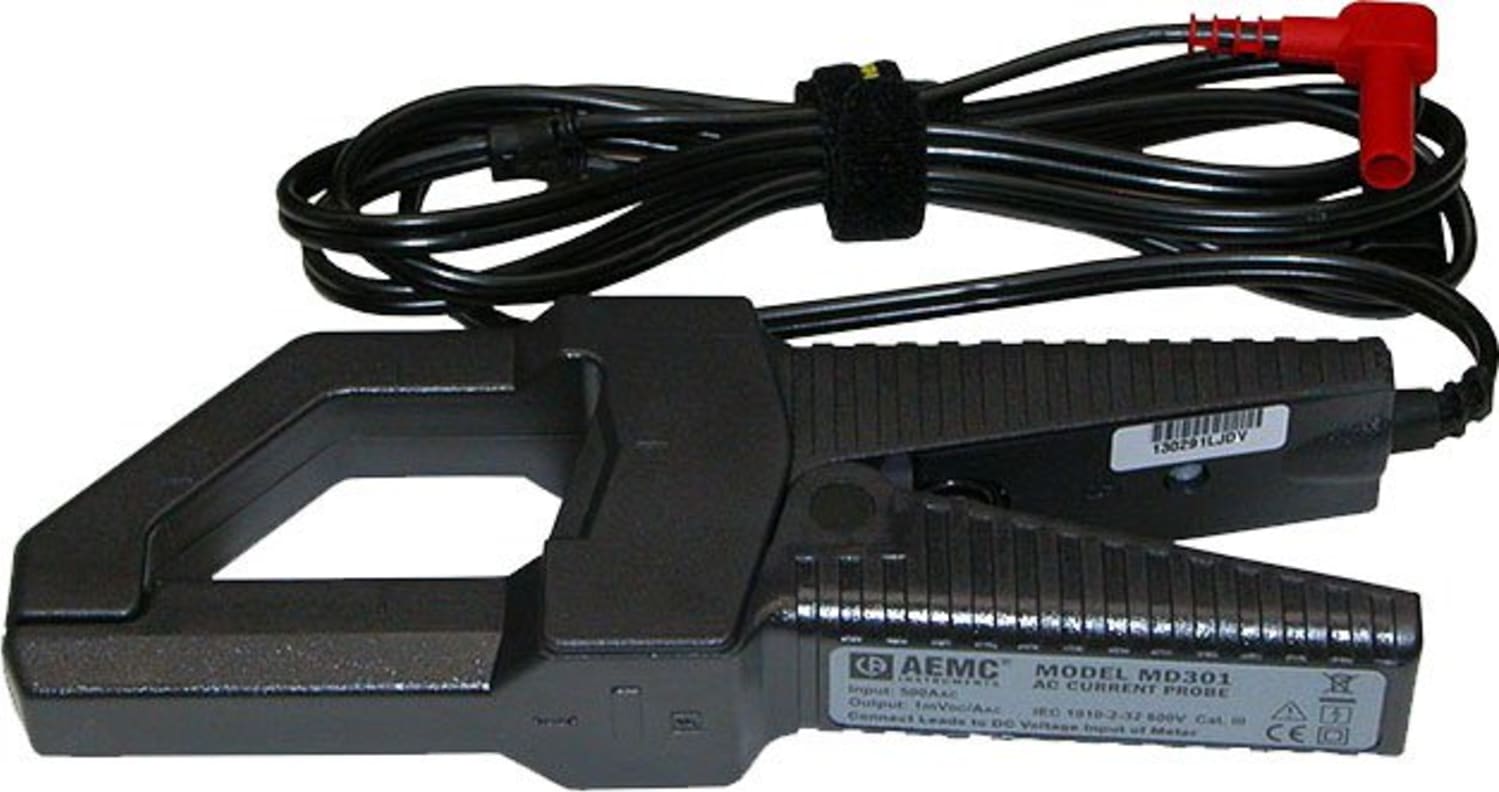

AC Current Probe Model MD301 (500A, 1mVDC/AAC, Lead)
The MD301 is built for ruggedness, versatility, and ease of use. It is a general-purpose 500A current probe, but with mVDC output for recorders, loggers, and other instruments with mVDC inputs. Output termination is double insulated 5 ft lead with safety banana plugs.
The Model MD301 is built for ruggedness, versatility, and ease of use. It is designed with a unique hook-shaped jaw that enables the user to “pry” into or “hook” onto cables (will accept 2 x 500MCM) or even smaller bus bars.
The Model MD301 measures up to 600A. It provides a voltage output proportional to the measured current (1mV/A or 10mV/A). This voltage output enables instruments without current ranges to measure, display or log currents on an AC voltage range.
Model MD301 uses Hall-effect technology and measures 1000ADC and 700AAC. The electronics and batteries are self-contained in the handles. The output of AC probes is 1mV/A.
Applications
- Electric utility
- Field testing
- HVAC
- Industrial maintenance
- Laboratory
- Plant maintenance
