DC/AC MicroProbe (1mV/mA - 4.5A max)

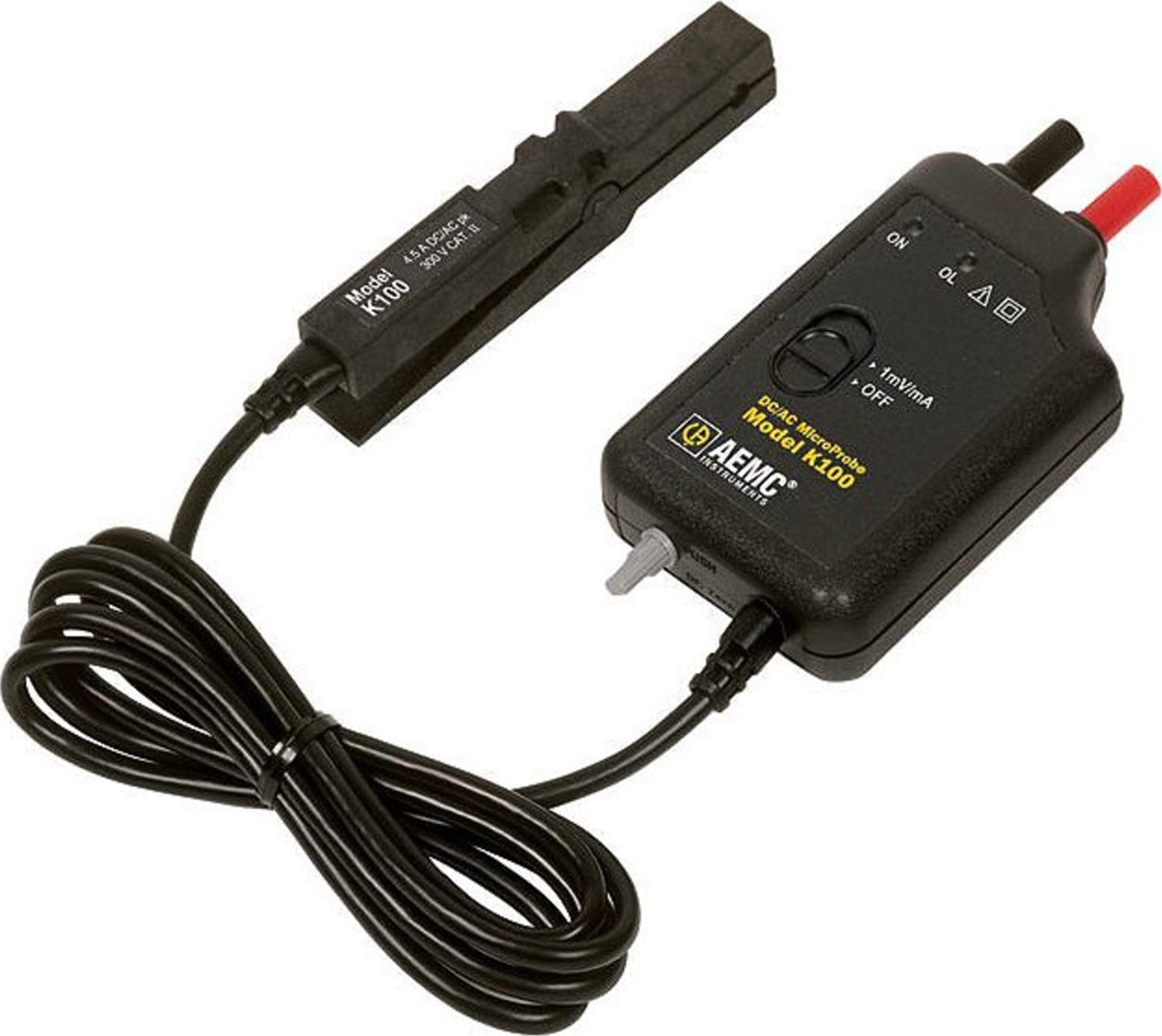

The DC/AC Microprobe Model K100 measures as low as 100µAAC or DC. The unit has proportional mV output for direct readings on DMMs, loggers, and oscilloscopes.
The Model K100 has exceptional AC/DC current measurement capabilities. Very small and compact, this microprobe is designed for accurate measurement of very low currents with 50µADC sensitivity.
It's very small size and “clip” shape make it ideal for probing and measuring in tight wiring areas such as circuit boards, 4 to 20mA process loops, or automotive electronic circuitry. Model K100 is an excellent companion to all DMMs and instruments that will benefit from the probe’s high sensitivity, dynamic range, and waveform displaying characteristics.
The Model K100 provides a 1mV/mA output and is designed for versatility and general low current applications. It provides AC + DC output signal proportional to the total current under test, without the need for probe ranging or signal filtering. True RMS measurements with total AC + DC components are possible.
Applications
- Industrial process controls (4 to 20mA current loops)
- Electronic circuit design, testing, and repair
- Automobile wiring and engine control systems
- Avionics systems maintenance and repair
- Shipboard maintenance and repair
- Fault and signal location in complex networks
- Ground and leakage current measurement
- Pre-deployment testing of power-conscious equipment
