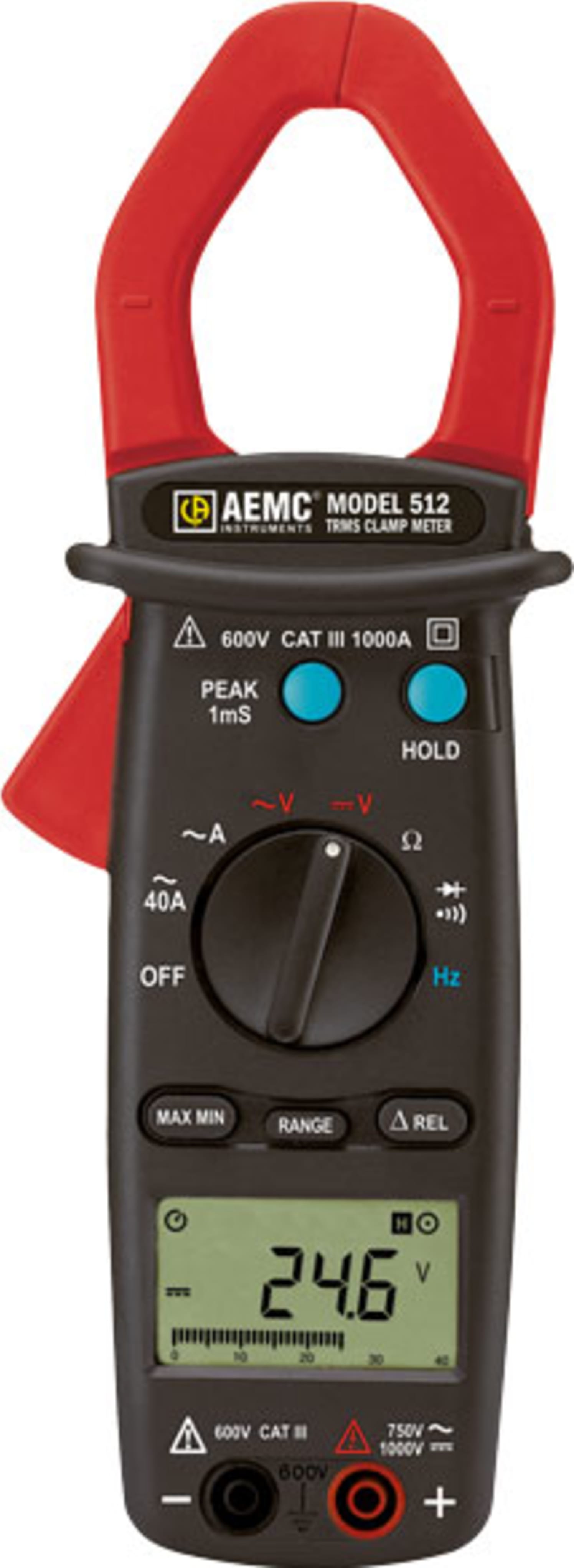

Clamp-On Meter (TRMS, 1000AAC, 750VAC/1000VDC, Hz, Ohms, Continuity)

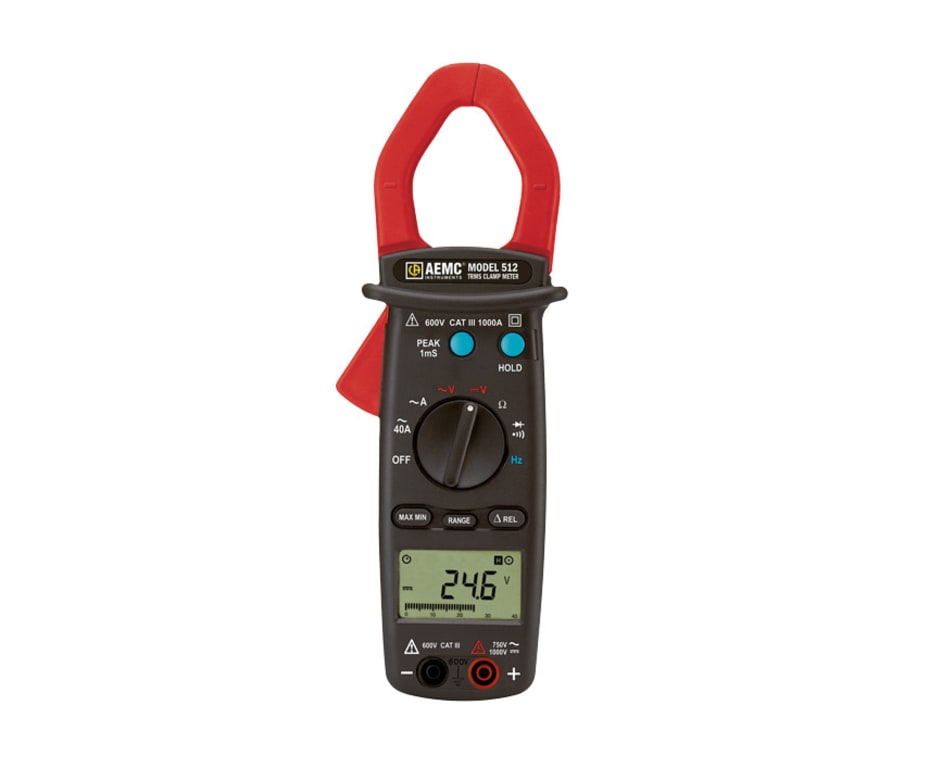

The Clamp-On Meter Model 512 is a general-purpose professional clamp-on meter that measures up to the toughest standards. It is built into a rugged mechanical case and is designed using quality polycarbonate materials. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The Model 512 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high-resolution 40A range.
Model 512 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function. The Model 512 is sized for a comfortable, one-handed operation. This model is a True RMS clamp-on that provides RMS measurements for today's non-linear electrical environments. The jaw opening for the Model 512 is 1.575" (40mm).
The AEMC Models 511, 512, and 514 are general-purpose professional clamp-on meters that measure up to the toughest standards. They are built into a rugged mechanical case and are designed using quality polycarbonate materials. These meters offer a complete set of measurement ranges and are in compliance with international safety and quality standards to ensure professional and reliable measuring tools. Models 511 and 512 are Auto-Ranging and provide the best measurement range and resolution for troubleshooting. They also have a high-resolution 40A range.
They measure AC Amps, AC Volts, as well as DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and have a Diode Test function. Model 514 also uses Hall Effect sensor technology that provides both DC and AC current measurements to 1000A.
Models 511, 512, and 514 are sized for comfortable, one-handed operation. The tapered and hooked jaw design facilitates maneuvering in crowded wiring and breaker panels, making it easy to select conductors. The jaw opening accommodates one 750MCM cable or two 350MCM cables. The large and easy-to-read 4000-count LCD features comprehensive user information symbols, such as a low battery, polarity, overload, and an analog bar graph for easy trend readings. All models are equipped with a Data Hold function that freezes the measurement for later viewing, Min/Max, and a fast 1ms Peak Hold function for the capture of signals.
The Model 511 is average sensing and designed for traditional average responding electrical systems. Models 512 and 514 are True RMS clamp-ons that provide RMS measurements for today's non-linear electrical environments.
All models include a pair of test leads (red/black with probe tips), a 9V battery, a soft carrying pouch, and a user manual - ready to go!
Applications
- Commercial, industrial, residential, and HVAC troubleshooting
- Power panel, junction box, and battery bank monitoring
- AC or DC motor testing
- Power plant troubleshooting
- Electrical testing and troubleshooting on traditional and non-linear loads, such as adjustable speed drives and computers
