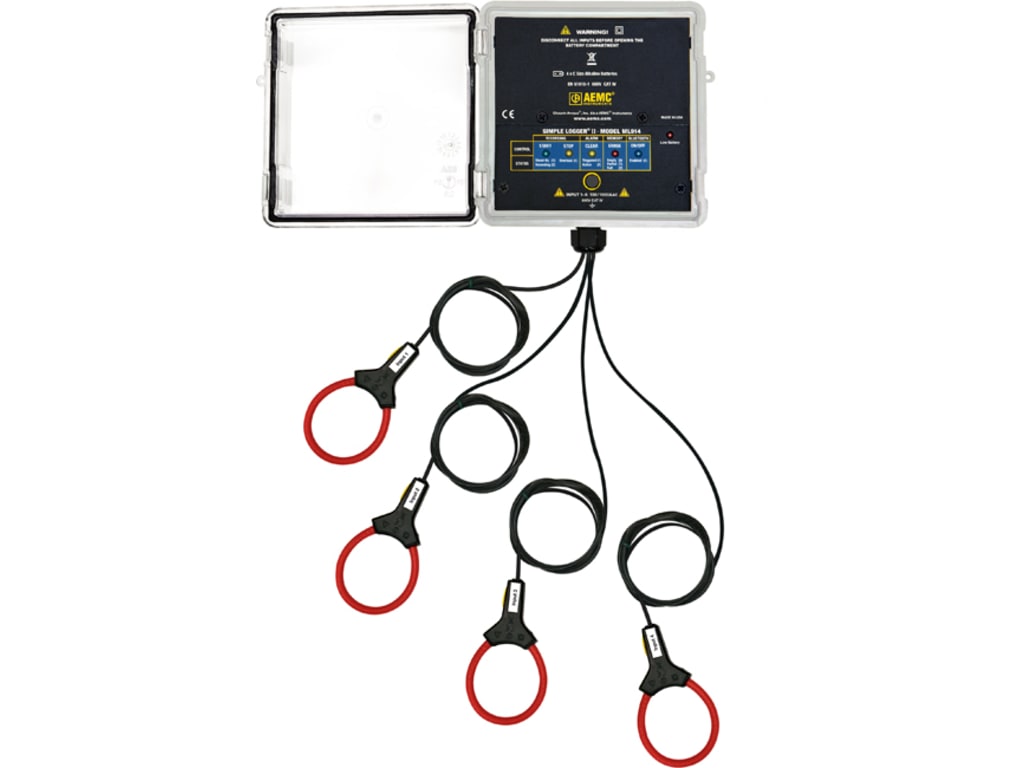

The Simple Logger II (Bluetooth Edition) Model ML914 is a 4-channel AC current recording device powered by alkaline batteries and includes four integral 6" MiniFlex flexible current probes. The ML914 incorporates two user-selectable measurement ranges of 100 and 1000 Amps. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed around the nominal line frequency (50 or 60Hz). Harmonic measurements are calculated from these 64 samples and are only available from the Simple Logger II Control Panel within the DataView software.
The Simple Logger II stores TRMS at user-programmable rates of up to eight times per second. TRMS calculations are performed on a single line cycle. The main advantage of the logger is its ability to perform a variety of recording tasks with an easy and intuitive setup from a computer using DataView software.
Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information Bluetooth communication provides for the transfer of data from the instrument's internal memory to the computer for analysis.
Applications:
- Single/Split phase and 3 phase load monitoring
- Neutral and ground current monitoring
- Intermittent problem detection
- Harmonic current monitoring using DataView software
- Machine load monitoring
- Fault current detection
- Load profiling
Configure all data logger functions
- Display and analyze real-time data on your PC
- Configure all data logger functions and parameters from your PC including sample rate, recording length, channel configuration, and more
- Create and store a complete library of configurations that can be uploaded to the logger as needed
- Zoom in and out and pan through sections of the graph to analyze the data
- Download, display, and analyze recorded data
- Display waveforms, trend graphs, harmonics (AC models), and text summaries
- Create custom views and reports
- Print reports using standard or custom templates you design
