Operating Range |
Current Range |
100mA to 1200 Arms (2000A peak) |
Frequency Range |
1Hz to 100kHz (@ -3dB) See typical response curves |
Common Mode Voltage |
600VAC |
Crest Factor |
£6 |
Current Overload |
1200A for 40 min ON, 20 min OFF |
Current Overload |
Range Value |
1mV/A (1V at 1000A), 10mV/A (1V at 100A), 100mV/A (1V at 10Arms) |
Overload |
1200A for 40 min ON, 20 min OFF duty cycle, 20A continuous 12A continuous |
Load Impedance |
1MW @ 47pF |
Open Secondary Voltage |
< 25V by limiting circuit |
Reference Conditions |
23°C ±3°K, 20 to 75% RH, 48 to 65Hz, external magnetic field <40A/m, no DC component, no external current carrying conductor, test sample centered. Load impedance 1MW/47pF |
Working Voltage |
600V, Cat. III |
Influence of Adjacent Conductor |
<0.2mA/AAC |
Influence of Conductor Position |
0.02% of Reading @ 50/60Hz |
Influence of Frequency |
Range |
1mV/A, 10mV/A |
Range Value |
10 to 1000Hz, 1 to 10kHz, 10 to 50kHz, 50 to 100kHz, 10 to 1000Hz, 1 to 10kHz |
Range |
10mV/A, 100mV/A |
Influence of Humidity |
10 to 90%: £0.1% |
Output Signal |
Range Value |
1mV/A, 10mV/A, 100mV/A |
Output Signal |
1A to 2000A peak, 0.1A to 200A peak, 10mA to 20A peak |
Accuracy |
Current Range |
1mV/A (1V at 1000A), 10mV/A (1V at 100A), 100mV/A (1V at 10Arms) |
Accuracy |
Per IEC 185-26-27 |
Mechanical Specifications |
Altitude |
Operating: 0 to 2000m; Non-operating: 0 to 12Km |

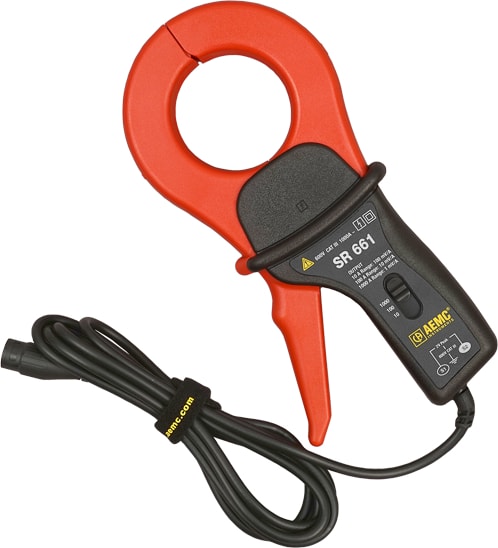

Colors |
Dark gray handles with red jaws |
Dimensions |
4.37 x 8.50 x 1.77" (111 x 216 x 45mm) |
Drop Test |
1m (IEC 68-2-32) |
Jaw Opening |
2.25" (57mm) max |
Material |
Handles: Polycarbonate +ABS Gray: UL 94 V0; Jaws: Polycarbonate, Red: UL 94 V0 |
Maximum Bus Bar Size |
1.95 x 0.19" (50 x 5mm) |
Maximum Cable Diameter |
2.05" (52mm) |
Mechanical Shock |
100g (IEC 68-2-27) |
Operating Temperature |
14° to 122°F (-10° to 50°C) |
Operating Relative Humidity |
0 to 85% @ 35°C |
Output |
6 ft (2m) insulated lead with insulated BNC Connector |
Protection Index (IP) |
IP 40 (IEC 529) |
Impact Test |
IK04 0.5 J EN50102 |
Storage Temperature |
-4° to 158°F (-20° to 70°C) |
Vibration |
Test per IEC 68-2-6 |
Vibration |
Range Value |
5 to 15Hz, 15 to 25Hz, 25 to 55Hz |
Vibration |
Amplitude: 0.15 mm per IEC 68-2-6, Amplitude: 1 mm per IEC 68-2-6 Amplitude : 0.25 mm per IEC 68-2-6 |
Weight |
1.21 lbs (550g) |
External Influences |
Influence of Temperature |
£0.15% per 10K° |
Safety Reference Specifications |
Safety Ratings |
EN 61010-2-32 |
Agency Approvals |
CE Mark |
