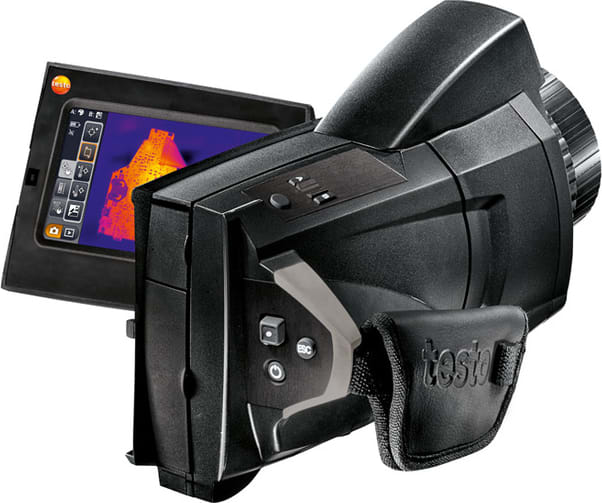

You can carry out completely damage-free tests on materials and components with the thermal imager testo 890-1. Thanks to the 640 x 480-pixel detector, in combination with the high-quality Germanium optics, the testo 890-1 achieves the highest level of image quality. This allows weak spots and problems to be reliably detected in industrial and building thermography. In combination with the Testo SuperResolution technology, the testo 890-1 records extremely high-resolution images in megapixel quality (1280x960 pixels). This means that even the smallest or very distant measurement objects can be thermographed with an extremely high level of precision.
- Detector size 640 x 480 pixels: With 307,200 temperature measurement points, the measurement objects are detected in outstanding image quality, extremely clearly and precisely.
- SuperResolution technology to 1280 x 960 pixels
- SuperResolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.
- Flexibility thanks to rotatable handle and fold-out, rotatable display
- Thermal sensitivity < 40 mK
- Thanks to an excellent temperature resolution of < 40 mK, even the smallest temperature differences are visible.
- Large field of view thanks to 42 º lens
- With the standard wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
- Panorama image assistant
- For large measurement objects, the panorama image assistant allows the analysis and documentation of a total image stitched together from many individual images. There is no need to administer, view and compare several images.
- Site Recognition Technology
- For repetitive thermography of similar measurement objects, the SiteRecognition technology offers the direct recognition, allocation and archiving of the measurement sites, as well as the automatic allocation and archiving of the the thermal images.
- High temperature up to 1200 ºC
- With the high temperature option, the measuring range can be flexibly extended up to 1200 ºC.
- Special measurement mode for detecting areas with danger of mould
- Lens protection glass
- Auto focus
- Built-in digital camera with power LEDs
- Minimum focus distance 10 cm
- Voice recording using headset
Outstanding performance in every application – testo 890
![]() |
See all the details in the infrared image in high resolution – even at a great distance.
Large distances to the measurement object require either a reduction of the distance or superior technology. In many situations, thermographic measurement technology is the solution: because faulty connections in high-voltage masts simply cannot be examined from close up. With the high-resolution detector and the high-quality telephoto lens of the testo 890, one obtains the necessary attention to detail in the thermal image at such distances – and can thus carry out meaningful analyses. Find more information.
|
![]() |
Make critical temperature curves of the smallest components visible in high resolution: fully radiometric video measurement
Electronic components are becoming smaller and smaller, the demands on heat withdrawal are increasing. For optimization purposes, an examination of temperature conditions using a high-resolution thermal imager with high thermal sensitivity is expedient, and the analysis of warming and cooling behavior over defined time intervals is often required. The testo 890 offers both – and the possibility of recording fully radiometric video sequences. Find more information on this professional thermography.
|
testo 890 – megapixel thermal images and fully radiometric video measurement
The thermal imager testo 890 in the new ergonomic camcorder design offers excellent image quality for even the highest demands. With the 640 x 480 pixel detector (in combination with the SuperResolution technology, the testo 890 can even record extremely high-resolution thermal images in megapixel quality), and the excellent thermal sensitivity of < 40 mK, even the smallest or very distant measurement objects and the finest temperature differences are made visible in the high-resolution infrared image.
testo 890: Thermography now with SuperResolution technology, also in high-resolution megapixel quality
With the optionally available SuperResolution technology, you improve the infrared image quality of the testo 890 by one class in no time. Four times more measurement values and a geometric resolution of the infrared image improved by a factor of 1.6 means for you: higher-resolution images (1280 x 960 Pixel) in megapixel quality, excellent thermal sensitivity (< 40 mK) and even more reliability in your measurement.
The advantages of testo 890
![]() |
Detector size 640 x 480 pixels
With 307,200 temperature measurement points, the measurement objects are detected in excellent image quality, clearly and precisely.
|
![]() |
SuperResolution technology (to 1280 x 960 pixels)
SuperResolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.
|
![]() |
Thermal sensitivity < 40 mK
Thanks to an excellent temperature resolution of < 40 mK, even the smallest temperature differences are visible.
|
![]() |
Large field of view thanks to 42° lens
With the 42° standard wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
|
![]() |
Panorama image assistant
For large measurement objects, the panorama image assistant allows the analysis and documentation of a total image stitched together from many individual images. There is no need to administer, view and compare several images.
|
![]() |
SiteRecognition technology
For repetitive thermography of similar measurement objects, the SiteRecognition technology offers the direct recognition, allocation and archiving of the measurement sites, as well as the automatic allocation and archiving of the the thermal images.
|
![]() |
High temperature up to 1200°C
With the high temperature option, the measuring range can be flexibly extended up to 1200 °C.
|
![]() |
Fully radiometric video measurement incl. logger function (via USB)
With the fully radiometric video measurement thermal processes can be thermally analyzed in real time (also periodically and event based). For every instant, all temperature measurement points are exactly available per pixel.
|
