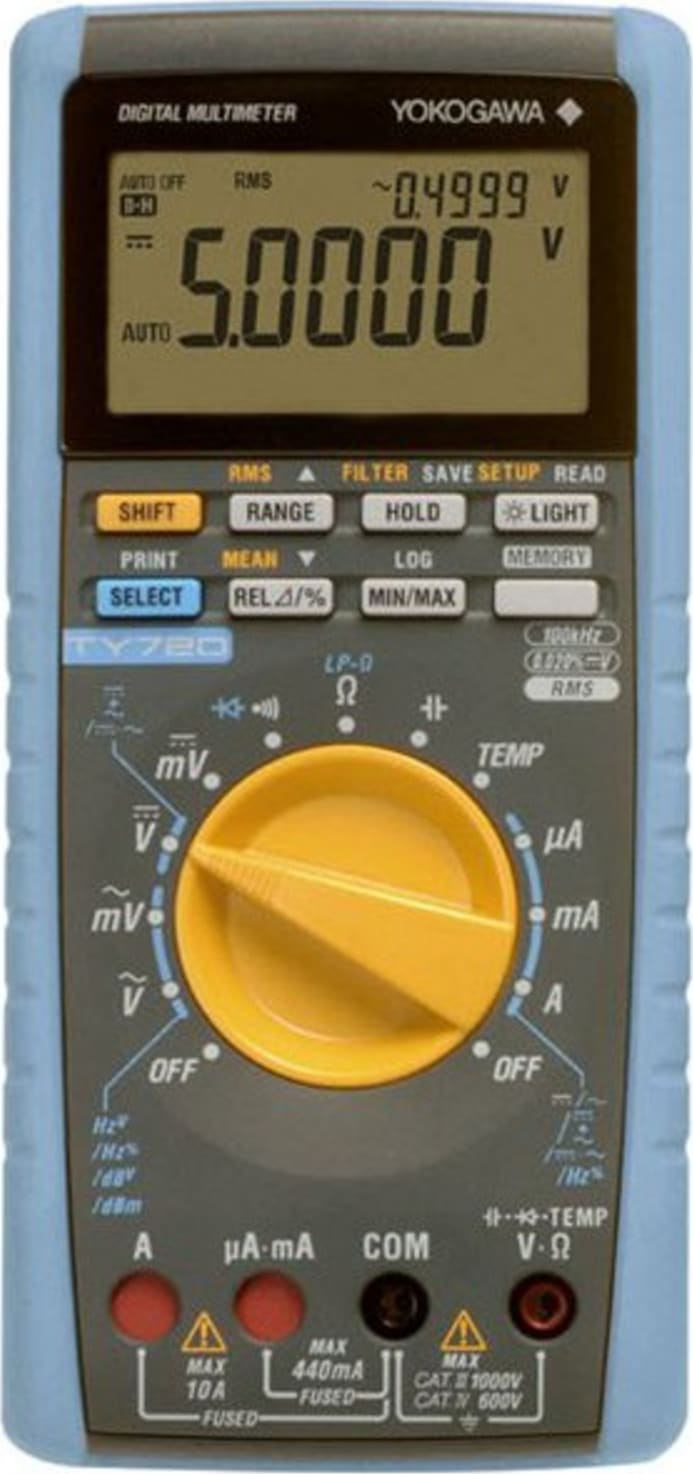

Yokogawa TY720 Advanced Type Digital Multimeter

Name: Yokogawa TY720 Advanced Type Digital Multimeter
Brand: Yokogawa
SKU: YokogawaTY720
Price: 565.00 USD
Availability: InStock

0 reviews | Model: Yokogawa TY720

Compare

4.5 digits, 50,000 count, DCV, ACV, DCV ACV, Ohm, DCA, ACA, DCA ACA, Freq., Temp., Cap., /-0.02%, 10,000 logging memory, 100 kHz freq. bandwidth

Highest Precision
Basic accuracy 0.020%
True RMS measurement
New Functions for Electronic and Industrial Use
Simultaneous measurement and display of DC and AC
Switchable RMS/MEAN detection
Low-pass Filter (LPF)
AC50mV range
Lo-Power resistance measurement (TY720 only)
Full Support for Data Management
A large-capacity logging-mode memory
TY710: 1,000 data
TY720: 10,000 data
USB communication, application software (Optional DMM communication package)
Safe Design and Wide Temperature Range for Harsh Use
Conforms to safety standards EN61010-1 1000V CAT.III , 600V CAT.IV
Safety shutters for preventing erroneous insertion of test leads into current measurement terminals
Operating temperature range -20 to +55C
Storage temperature range -40 to +70C
Closed Case Calibration
3-year Warranty

View Product Details

In Stock:

Call Us



Product	Yokogawa TY720 4.5 digits, 50,000 count, DCV, ACV, DCV ACV, Ohm, DCA, ACA, DCA ACA, Freq., ...	Yokogawa TY710 4.5 digits, 50,000 count, DCV, ACV, DCV+ACV, Ohm, DCA, ACA, DCA+ACA, Freq., ...
Price
In Stock
Style	Hand-Held	Hand-Held
Measures AC V	Yes	Yes
Measures DC V	Yes	Yes
Compare	Add to compare	Add to compare

Recommended for you

Choose a Category

(13)

In Stock!

Add to Cart

(4)

In Stock!

Add to Cart

(0)

In Stock! Contact us for price

Call Us

Additional Functions	Data hold/auto hold/peak hold (TY720 only), range hold, maximum/minimum/average values resistance, capacitance zero, relative and percentage value calculation, manual-mode memory, logging-mode memory, auto power off, backlight (white LED)
Display	4.5-digit LCD: 7-segment Digital display: Main display; [50,000] counts Sub-display ; [50,000] counts Bar graph display: 51-segment Polarity indicator: “-” appears automatically when the polarity is negative Overrange indicator: “OL”
Measuring Rate	6 times/sec (Frequency: 1 time/sec, Capacitance: max. 0.03 times/sec (50mF), Resistance: 4 times/sec) Bar graph display: 15 times/sec
Operating Temp. & Humidity	-20 to 55?; 80% RH or less (no condensation) 40 to 55C: 70% RH or less
Storage Temp. & Humidity	-40 to 70?; 70% RH or less (no condensation)
Power Supply	Four AA (R6) dry cells
Battery Life	Approx. 120 hours (for continuous DC voltage measurement with alkaline cells)
Withstanding Voltage	6.88kV for 5 seconds (between input terminals and casing)
Dimensions	Approx. 90(W) x 192(H) x 49(D) mm
Weight	Approx. 560g (including batteries)
Compliance with Standards	Safety EN61010-1, EN61010-031, 1000V CATIII, 600V CATIV, pollution level 2, indoor, 2000m max. above sea level EMC: EN61326-1 Class B, EN55011 Class B Group 1

Basic Accuracy & Ranges

DCV	0.02% + 5, 50.000 mV to 1000.0 V
ACV:RMS	0.4% + 30, 50.000 mV to 1000.0 V
Resistance Measurement	0.05% + 2, 500.00 O to 50.000 MΩ
Continuity Check	Buzzer Sounds at 100 Ω or less, Range:500.0 Ω
Diode Test	1.0% + 2, 2.4000 V

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	1000 V
Maximum Voltage DC	1000 V
Maximum Current AC	10 A
Maximum Current DC	10 A
Basic Accuracy V DC	0.05% + 10; .02% + 2; .025% + 5; 03% + 2
# Digit Display	4.5
Counts	50000 .
Backlight	Yes
Manual/Autoranging	Auto-ranging
Decibels	Yes
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
CAT Rating	III
CAT Voltage	1,000 V
Intrinsically Safe	No
Peak Hold	Yes
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	Yes
Test Equipment General Attributes
Unique Features	Terminal shutters
Warranty	36 MONTHS (3 YEARS)
Product Weight	560 GRAMS (1.23 LBS)
Product Height	49 MM (1.93 IN)
Product Length	90 MM (3.54 IN)
Product Width	192 MM (7.56 IN)
Data Logging	Yes
HTS/Schedule B Number	9030.33.3400
ECCN Number	EAR99
Calibration Included	Factory Calibration
Country of Origin	Thailand
