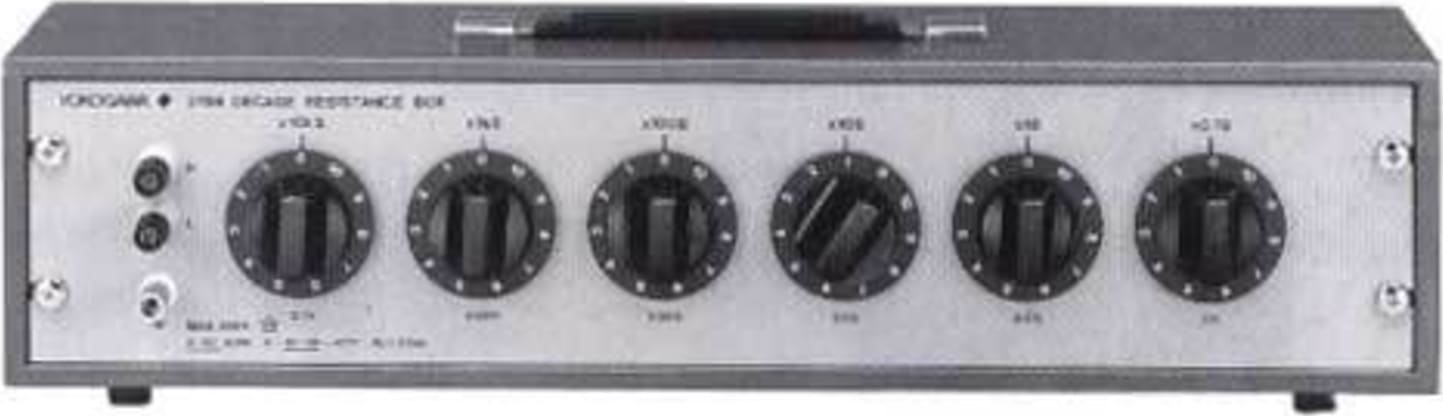

Yokogawa 278620 Decade Resistance Box, 1-111, 111 ohm (6 Decade Dials)

Name: Yokogawa 278620 Decade Resistance Box, 1-111, 111 ohm (6 Decade Dials)
Brand: Yokogawa
SKU: Yokogawa278620
Price: 3600.00 USD
Availability: InStock

0 reviews | Model: Yokogawa 278620

Compare

Decade Resistance Box, 1-1111110 ohm (6 Decade Dials)

Yokogawa 278620 six-dial decade resistance boxes allow quick and easy setting of a wide range of resistance.
These resistance boxes are used in combination with voltage or current standards to adjust voltage or current, as dummy load resistances or as an arm of AC bridges.

View Product Details

Your Price: $3,600.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Yokogawa 278620 Decade Resistance Box, 1-1111110 ohm (6 Decade Dials)	Yokogawa 278610 Decade Resistance Box, 0.1-111111 ohm (6 Decade Dials)	Yokogawa 279301 Decade Resistance Box, 1 M ohm	Yokogawa 279303 Decade Resistance Box, 100 M ohm
Price
In Stock
Minimum Resistance (decade box)	1 Ohms	0.1 Ohms	0.1 Ohms	0 Ohms
Maximum Resistance (decade box)	1111110 Ohms (1111110000 m Ohms)	111111 Ohms (111111000 m Ohms)	1111.21 Ohms (1111210 m Ohms)	111.111 M Ohms (111111000000 m Ohms)
# Decades/Steps/Range	6	6	6	6
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Yokogawa 278620 Decade Resistance Box, 1-111 , 111 ohm (6 Decade Dials)

Yokogawa 278620 six-dial decade resistance boxes allow quick and easy setting of a wide range of resistance.
These resistance boxes are used in combination with voltage or current standards to adjust voltage or current, as dummy load resistances or as an arm of AC bridges.

Yokogawa 278610 and 278620 six-dial decade resistance boxes allow quick and easy setting of a wide range of resistance. These resistance boxes are used in combination with voltage or current standards to adjust voltage or current, as dummy load resistances or as an arm of AC bridges.

Yokogawa 278620 General Specifications
Resistance Range	1 to 1,111,110Ω (Six decade dials)
Residual Residence	Less than 23mΩ
Power Rating	0.3W/Step, Within 3W for overall instrument
Maximum Allowed Input	0.5W/Step, 5W for Overall Instrument
Maximum Circuit Voltage	250V
Operating Temperature Range	0 to 40°C ( 32 to 104°F)
Storage Temperature Range	-10 to 50°C (14 to 122°F)
Humidity Range	25 to 85% relative humidity
Insulation Resistance	More than 500MΩ at 500V DC between panel and circuit
Dielectric Strength	1,500 V AC for one minute
Dimensions	497(W)×116(H)×140(D)mm, excluding protrusions 19.57 x 4.57 x 5.51 in
Weight	Approx. 3.5kg 7.7 lbs

Decade Boxes/Resistance Decade Box / Precision Resistance Template
Minimum Resistance (decade box)	1 Ohms
Maximum Resistance (decade box)	1111110 Ohms (1111110000 m Ohms)
# Decades/Steps/Range	6
Max Resolution (Ohms)	0.1 Ohms (100 m Ohms)
Programmable	No
Test Equipment General Attributes
Warranty	12 MONTHS (1 YEARS)
Product Weight	3.5 KILOS (7.72 LBS)
Product Height	120 MM (4.72 IN)
Product Length	116 MM (4.57 IN)
Product Width	497 MM (19.57 IN)
HTS/Schedule B Number	9030.33.0040
ECCN Number	EAR 99
Calibration Included	Factory Calibration
