0 reviews | Catalog: WXD2020N | UPC: 037103305275 | Model: Weller WXD2020
WXD 2020 DESOLDERSTATION, WXDP/WXP 120
List Price: $2,070.00
Your Price: $1,966.50
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
(1)
(3)
(5)
(7)
(15)
(4)
(2)
(71)
(8)

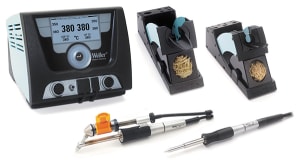

The Weller WXD2020N is a two channel soldering and desoldering station with digital controls, capable of powering one 200 watt, or two 120 watt tools simultaneously. As part of the WX family, the WXD2020N is compatible with many WX handpieces and peripherals, making it easily customized to your particular application. Please note, the WXD2020N does not contain an electric pump - it requires an external source of compressed air for the vacuum function to operate. If you do not have shop air in your facility, please see the WXR3N three channel rework station. On screen menus are easily navigated through a capacitive touch screen. Made of real glass, the screen is anti-static, temperature resistant and simplifies station usage. A turn and click wheel with confirm button also allows for very intuitive and fast operation. The WX series was designed for ease of use. Irons contain a visual indicator letting operators know when their tool is ready to use. If the handle’s LED is blinking, the device is in standby or heating up. When the light is on, the tip is ready to use. In addition, WX tools contain a motion sensor, so that they only turn on when in use, and go into standby when placed in the stand.
External compressed air supply The maintenance-free Venturi unit produces a constant vacuum via an external compressed air supply. A separate compressed air supply is needed.
Huge cost savings The relatively low operating temperature (380°C) and automatic standby mode controlled by the use sensor increase the service life of the suction nozzles by a factor of 3.
Fastest desoldering iron With its 120 Watts and extremely short heating time, the desoldering iron can easily handle jobs that would have been difficult in the past, including desoldering high mass PCBs.
User-friendly handling An ergonomically-shaped Softgrip handle with integrated finger switch makes for efficient operation. The short distance between the solder cartridge and the Softgrip handle prevents the tool from twisting while held in the hand.
No tedious cleaning The new, extended nozzle shaft prevents the suction tube sticking. Since the suction channel has also been replaced, the once tedious and time-consuming task of cleaning the tool is now a thing of the past.
Vacuum run-on A vacuum run-on time can be set to prevent the suction pump blocking.
Quick replacement Thanks to ingenious mountings, the suction nozzle and solder cartridge can be changed quickly and easily - without the risk of burning or tricky replacement work.
2 models are available The WXDP 120 is designed for horizontal operation and the WXDV 120 for vertical operation.

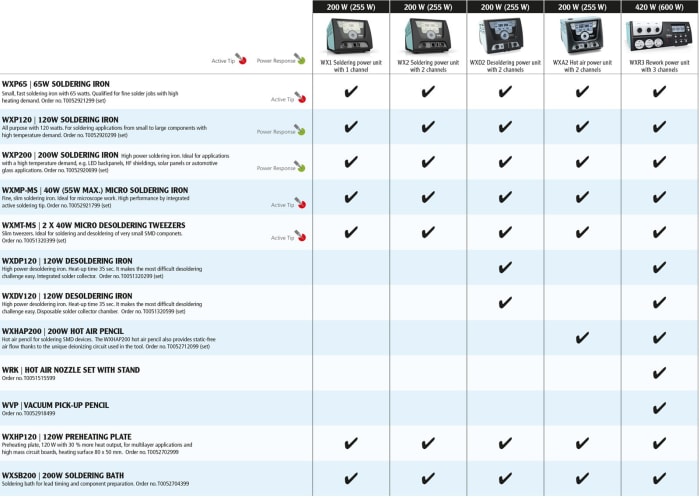

The Weller WXD2020N is compatible with several different types of soldering irons, desoldering irons, tweezers, fume extractors and much more. Please click the links below for more information:
