| Specifications |
z30 Series Detector |

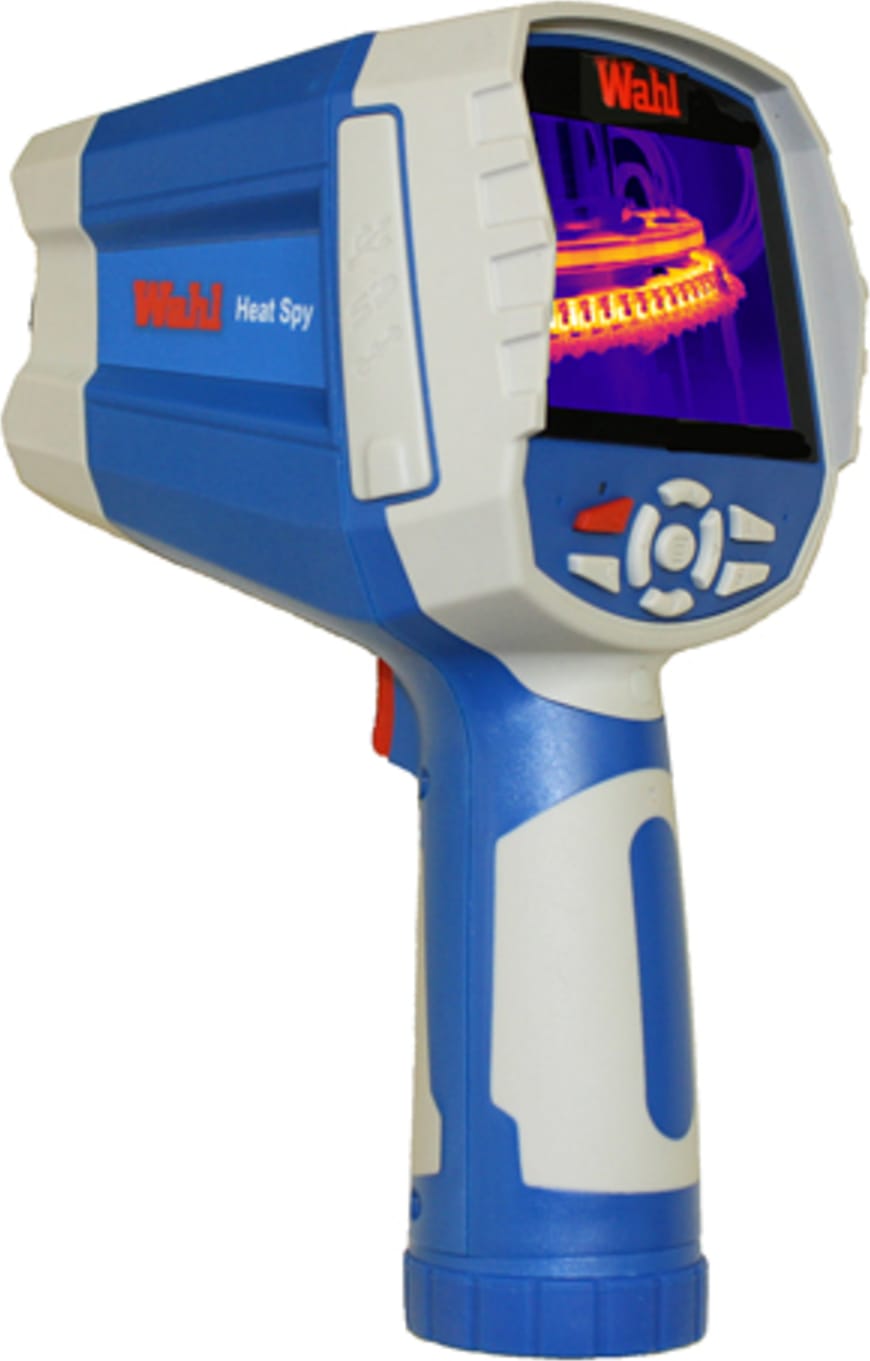

z50 Series Inspector |
| UPGRADE Model |
Upgrade to a z50 Inspector - in the Field! |
Full Feature Series |
| Measurement Range |
-4° to 356°F (-20° to 180°C) |
| UPGRADE to High Temperature |
212° to 1112°F (100° to 600°C) (User Upgradeable in the Field) |
| Temperature Accuracy |
Greater of ± 2% of reading or ± 2°C |
| Temperature Scale |
User Selectable °C, °F, and K |
| Temperature Cursors |
1 Hot Seeking, 1 Cold Seeking, 2 Adjustable |
| Field of View |
17.5° x 13° |
| Resolution/Pixel Size |
160 X 120 |
| Spectral Range |
8-14µm |
| Thermal Sensitivity |
0.1°C @ 30°C |
| LCD Display |
High Resolution 3.5" Color LCD, 640 x 480 |
| Digital Zoom |
2 X Zoom |
| Frame Rate |
30 Hz |
| Display Color Palettes |
4 Color Palettes: Ironbow; Negative Grayscale; Rainbow Blue-Red; High Contrast Blue-Yellow |
11 Color Palettes: Ironbow; Negative Grayscale; Positive Grayscale; Amber; Hot Metal; Cool Metal; Rainbow Green-Red; Rainbow Blue-Red; Rainbow Black-White; High Contrast Blue-Yellow; and High Contrast Violet-White |
| Image Adjustment |
Auto Ranging / Manual Level and Span / Adjustable Display Brightness Control |
| Languages |
11 Languages: English; Spanish; French; German; Italian; Portuguese; Korean; Japanese; Russian; Simplified Chinese; and Traditional Chinese |
| Laser Pointer |
Class 2 < 1mW / 635nm, Red |
| Self Calibration |
Auto Calibration with Adjustable Time Interval or Push Button Manual |
| Measurement Mode |
Spots, Delta T |
Spots, Areas, Lines, Isotherms, Delta T |
| Number of Measurement Areas |
N/A |
3 |
| Emissivity Range |
Adjustable from 0.01 to 1.00 |
Adjustable from 0.01 to 1.00 with Built-in Emissivity Table |
| T Reflect |
Manual Adjustment |
| T Correct |
N/A |
Manual Adjustment |
| Digital Camera |
N/A |
1.3 Megapixel |
| Thermal/Digital Image |
N/A |
Toggle between Thermal and Digital |
| Alarm |
High Temperature Audible and Visible Alarm |
High Temperature Audible and Visible Alarm Isotherm Visible Alarm |
| UPGRADE Optics |
Wide Angle (35° x 26° FOV), and/or Telephoto (8.75° x 6.5° FOV) (Factory Upgradeable options) |
| Report Analysis Software |
N/A |
Yes |
| Image Storage |
N/A |
2GB SD / Time Stamped |
| Freeze Frame/Save Image |
Freeze Frame only |
Freeze Frame and Save Image, Thermal and/or Digital to SD Card |
| Storage Mode |
N/A |
Manual Single Image Save or Programmable Auto Save to SD Card |
| Voice Annotation |
N/A |
Maximum 45s per image |
| File Format (Thermal) |
N/A |
JPEG plus Temperature in 14 bit data |
| File Format (Visual) |
N/A |
JPEG |
| Video Output |
User Selectable PAL and NTSC |
| Dimensions / Weight (w/o battery) |
Width: 4.5 in. (115mm) x Length: 5.9 in. (150mm) x Height: 9 in. (230mm) / 1.65 lbs (0.75 Kg) |
| Power / Operating Time |
1 Rechargeable Lithium ion Battery / 2 Batteries provide 6.0 plus hours operation |
| Charging System |
External AC Mains Battery Charger included; In Camera Charging with optional AC Battery Charger |
| Ambient Operating Temperature |
5° to 122°F (-15° to 50°C) |
| Storage Temperature |
-4° to 140°F (-20° to 60°C) |
| Humidity |
≤ 90% non-condensing |
| Included Accessories |
Carrying Case; Wrist Strap; Lens Cap; 2 Rechargeable Lithium Ion Batteries; Video Out Cable; AC Mains Battery Charger; Report & Analysis Software; User Manual. 50 Series only: SD Card and Reader. |
| Options |
NIST Traceable Certificate of Conformance; Extended Warranty; Damage Protection Plan; Hands Free Flashlight; Auxillary Charging Pkg includes: Car Charger, AC mains charger, and International Plugs |
