Wahl TM612A Pocket RTD Thermometer

Name: Wahl TM612A Pocket RTD Thermometer
Brand: Wahl
SKU: WahlTM612A
Price: 790.00 USD
Availability: InStock

0 reviews | Model: Wahl TM612A

Compare

TM612A Pocket RTD Thermometer (uses optional RTD Probes ending in TMA )

High accuracy: 0.02% of reading
Very low temperature coefficient: 10 ppm/°C in resistance
Accuracy is maintained even in harsh enviromental conditions
Measurement of 12 RTD types
Display in °C, °F, mV and Ohms
Data recording and Onscreen analysis
Language - 5 user selected languages (English, French, Spanish, German and Italian)
Display - Graphical LCD with adjustable contrast and backlight
Display Resolution - 3 user selectable resolutions (up to 3 decimal places: High, Middle or Low resolution
Date and Time Display - Continuously displayed
Statistics - Maximum, Average, and Minimum are displayed. Reset function allows re-calculating of the values
Hold - Freezes the display
Filter - A filter can be applied to avoid fluctuation of the value

View Product Details

Your Price: $790.00

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

Wahl TM612A Pocket RTD Thermometer

User friendly and robust the Wahl® TM Series Pocket Thermometers have been designed to simplify temperature transmitters and probes maintenance and commissioning. They feature 0.02% Accuracy and measure in Thermocouple and/or RTD’s. Resolution is programmable for better reading by user with up to 1mΩ or 1µV.

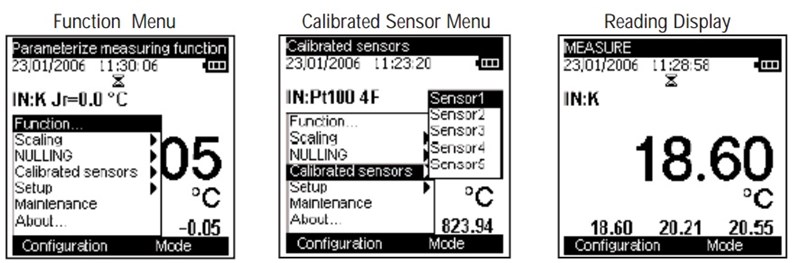

GRAPHIC DISPLAY

TM Series Pocket Thermometers use a graphic display making programming and reading easier.

Optional Accessories: Rechargeable Batteries and Battery Charger, NIST Calibration Certificate, and Carrying Case

Wahl TM612A Pocket RTD Thermometer Specifications

THERMOCOUPLE SPECIFICATIONS

DC VOLTAGE
Function	Range	Resolution	Accuracy / 1yr	Range
IN	±100mV	1µV	0.020%R + 3µV	-10mV / 100mV

TEMPERATURE WITH THERMOCOUPLES
Sensor	IN Range	Resolution	Accuracy/1Yr
K	-250°C to -200°C -200°C to -120°C -120 °C to -50°C -50°C to +1372°C	0.20°C 0.10°C 0.05°C 0.05°C	0.90°C 0.3°C 0.02% R + 0.12°C 0.02% R + 0.11°C
T	-250°C to -200°C -200°C to -50°C -50°C to +400°C	0.2°C 0.05°C 0.05°C	0.80°C 0.25°C 0.02% R + 0.09°C
J	-210°C to -200°C -200°C to -120°C -120°C to +60°C +60°C to +1200°C	0.05°C 0.05°C 0.05°C 0.05°C	0.30°C 0.25°C 0.020% R + 0.11°C 0.020% R + 0.09°C
E	-250°C to -200°C -200°C to -100°C -100°C to +450°C +450°C to +1000°C	0.1°C 0.05°C 0.05°C 0.05°C	0.55°C 0.20°C 0.020% R + 0.07°C 0.020% R + 0.05°C
R	-50°C to +150°C +150°C to +550°C +550°C to +1768°C	0.50°C 0.20°C 0.10°C	0.95°C 0.40°C 0.020% R + 0.30°C
S	-50°C to +150°C +150°C to +550°C +550°C to +1768°C	0.5°C 0.2°C 0.1°C	0.85°C 0.020% R + 0.4°C 0.020% R + 0.3°C
B	+400°C + 900°C +900°C + 1820°C	0.2°C 0.1°C	0.95°C 0.50°C
U	-200°C to -100°C -100°C to +600°C	0.05°C 0.05°C	0.35°C 0.20°C
L	-200°C to -100°C -100°C to +900°C	0.05°C 0.05°C	0.30°C 0.20°C
C	-20°C + 900°C +900°C + 2310°C	0.1°C 0.1°C	0.30°C 0.020% R + 0.15°C
N	-240°C to -190°C -190°C to -110°C -110°C to -0°C +0°C to +1300°C	0.2°C 0.1°C 0.05°C 0.05°C	0.60°C 0.25°C 0.15°C 0.020% R + 0.07°C
Platinum	-100°C to +1400°C	0.05°C	0.3°C
Mo	0°C to +1375°C	0.05°C	0.020% R + 0.10°C
NiMo/NiCo	-50°C to +1410°C	0.05°C	0.020% R + 0.35°C

CJC Accuracy: ±0.3°C
Temperature Coefficient < 10% of Accuracy / °C

RTD SPECIFICATIONS
RESISTANCE
Function	Range	Resolution	Accuracy / 1yr	Range	Notes
IN	400 Ohm	1 mΩ	0.012% R + 10 mΩ	0 Ω to 400 Ω	Automatic detection: 2, 3 or 4 wires
IN	3600 Ohm	10 mΩ	0.012% R + 100 mΩ	0 Ω to 3600 Ω	Automatic detection: 2, 3 or 4 wires
